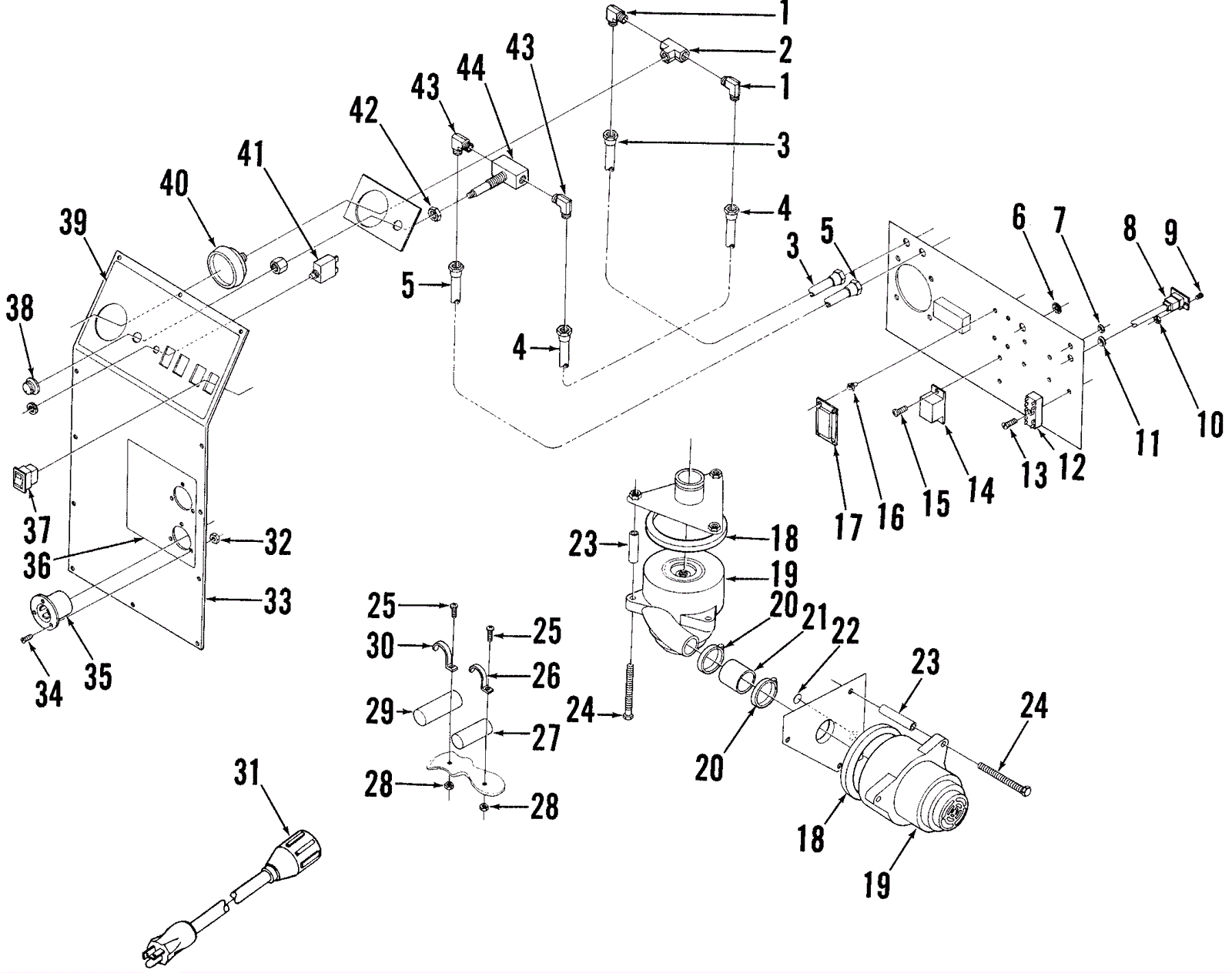

Control Panel Assembly

#PartDescription ReqNotesAvailability
1 170-5171 Male elbow 2
2 172-4125 Tee 1
3 372-0767 Tube assembly (OBSOLETE) 1
4 372-0768 Tube assembly (OBSOLETE) 1
5 372-0769 Tube assembly (OBSOLETE) 1
6 372-0770 Bushing (OBSOLETE) 1
7 172-6091 Strain relief (OBSOLETE) 1
8 372-0771 Receptacle with cord (OBSOLETE) 1
9 372-0772 Screw (OBSOLETE) 2
10 372-0773 Nut (OBSOLETE) 2
11 372-0774 Strain relief (OBSOLETE) 1
12 172-4012 Terminal block 1
13 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling 1
14 372-0775 Relay (OBSOLETE) 1
15 372-0776 Screw (OBSOLETE) 2
16 372-0777 Board support (OBSOLETE) 4
17 372-0778 Liquid level control (OBSOLETE) 1
18 372-0779 Vacuum motor gasket (OBSOLETE) 2
19 372-0780 Vacuum motor (OBSOLETE) 2
20 272-9976 #32 hose clamp SAE 2
21 372-0781 Hose (OBSOLETE) 1
22 172-5024 Ground symbol decal 2
23 372-0782 Spacer (OBSOLETE) 6
24 172-5104 Screw 5/16-18 x 3 truss hex head 6
25 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 2
26 372-0783 Clamp (OBSOLETE) 1
27 172-3008 Capacitor 115V (OBSOLETE) 1
28 372-0707 Nut (OBSOLETE) 2
29 N/A Not available 1 (start capacitor)
30 372-0784 Clamp (OBSOLETE) 1
31 372-0785 Cord set (OBSOLETE) 2
32 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 6
33 372-0729 Electrical panel (OBSOLETE) 1
34 999-0452 Screw 8-32 x 3/8 pan head phillips zinc plated 6
35 372-0786 Flanged inlet (OBSOLETE) 2
36 372-0730 Caution decal (OBSOLETE) 1
37 372-0787 Rocker switch (OBSOLETE) 4 (qty 3 on A20)
38 372-0788 Knob (OBSOLETE) 1
39 372-0789 Control panel decal (OBSOLETE) 1
40 372-0790 Pressure gauge (OBSOLETE) 1
41 372-0791 Circuit breaker (OBSOLETE) 1
42 372-0792 Nut (OBSOLETE) 1
43 272-2060 Male elbow (OBSOLETE) 2
44 372-0794 Needle valve (OBSOLETE) 1
N/S 172-2307 Plug (OBSOLETE) 1 (A20 only)
