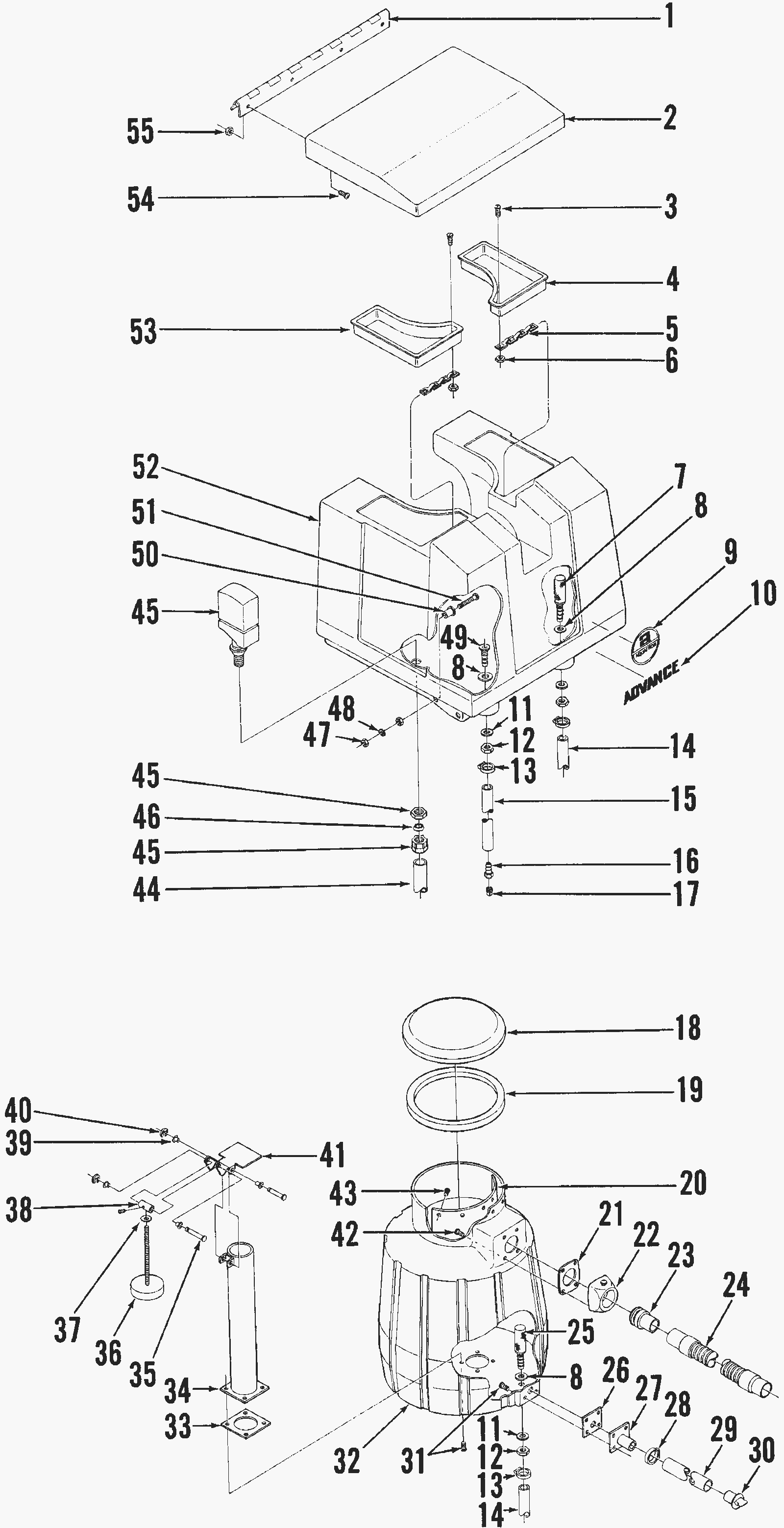

Tank Assembly

#PartDescription ReqNotesAvailability
1 372-0731 Cover hinge (OBSOLETE) 1
2 372-0732 Cover (OBSOLETE) 1
3 372-0733 Screw (OBSOLETE) 2
4 372-0734 Left hand tank cover (OBSOLETE) 1
5 272-9137 24 inch chain (OBSOLETE) 1
6 372-0735 Nut (OBSOLETE) 2
7 372-0736 Screen assembly (OBSOLETE) 1
8 172-0197 Rubber washer 3
9 372-0723 Aquatron decal (OBSOLETE) 1
10 N/A Not available 1
11 999-0349 Washer 5/8 SAE flat 3
12 372-0737 Nut (OBSOLETE) 3 (qty 2 for A20)
13 172-8494 #6 hose clamp SAE 4
14 372-0738 Hose (OBSOLETE) 1
15 372-0739 Hose (OBSOLETE) 2
16 372-0740 Hose barb (OBSOLETE) 1
17 372-0741 Plug (OBSOLETE) 1
18 372-0742 Tank dome (OBSOLETE) 1
19 372-0743 Channel gasket (OBSOLETE) 1
20 372-0744 Deflector (OBSOLETE) 1
21 172-6226 Gasket (OBSOLETE) 1
22 172-6225 Connector assembly 1
23 372-0745 Adapter (OBSOLETE) 1
24 372-0746 Vacuum hose (OBSOLETE) 1
25 372-0747 Screen assembly (OBSOLETE) 1 (A20A only)
26 372-0748 Drain gasket (OBSOLETE) 1
27 372-0749 Tank drain (OBSOLETE) 1
28 997-2005 Hose clamp 1
29 372-0750 Drain tube (OBSOLETE) 1
30 172-0464 Drain plug 1
31 372-0549 Screw #10 x 3/4 stainless steel (OBSOLETE) 8
32 372-0751 Recovery tank (OBSOLETE) 1
33 272-2497 Tank gasket (OBSOLETE) 1
34 372-0752 Tube (OBSOLETE) 1
35 372-0753 Pin (OBSOLETE) 2
36 372-0754 Float assembly (OBSOLETE) 1
37 172-0548 Washer 17/64 x 47/64 flat stainless steel 1
38 372-0755 Pivot rod (OBSOLETE) 1
39 372-0756 Nylon bushing (OBSOLETE) 4
40 172-6079 Retaining ring 2
41 372-0757 Float door (OBSOLETE) 1
42 372-0611 Screw (OBSOLETE) 4
43 372-0758 Screw (OBSOLETE) 5
44 372-0759 Hose (OBSOLETE) 1
45 372-0760 Float valve assembly (OBSOLETE) 1
46 372-0761 Grab ring (OBSOLETE) 1
47 372-2295 Nut 10-32 4
48 372-0762 Washer (OBSOLETE) 2
49 372-0763 Barb adapter (OBSOLETE) 1
50 372-0764 Well nut (OBSOLETE) 2
51 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 2
52 372-0765 Solution tank (OBSOLETE) 1
53 372-0766 Right hand tank cover (OBSOLETE) 1
54 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 4
55 372-0707 Nut (OBSOLETE) 4
