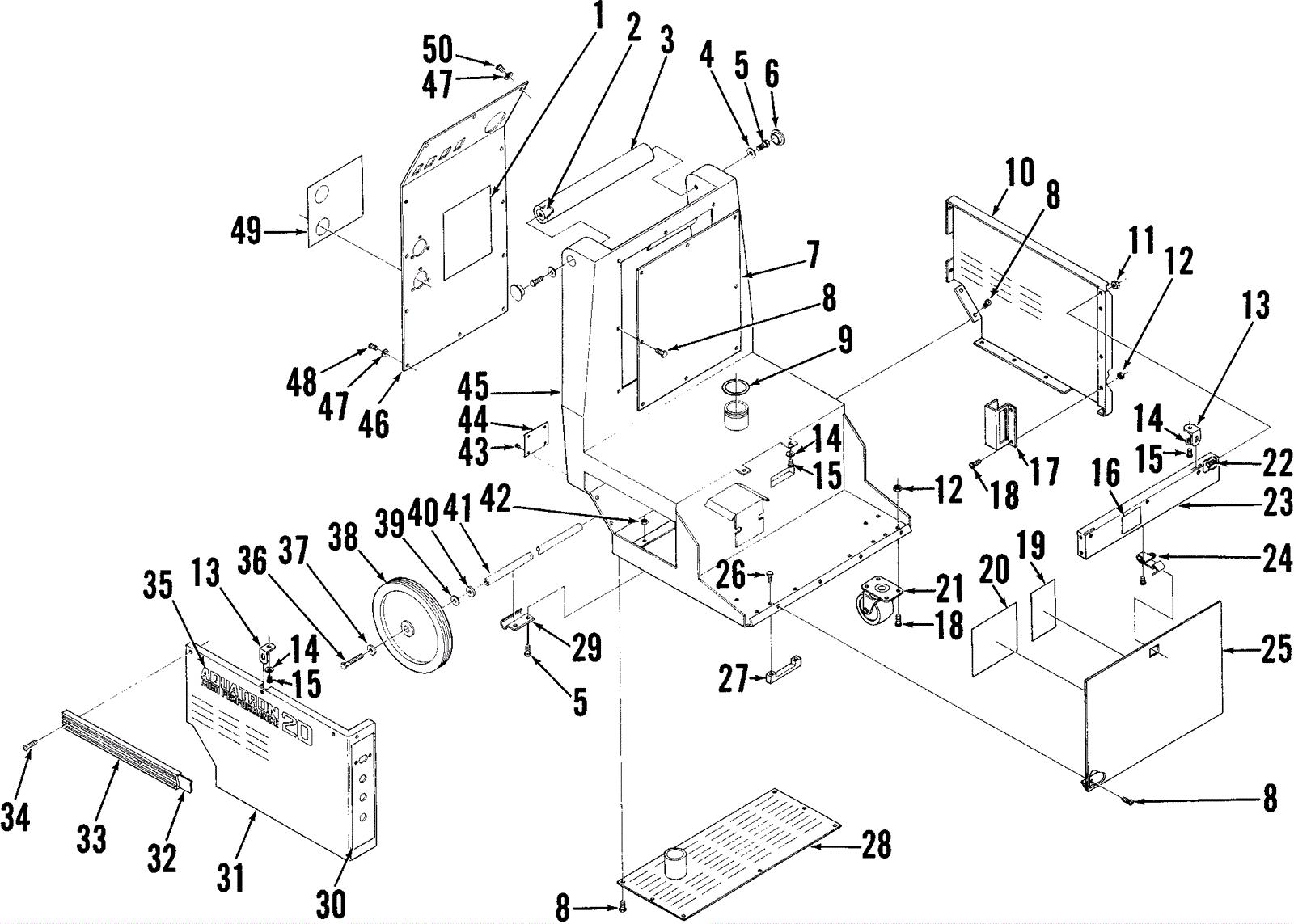

Frame Assembly

#PartDescription ReqNotesAvailability
1a 372-3751 A20A wiring decal (OBSOLETE) 1
1b 372-3752 A20 wiring decal (OBSOLETE) 1
2 372-0701 Handle (OBSOLETE) 1
3 372-0702 Handle grip (OBSOLETE) 1
4 372-0559 Washer 3/8 spring lock (OBSOLETE) 2
5 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 6
6 372-0703 Plug button (OBSOLETE) 2
7 372-0704 Back panel (OBSOLETE) 1
8 372-0537 Screw #10-24 x 3/8 HP-5 hex washer head (OBSOLETE) 35
9 372-0705 O-ring 1
10 372-0706 Left hand panel (OBSOLETE) 1
11 372-0707 Nut (OBSOLETE) 4
12 999-0595 Nut 1/4-20 flange lock serrated zinc plated 10
13 372-0708 Tank brace (OBSOLETE) 4
14 999-0024 Washer 5/16 flat stainless steel 6
15 372-0709 Screw (OBSOLETE) 4
16 372-0710 Chemical control decal (OBSOLETE) 1
17 372-0711 Meter mount (OBSOLETE) 1
18 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated 10
19 372-0712 Information decal (OBSOLETE) 1
20 372-0713 Warning and instruction decal (OBSOLETE) 1
21 272-8474 3 1/2 inch swivel caster 2
22 999-1069 Bolt 10-24 x 1/2 hex head stainless steel 4
23 372-0714 Front panel (OBSOLETE) 1
24 172-2511 Door latch (OBSOLETE) 1
25 372-0715 Door (OBSOLETE) 1
26 372-0716 Screw (OBSOLETE) 4
27 172-9721 Handle (OBSOLETE) 2
28 372-0717 Bottom cover (OBSOLETE) 1
29 372-0718 Axle brace (OBSOLETE) 2
30 372-0719 Plumbing and electrical decal (OBSOLETE) 1
31 372-0720 Right hand panel (OBSOLETE) 1
32 372-0721 Strap (OBSOLETE) 1
33 372-0722 Bumper (OBSOLETE) 1
34 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel 10
35 372-0723 Aquatron decal (OBSOLETE) 2
36 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
37 999-0123 Washer 1/4 SAE flat zinc plated 2
38 372-0724 Wheel (OBSOLETE) 2
39 172-0551 Washer 25/32 x 1 5/8 x 1/64 2
40 372-0725 Spacer (OBSOLETE) 2
41 372-0726 Axle (OBSOLETE) 1
42 272-1467 Nut 3/8-16 hex lock 4
43 172-4322 Screw 4-40 x .25 pan phillips thread form (OBSOLETE) 4
44 372-0727 Name plate (OBSOLETE) 1
45 372-0728 Frame (OBSOLETE) 1
46 372-0729 Electrical panel (OBSOLETE) 1
47 999-1138 Washer #10 finishing stainless steel 12
48 999-1139 Screw 10-24 x 3/8 oval head phillips stainless steel 9
49 372-0730 Caution decal (OBSOLETE) 12
50 999-0421 Screw 10-24 x 1/2 flat head phillips zinc plated 3
