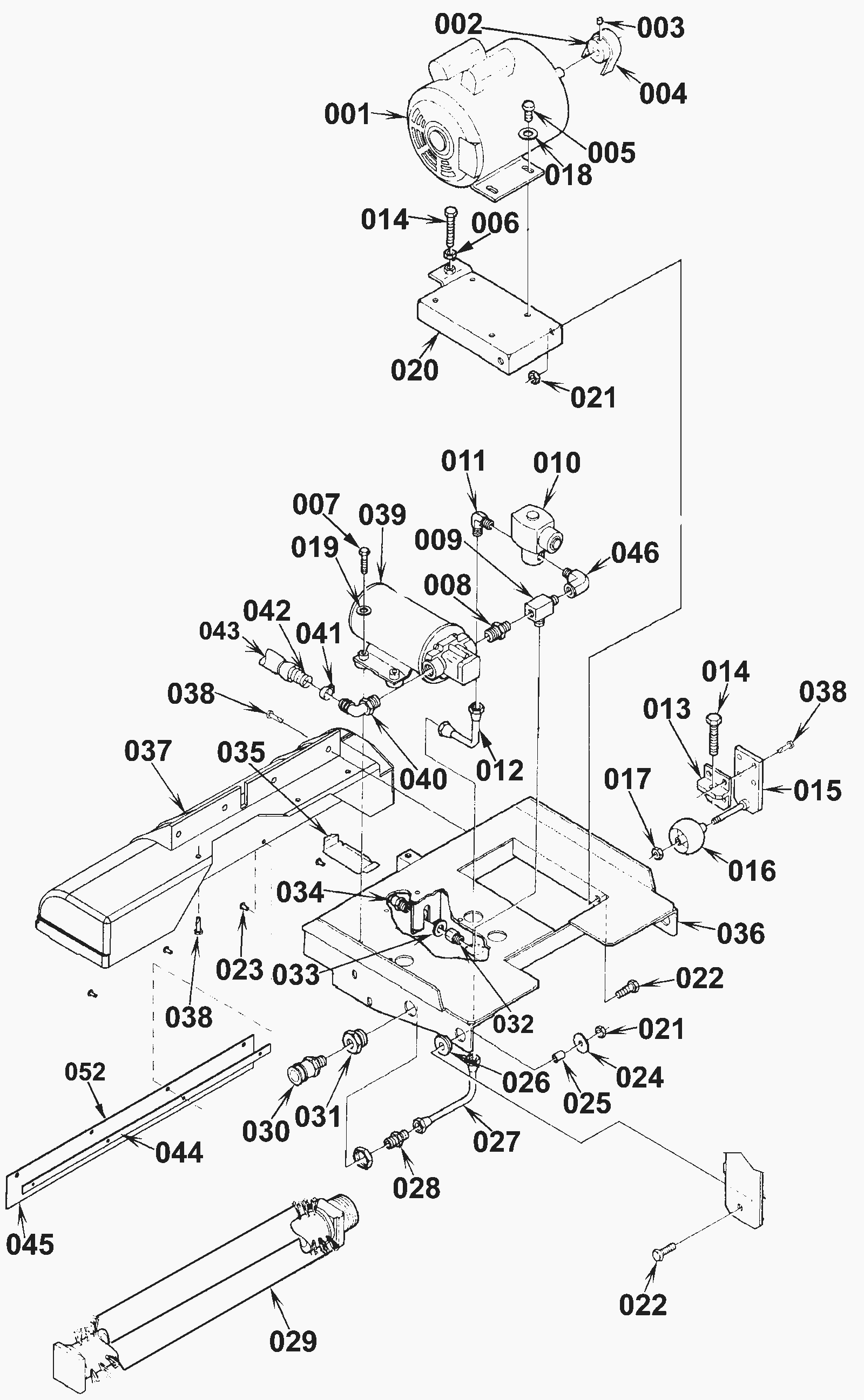

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
272-0906
|
Brush motor (OBSOLETE) |
1 |
|
|
002 |
272-2058
|
Sheave (OBSOLETE) |
1 |
|
|
003a |
999-1840
|
Screw 5/16-18 x 5/16 knurled point socket set alloy steel |
1 |
After SN 1023167 |
|
003b |
999-0096
|
Screw 1/4-20 x 1/4 cup point socket set plain finish |
1 |
After SN 521546 |
|
004 |
172-8420
|
Belt (OBSOLETE) |
1 |
|
|
005 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
4 |
|
|
006a |
999-0430
|
Nut 5/16-18 hex jam plain finish |
1 |
After SN 1023167 |
|
006b |
272-2046
|
Nut 5/16-18 hex zinc plated |
1 |
After SN 521546 |
|
007a |
272-1478
|
Bolt 10-24 x 1 hex thread forming |
4 |
After SN 1023167 |
|
007b |
999-1104
|
Screw 10-24 x 3/4 pan head phillips thread rolling zinc |
4 |
After SN 521546 |
|
008 |
272-2059
|
Reducer |
1 |
|
|
009 |
272-2057
|
Tee (OBSOLETE) |
1 |
|
|
010 |
272-0909
|
Solenoid valve |
1 |
|
|
011 |
272-2060
|
Male elbow (OBSOLETE) |
1 |
|
|
012 |
272-2061
|
Tube assembly |
1 |
|
|
013 |
272-2062
|
Lift bracket weldment |
2 |
|
|
014a |
272-1477
|
Bolt 5/16-18 X 3.00 hex head stainless steel |
3 |
After SN 1023167 |
|
014b |
999-0550
|
Bolt 3/8-16 x 2 hex head stainless steel |
2 |
After SN 521546 |
|
015 |
272-2063
|
Axle weldment |
2 |
|
|
016 |
172-6057
|
Wheel (OBSOLETE) |
2 |
|
|
017a |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
After SN 1023167 |
|
017b |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
6 |
After SN 521546 |
|
018a |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
After SN 1023167 |
|
018b |
N/A
|
Not available |
1 |
(Pivot bracket - after SN 521546) |
|
019a |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
After SN 1023167 |
|
019b |
999-0510
|
Screw 1/4-20 x 1 pan head phillips zinc plated |
4 |
After SN 521546 |
|
020 |
272-2072
|
Motor mount weldment (OBSOLETE) |
1 |
|
|
021a |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
4 |
After SN 1023167 |
|
021b |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
1 |
After SN 521546 |
|
022 |
999-0424
|
Bolt 5/16-18 x 1 hex head stainless steel |
8 |
|
|
023 |
172-0443
|
Nylon rivet (OBSOLETE) |
4 |
After SN 1023167 |
|
024a |
272-1835
|
Washer flat |
4 |
After SN 1023167 |
|
024b |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
4 |
After SN 521546 |
|
025 |
172-0068
|
Bushing |
2 |
|
|
026 |
272-2065
|
Flange bearing |
2 |
|
|
027 |
272-2066
|
Tube assembly |
1 |
|
|
028 |
272-2067
|
Adapter |
1 |
|
|
029a |
272-2575
|
Brush assembly (OBSOLETE) |
1 |
Assembly includes 029b thru 029f |
|
029b |
172-4046
|
Poly-V sheave |
1 |
|
|
029c |
172-4041
|
Right bearing block |
1 |
|
|
029d |
172-4045
|
Left bearing block |
1 |
|
|
029e |
172-4043
|
Ball bearing |
1 |
|
|
029f |
172-0249
|
Bottom bearing |
1 |
|
|
030 |
991-8156
|
Quick disconnect socket female to QD30 |
1 |
|
|
031 |
272-0406
|
Adapter bulk head 1/4 |
1 |
|
|
032 |
272-2069
|
Female adapter |
1 |
|
|
033a |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
After SN 1023167 |
|
033b |
999-0187
|
Washer 1/2 flat plain finish |
2 |
After SN 521546 |
|
034 |
272-0149
|
Spray nozzle (OBSOLETE) |
1 |
|
|
035 |
172-4047
|
Guard (OBSOLETE) |
1 |
|
|
036 |
272-2070
|
Brush bracket weldment (OBSOLETE) |
1 |
|
|
037a |
272-9140
|
Drilled brush housing (OBSOLETE) |
1 |
After SN 1023167 |
|
037b |
272-2071
|
Brush housing kit (OBSOLETE) |
1 |
After SN 521546 |
|
038 |
999-0275
|
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
15 |
|
|
039 |
272-0907
|
Pump assembly |
1 |
|
|
040 |
172-4056
|
90 degree barbed elbow |
1 |
|
|
041 |
997-2002
|
Hose clamp #6 |
1 |
|
|
042 |
272-1038
|
Hose |
1 |
|
|
043a |
N/A
|
Not available |
1 |
(Electrical tube) |
|
043b |
272-2075
|
Flap assembly (OBSOLETE) |
1 |
|
|
044 |
272-2076
|
Strap |
1 |
|
|
045 |
272-2077
|
Flap |
1 |
|
|
046 |
272-2073
|
Elbow |
1 |
|
|
052 |
N/A
|
Not available |
1 |
(Support - after SN 521546) |
|
