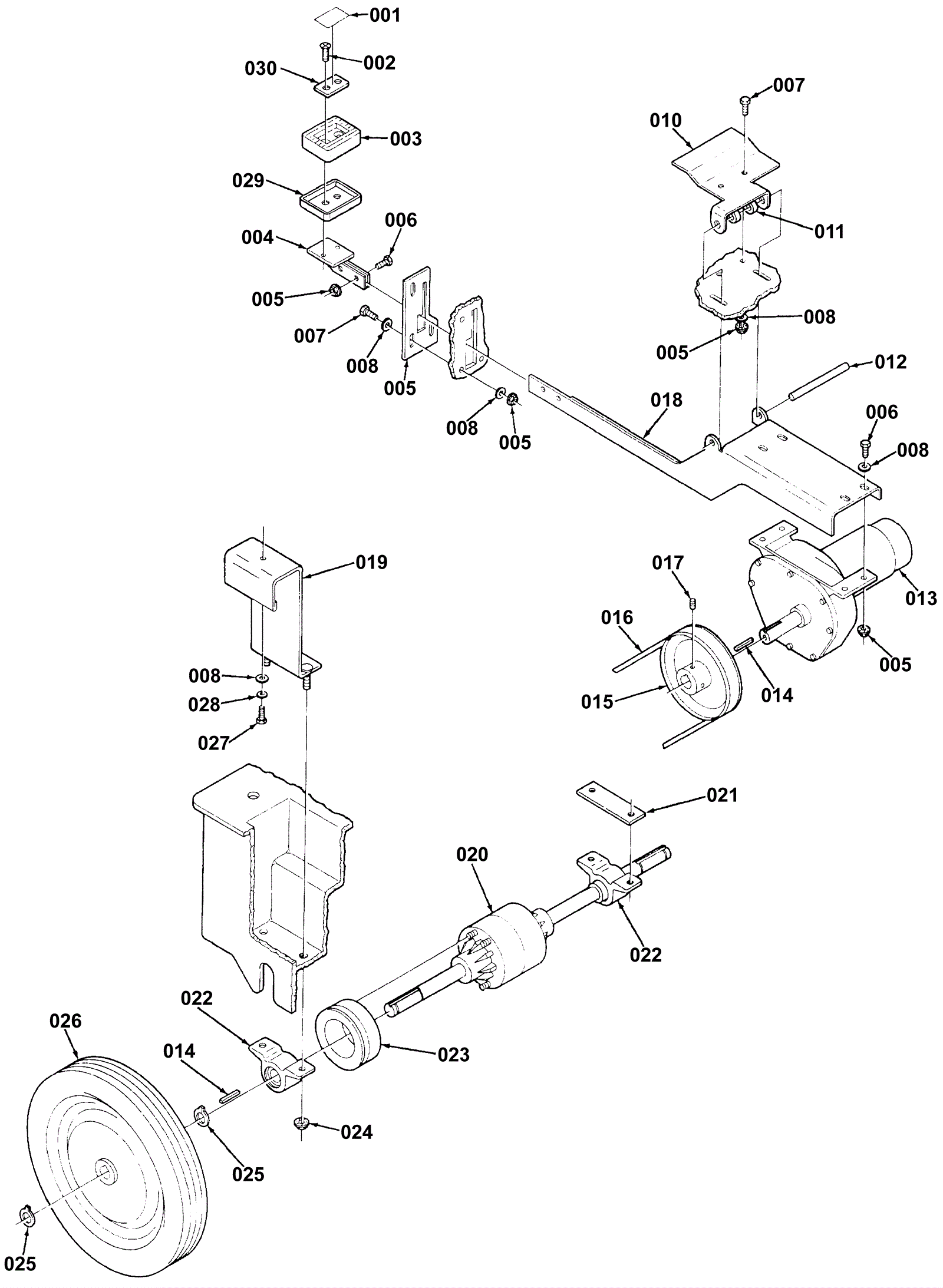

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
N/A
|
Not available |
1 |
Pedal decal |
|
002 |
999-1129
|
Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc |
2 |
after SN 521546 |
|
003 |
N/A
|
Not available |
1 |
Rubber pad |
|
004 |
272-0942
|
Pedal weldment (OBSOLETE) |
1 |
|
|
005 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
11 |
|
|
006 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
6 |
|
|
007 |
999-0297
|
Bolt 1/4-20 x 1 hex head stainless steel |
5 |
|
|
008 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
14 |
|
|
009 |
272-0948
|
Adjusting plate |
1 |
|
|
010 |
N/A
|
Not available |
1 |
(Motor bracket) |
|
011a |
172-0071
|
Collar |
2 |
|
|
011b |
999-0284
|
Screw 10-24 x 3/16 cup point socket set alloy plain finish |
2 |
|
|
012 |
272-0950
|
Motor mount pin (OBSOLETE) |
1 |
|
|
013a |
N/A
|
Not available |
1 |
(Gear motor) |
|
013b |
N/A
|
Not available |
|
(Brush spring kit - after SN 1023167) |
|
014 |
172-4579
|
Square keyway |
3 |
|
|
015 |
272-0951
|
Sheave (OBSOLETE) |
1 |
|
|
016 |
172-7075
|
Poly V belt (OBSOLETE) |
1 |
|
|
017 |
181-0003
|
Screw 1/4-20 x 1/2 socket set lock |
2 |
|
|
018 |
272-0953
|
Motor mount weldment (OBSOLETE) |
1 |
|
|
019 |
272-0954
|
Bolt anchor weldment (OBSOLETE) |
2 |
|
|
020 |
172-6423
|
Differential |
1 |
|
|
021 |
272-0952
|
Spacer (OBSOLETE) |
1 |
|
|
022 |
272-0955
|
Pillow block |
2 |
|
|
023 |
272-0956
|
Sheave (OBSOLETE) |
1 |
|
|
024 |
999-0423
|
Nut 5/16-18 nylon insert lock stainless steel |
4 |
after SN 521546 |
|
025a |
172-0569
|
Retaining ring |
4 |
after SN 521546 |
|
026 |
272-0957
|
Wheel (OBSOLETE) |
2 |
|
|
027 |
999-0334
|
Bolt 1/4-20 x 3/4 inch hex head stainless steel |
2 |
after SN 521546 |
|
028 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
2 |
after SN 521546 |
|
029 |
N/A
|
Not available |
1 |
Pedal cup |
|
030 |
172-0358
|
Plate (OBSOLETE) |
1 |
|
|
031 |
272-1983
|
Rubber pedal pad |
1 |
after SN 1023167 |
|
