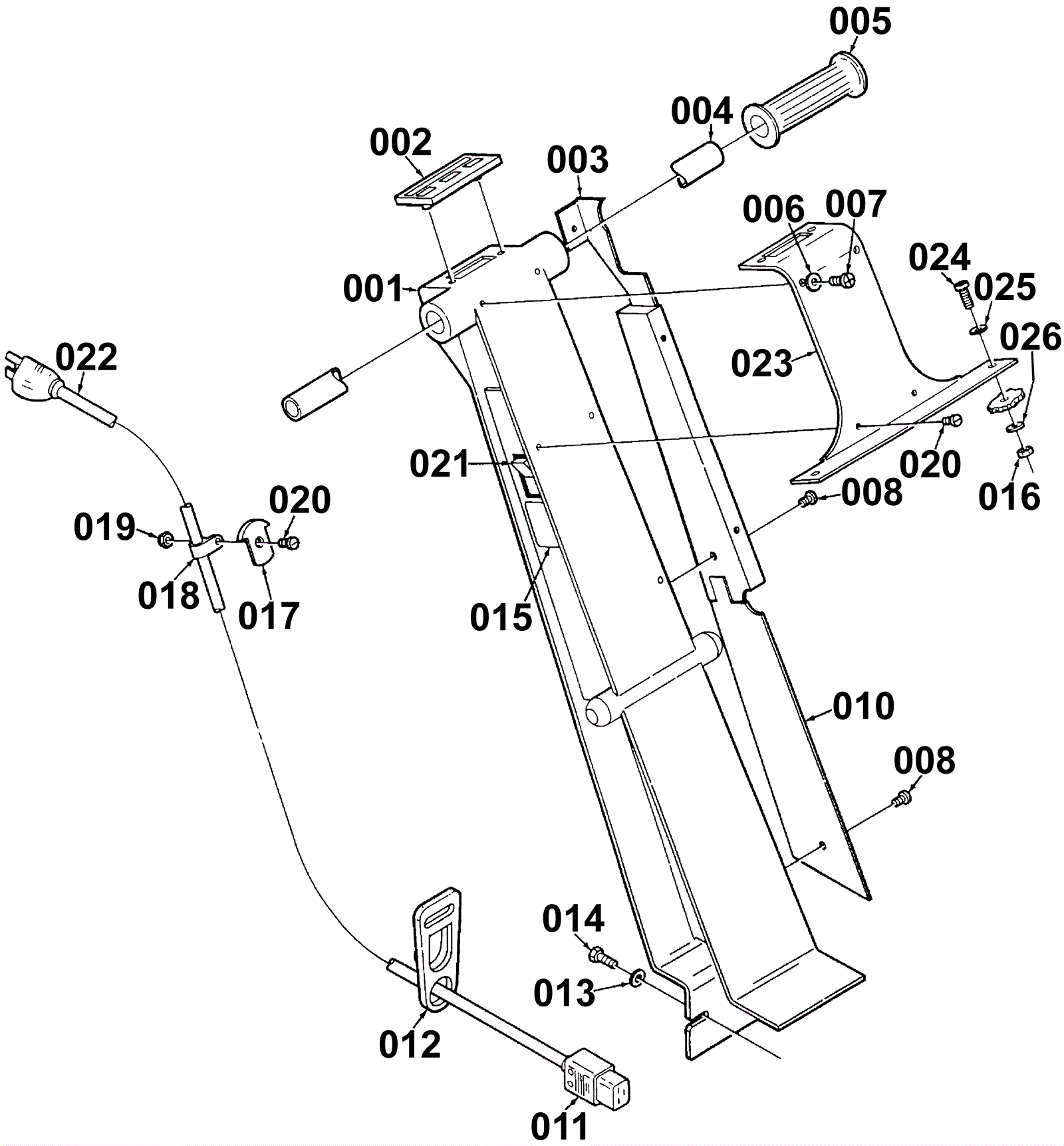

AQUAMATIC SELECTRIC Handle Assembly - After SN 521546

#PartDescriptionPriceReqNotesAvailability
001 272-0928 Control handle (OBSOLETE) $616.44 1 usually ships 1-5 days
002a 272-0910 Membrane switch assembly $424.07 1 Includes 002b-002d usually ships 16-41 days
002b 272-0929 Membrane switch $460.35 1 usually ships 1-5 days
002c 272-0930 Membrane switch bracket $37.43 1 usually ships 1-5 days
002d 172-6058 Nut stud (OBSOLETE) $8.83 2 usually ships 1-5 days
003 N/A Not available Call for price 1 (Upper handle panel) usually ships 3-26 days
004 272-0932 Handle tube (OBSOLETE) $209.22 1 usually ships 1-5 days
005a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
005b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
006 999-0123 Washer 1/4 SAE flat zinc plated $0.99 2 ships same day
007 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 2 ships same day
008 181-1165 Screw 8-15 x 1/2 pan head phillips $12.31 2 usually ships 16-41 days
010 N/A Not available Call for price 1 (Lower handle panel) usually ships 3-26 days
011 272-0878 Cord connector (OBSOLETE) $115.59 usually ships 16-41 days
012 172-4023 Strain relief $12.05 1 usually ships 16-41 days
013 172-0548 Washer 17/64 x 47/64 flat stainless steel $10.85 2 usually ships 16-41 days
014 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 2 ships same day
015 172-5382 Power decal (OBSOLETE) $26.07 1 usually ships 1-5 days
016 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
017 272-0934 Cord mount $10.52 1 usually ships 16-41 days
018 181-0978 Cable clamp $12.31 1 usually ships 16-41 days
019 999-1035 Nut 8-32 acorn stainless steel $1.43 8 ships same day
020 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 6 ships same day
021 172-4013 Rocker switch $64.53 1 usually ships 16-41 days
022a 172-7076 14/3 power cord 75 ft (OBSOLETE) $235.68 1 Includes 011-012 usually ships 16-41 days
022b N/A Not available Call for price 1 Power cord 100v (product is obsolete) Includes 011-012 usually ships 3-26 days
023 272-0935 Handle plate (OBSOLETE) $56.43 1 usually ships 1-5 days
024 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel $1.76 2 ships same day
025 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 2 ships same day
026 172-2208 Sealing washer $10.85 2 usually ships 16-41 days
