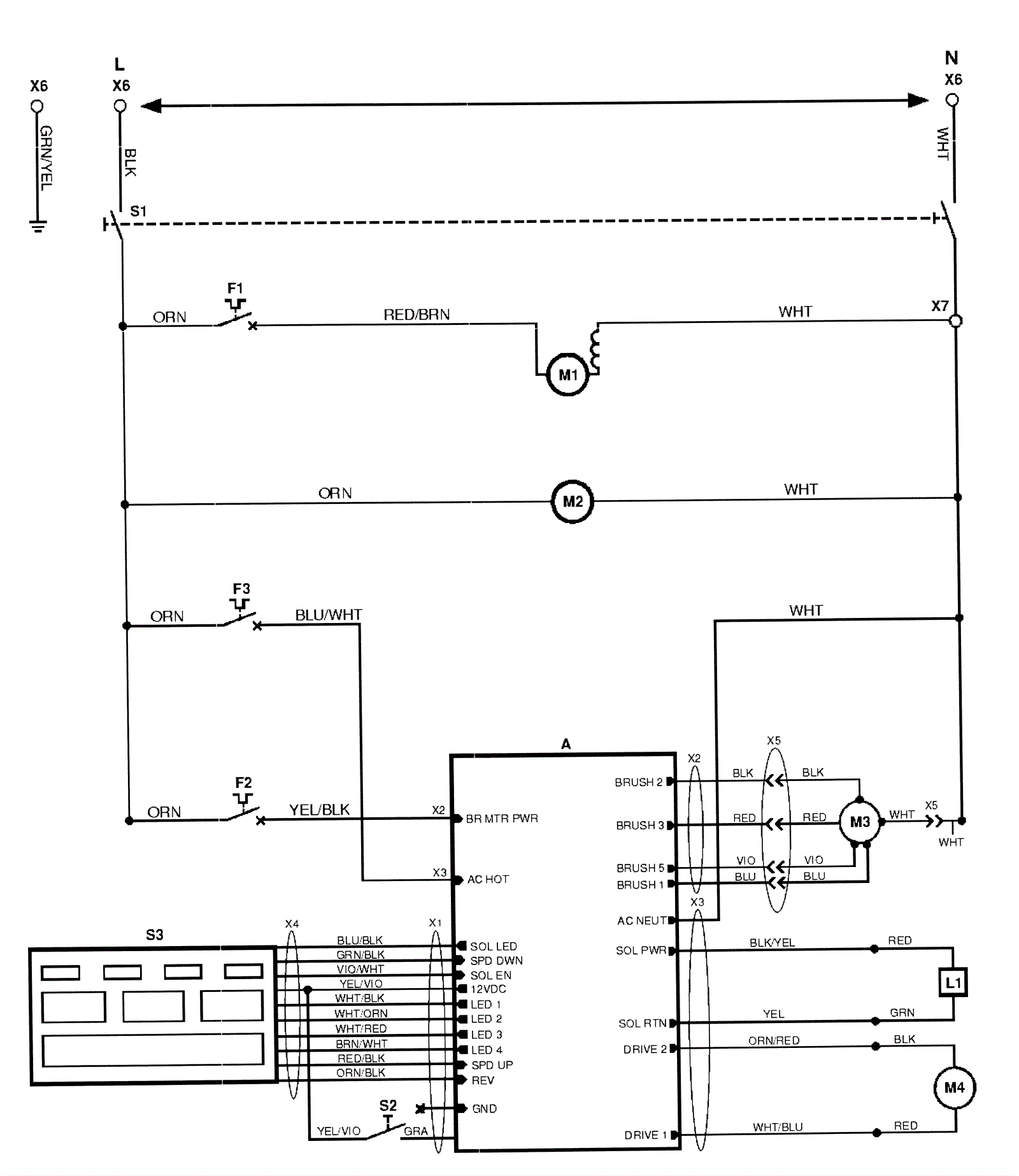

| # | Part | Description |
Req | Notes | Availability |
|---|
A |
272-9127
|
Control assembly (OBSOLETE) |
1 |
|
|
F1 |
172-4020
|
13 amp circuit breaker (OBSOLETE) |
1 |
|
|
F2 |
272-1692
|
Circuit breaker |
1 |
|
|
F3 |
272-0904
|
Circuit breaker |
1 |
|
|
L1 |
272-0909
|
Solenoid valve |
1 |
|
|
M1 |
172-7027
|
120V vacuum motor |
1 |
|
|
M2 |
272-0907
|
Pump assembly |
1 |
|
|
M3 |
272-0906
|
Brush motor (OBSOLETE) |
1 |
|
|
M4 |
N/A
|
Not available |
1 |
(Gear motor) |
|
N/S |
N/A
|
Not available |
1 |
(Wiring harness) |
|
N/S |
N/A
|
Not available |
1 |
|
|
N/S |
172-4028
|
Carbon brush set for motor ( set of 2 ) |
1 |
|
|
N/S |
272-3408
|
Wiring harness (OBSOLETE) |
1 |
|
|
S1 |
N/A
|
Not available |
1 |
(Brush spring kit) |
|
S2 |
172-4013
|
Rocker switch |
1 |
|
|
S3 |
172-2857
|
Nut (OBSOLETE) |
1 |
|
|
X1 |
172-8257
|
Snap switch |
1 |
|
|
X2 |
272-0910
|
Membrane switch assembly |
1 |
|
|
X3 |
N/A
|
Not available |
1 |
|
|
X4 |
N/A
|
Not available |
1 |
|
|
X5 |
272-3406
|
6 Circuit cap (OBSOLETE) |
1 |
|
|
