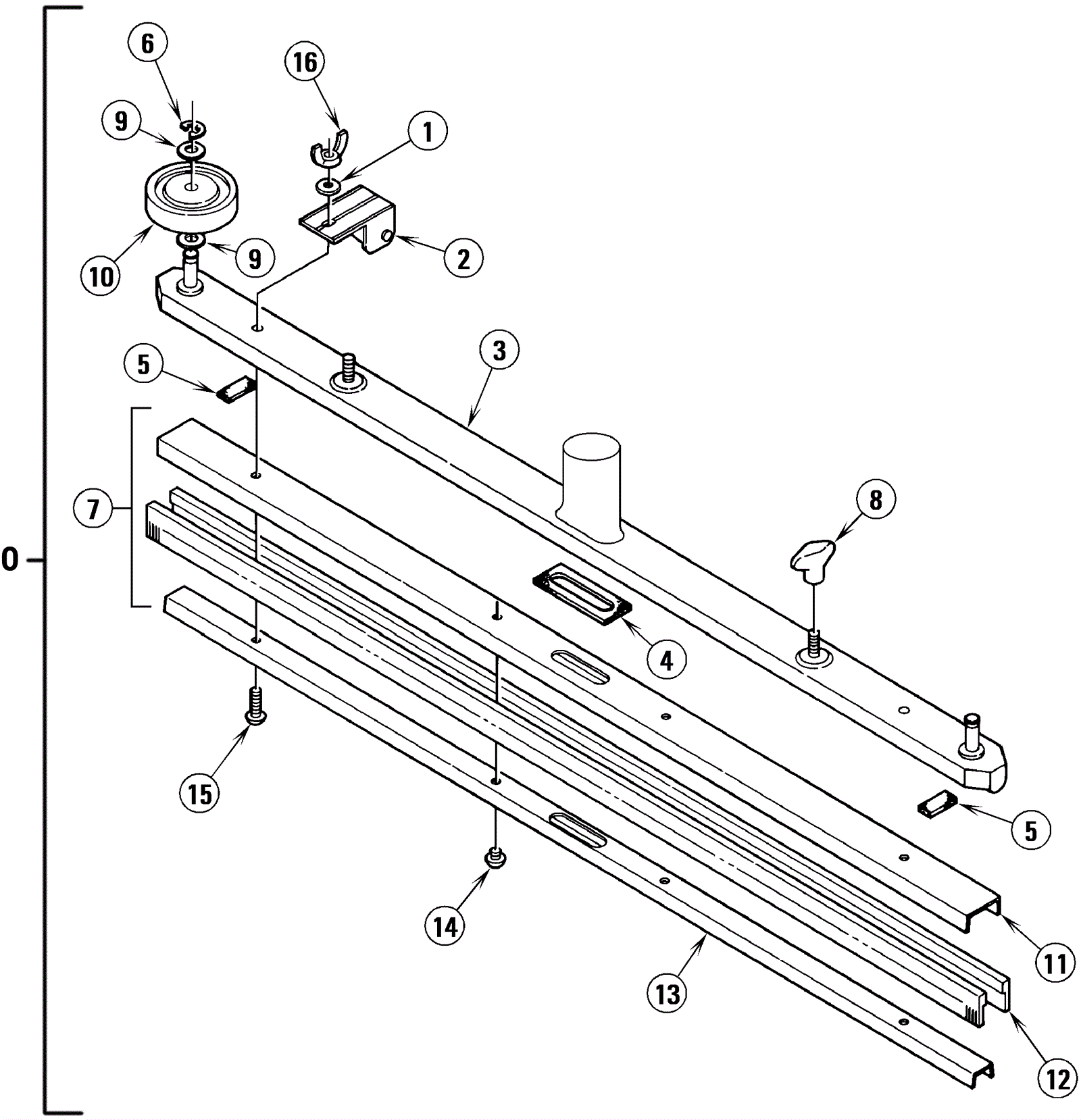

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
172-1385
|
12 inch squeegee assembly (OBSOLETE) |
1 |
(includes 1-10) |
|
0b |
172-1388
|
15 inch squeegee assembly (OBSOLETE) |
1 |
(includes 1-10) |
|
0c |
272-0255
|
18 inch squeegee assembly (OBSOLETE) |
1 |
(includes 1-10) |
|
1 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
2 |
172-0276
|
Roller assembly (OBSOLETE) |
2 |
|
|
3a |
172-1396
|
12 inch channel weldment (OBSOLETE) |
1 |
|
|
3b |
172-1397
|
15 inch channel weldment |
1 |
|
|
3c |
172-1398
|
18 inch channel weldment (OBSOLETE) |
1 |
|
|
4 |
172-0238
|
Gasket |
1 |
|
|
5 |
172-0275
|
Gasket |
2 |
|
|
6 |
172-0315
|
Retaining ring |
2 |
|
|
7a |
172-1386
|
12 inch squeegee cartridge (OBSOLETE) |
1 |
(includes 11-16) |
|
7b |
172-1389
|
15 inch squeegee cartridge (OBSOLETE) |
1 |
(includes 11-16) |
|
7c |
172-8388
|
18 inch squeegee cartridge (OBSOLETE) |
1 |
(includes 11-16) |
|
8 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
9 |
172-0404
|
Washer 25/64 x 5/8 x 1/16 flat |
4 |
|
|
10 |
172-0274
|
Guide wheel |
2 |
|
|
11a |
172-1399
|
12 inch channel (OBSOLETE) |
1 |
|
|
11b |
172-1400
|
15 inch channel (OBSOLETE) |
1 |
|
|
11c |
N/A
|
Not available |
1 |
(18 inch channel) |
|
12a |
172-1387
|
12 inch squeegee blade |
2 |
|
|
12b |
172-1390
|
15 inch squeegee blade (OBSOLETE) |
2 |
|
|
12c |
172-1391
|
18 inch squeegee blade (OBSOLETE) |
2 |
|
|
13a |
172-1401
|
12 inch retainer (OBSOLETE) |
1 |
|
|
13b |
172-1402
|
15 inch retainer (OBSOLETE) |
1 |
|
|
13c |
172-1403
|
18 inch retainer |
1 |
|
|
14 |
999-0343
|
Screw 1/4-20 x 1/4 pan head phillips stainless steel |
2 |
|
|
15 |
999-0342
|
Screw 1/4-20 x 1 pan head phillips stainless steel |
2 |
|
|
16 |
999-1948
|
Nut 1/4-20 wing lock |
2 |
|
|
