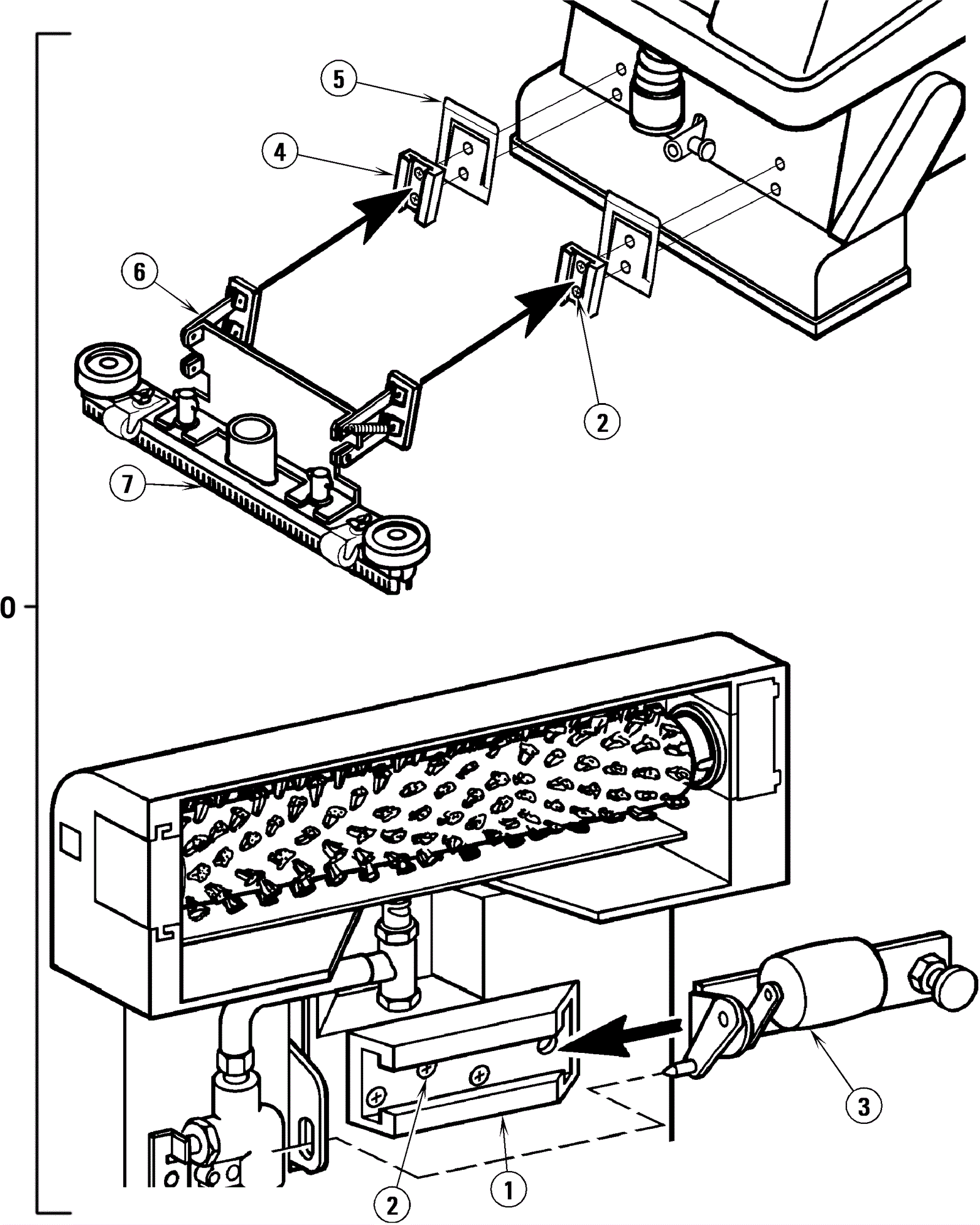

| # | Part | Description |
Req | Notes | Availability |
|---|
0a |
172-1376
|
12 inch hard floor kit (OBSOLETE) |
1 |
|
|
0b |
172-1377
|
15 inch squeegee assembly (OBSOLETE) |
1 |
|
|
0c |
172-7574
|
18 inch hard floor kit (OBSOLETE) |
1 |
|
|
1 |
172-1378
|
Channel (OBSOLETE) |
1 |
|
|
2 |
172-1379
|
Screw 1/4-20 x 3/8 flat head phillips |
7 |
|
|
3 |
172-1380
|
Carriage assembly (OBSOLETE) |
1 |
|
|
4 |
172-1381
|
Channel (OBSOLETE) |
2 |
|
|
5 |
172-1382
|
Clip (OBSOLETE) |
2 |
|
|
6a |
172-1383
|
Squeegee mount assembly (OBSOLETE) |
1 |
|
|
6b |
172-1384
|
Spring |
4 |
|
|
7a |
172-1385
|
12 inch squeegee assembly (OBSOLETE) |
1 |
|
|
7b |
172-1386
|
12 inch squeegee cartridge (OBSOLETE) |
1 |
|
|
7c |
172-1387
|
12 inch squeegee blade |
2 |
|
|
7d |
372-0700
|
15 inch squeegee assembly (OBSOLETE) |
1 |
|
|
7e |
172-1389
|
15 inch squeegee cartridge (OBSOLETE) |
1 |
|
|
7f |
172-1390
|
15 inch squeegee blade (OBSOLETE) |
2 |
|
|
7g |
272-0255
|
18 inch squeegee assembly (OBSOLETE) |
1 |
|
|
7h |
172-8388
|
18 inch squeegee cartridge (OBSOLETE) |
1 |
|
|
7i |
172-1391
|
18 inch squeegee blade (OBSOLETE) |
2 |
|
|
7j |
172-0276
|
Roller assembly (OBSOLETE) |
2 |
|
|
