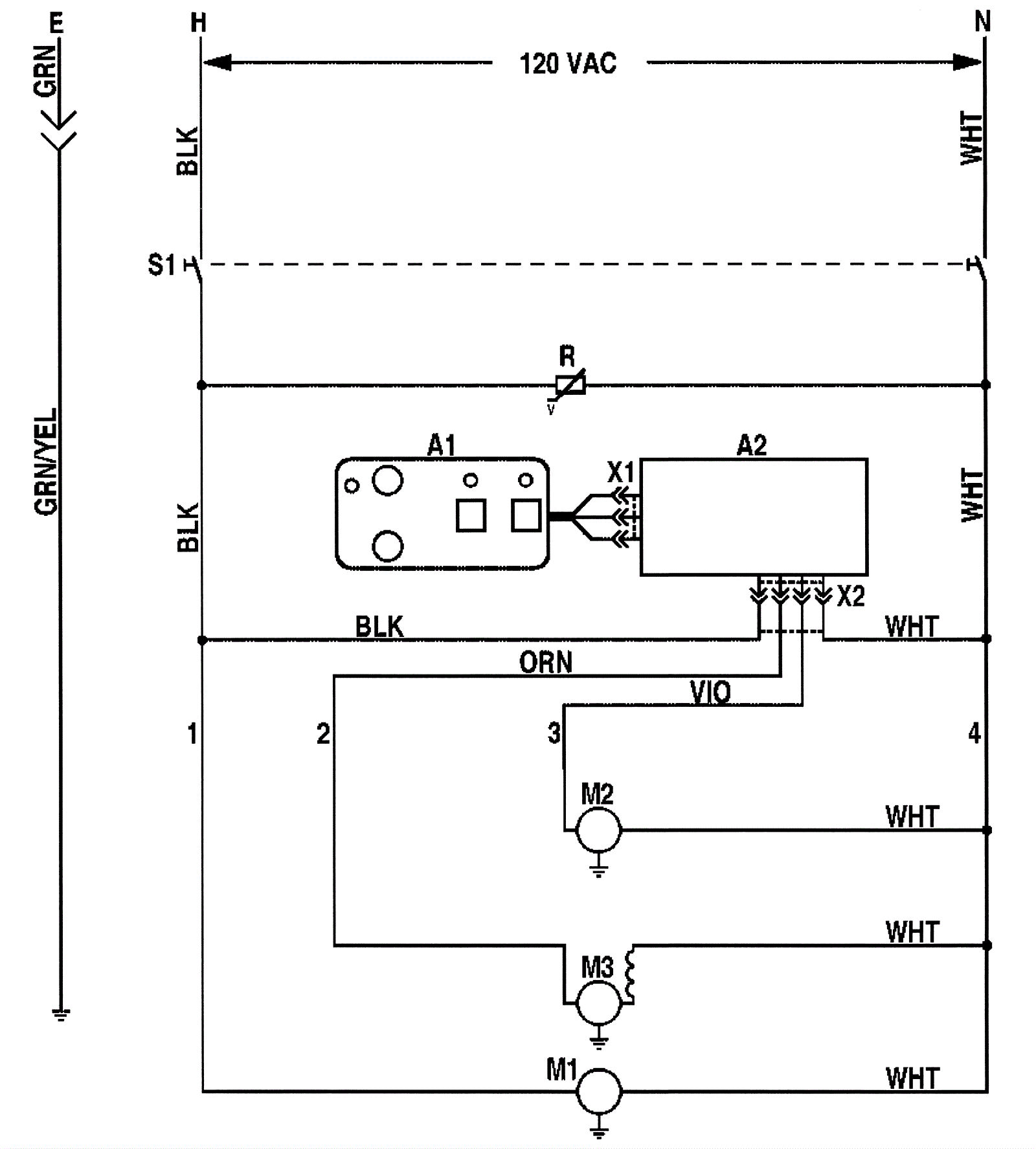

| # | Part | Description |
Req | Notes | Availability |
|---|
A1 |
172-1289
|
Membrane switch (OBSOLETE) |
1 |
|
|
A2a |
172-4160
|
Controller, 120v |
1 |
(Aquaclean 12 and Aquaclean 15 before SN 1052728 and all Aquaclean 18) |
|
A2b |
172-4673
|
Controller 100-115v (OBSOLETE) |
1 |
(Aquaclean 12 and Aquaclean 15 after SN 1052727) |
|
M1 |
172-4148
|
115V pump |
1 |
|
|
M2a |
172-1319
|
Motor 100-115V 1/4 HP (OBSOLETE) |
1 |
(Aquaclean 12 and Aquaclean 15 after SN 1052727) |
|
M2b |
N/A
|
Not available |
1 |
(Aquaclean 12 and Aquaclean 15 before SN 1052728) (brush motor) |
|
M2c |
172-1320
|
Motor 120V 1/3 HP (OBSOLETE) |
1 |
(Aquaclean 18) |
|
M3 |
272-8601
|
120V vacuum motor assembly (OBSOLETE) |
1 |
|
|
R |
172-1374
|
Varistor assembly (OBSOLETE) |
1 |
|
|
S1 |
172-0219
|
Rocker switch |
1 |
|
|
X1 |
N/A
|
Not available |
1 |
(membrane switch connector) |
|
X2 |
N/A
|
Not available |
1 |
(controller connector) |
|
X3 |
N/A
|
Not available |
1 |
(adjuster knob plate) |
|
X4 |
N/A
|
Not available |
1 |
(axle assembly) |
|
X5 |
N/A
|
Not available |
1 |
(belt adjuster plate) |
|
X6 |
N/A
|
Not available |
1 |
(bracket weldment) |
|
X7 |
N/A
|
Not available |
1 |
(pick-up lever) |
|
