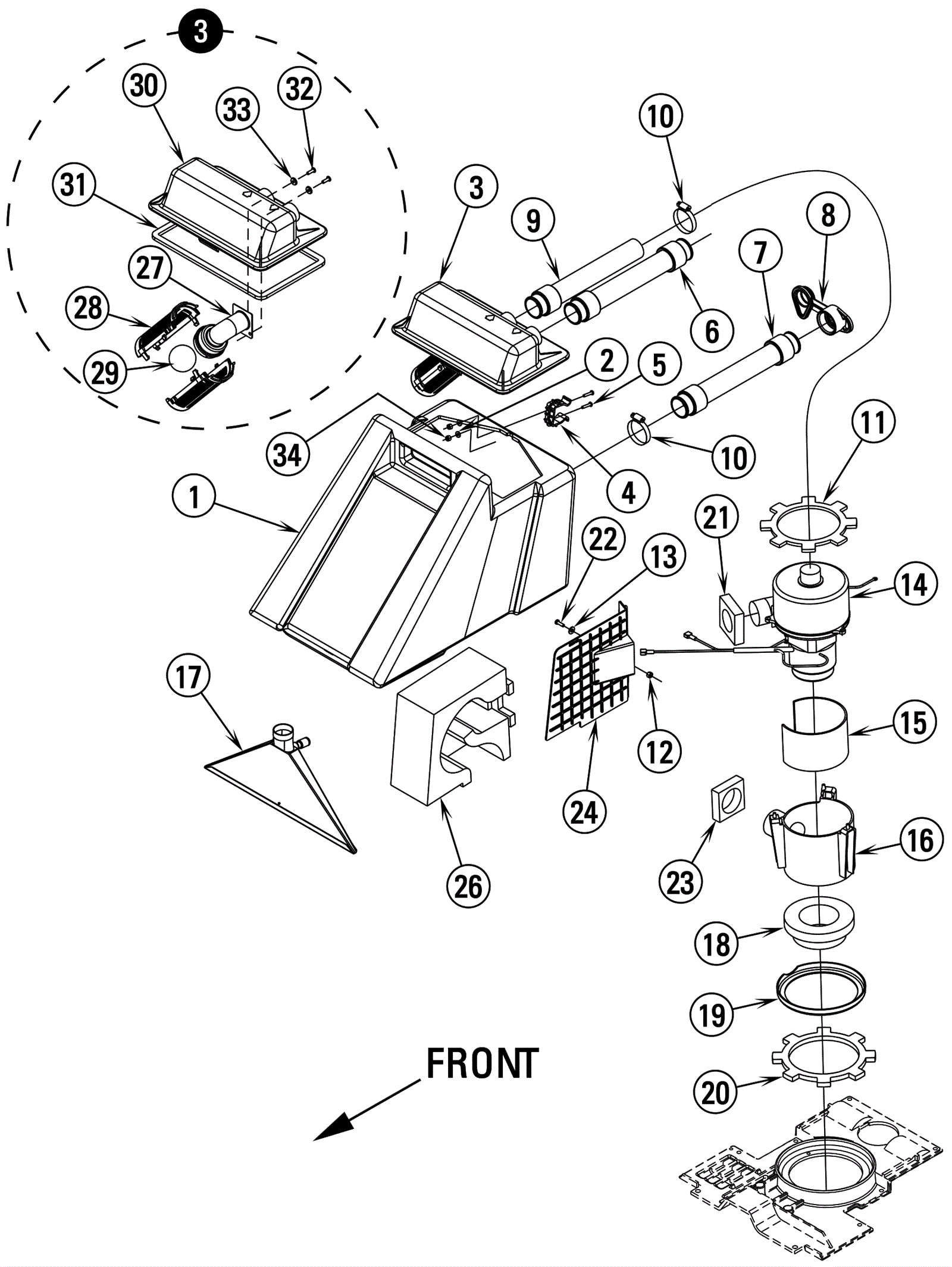

Recovery System Assembly

#PartDescription ReqNotesAvailability
1a 172-1352 Recovery tank 4 gallon (OBSOLETE) 1
1b 172-1353 Recovery tank 6 gallon 1
1c 172-1354 Recovery tank 8 gallon (OBSOLETE) 1
2 999-0266 Washer #8 SAE flat stainless steel 2
3 172-0179 Cover assembly 1 (includes 27-33)
4 272-1159 Plastic clamp 1
5 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel 2
6 172-2120 Hose assembly 1
7 272-1375 Drain hose 1 1/2 inch 1
8 272-1139 Drain plug 1
9 372-0697 Vacuum hose assembly (OBSOLETE) 1
10 172-8493 #24 hose clamp SAE 2
11 172-1356 Vac motor gasket 1
12 999-0442 Nut 10-24 nylon insert lock stainless steel 1
13 999-0998 Washer #10 flat stainless steel 1
14a 272-8601 120V vacuum motor assembly (OBSOLETE) 1
14b 372-0698 230V vacuum motor assembly (OBSOLETE) 1 (double insulated)
14c 372-0699 230V vacuum motor assembly (OBSOLETE) 1 (grounded)
15 172-1357 Acoustical foam 1
16 172-1358 Housing 1
17a 172-1359 Shoe weldment 12 (OBSOLETE) 1
17b 172-1360 Shoe weldment 15 (OBSOLETE) 1
17c 172-1361 Vacuum shoe (OBSOLETE) 1
18 172-1362 Ring (OBSOLETE) 1
19 472-5471 RING VAC MTR. 1
20 172-1364 Vacuum motor gasket 1
21 172-1365 Vacuum outlet gasket 1
22 999-1231 Screw 10-24 x 5/8 hex head stainless steel 1
23 172-1366 Gasket 1
24 172-1367 Muffler wall (OBSOLETE) 1
26 172-1368 Muffler assembly (OBSOLETE) 1
27 172-0195 Float elbow (OBSOLETE) 1
28 172-0517 Float cage half (2 required for full float cage) 2
29 172-0192 Float ball 1
30 172-0006 Recovery tank lid (OBSOLETE) 1
31 172-0190 Recovery tank lid gasket 1
32 999-0110 Screw 10-16 x 1/2 pan head phillips self-drilling 2
33 172-2311 Washer 9/16 2
34 999-0357 Nut 8-32 nylon insert lock stainless steel 2
