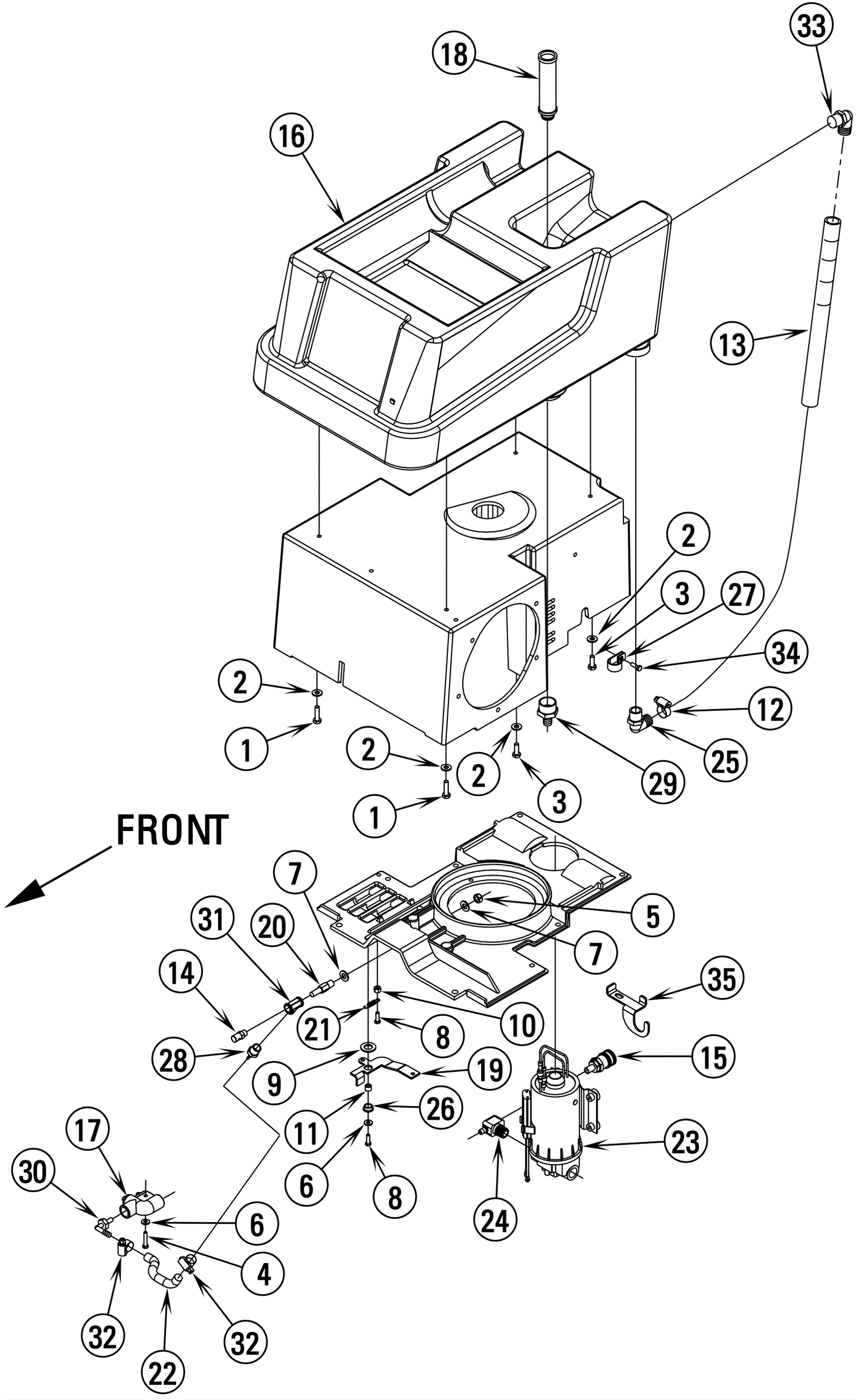

Solution Assembly

#PartDescription ReqNotesAvailability
1 999-0830 Screw 1/4-20 x 1 hex head plain finish 2
2 999-0123 Washer 1/4 SAE flat zinc plated 4
3 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel 2
4 272-1493 Screw 10-24 x1 stainless steel (OBSOLETE) 1
5 999-0423 Nut 5/16-18 nylon insert lock stainless steel 1
6 999-0998 Washer #10 flat stainless steel 2
7 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
8 172-2336 Screw 10-24 x 3/4 hex washer head stainless steel 2
9 172-4548 Washer 33/64 x 15/16 x 1/16 flat 1
10 999-0062 Nut 10-24 hex 1
11 172-2750 Bushing (OBSOLETE) 1
12 997-2004 Hose clamp 1
13 272-1902 Solution gauge hose (OBSOLETE) 1
14 172-1326 Nozzle 1
15 472-5390 SOCKET Q DISCONECT .25 M NPT 1
16a 172-1328 Solution tank 4 gallon (OBSOLETE) 1 (this solution tank is shown without the flow diverter plumbing necessary for hard floor cleaning) (see Flow Diverter Assembly for flow diverter parts; these parts now come standard on these models)
16b 172-1329 Solution tank 8 gallon (OBSOLETE) 1 (this solution tank is shown without the flow diverter plumbing necessary for hard floor cleaning) (see Flow Diverter Assembly for flow diverter parts; these parts now come standard on these models)
16c 172-1330 Solution tank 11 gallon (OBSOLETE) 1 (this solution tank is shown without the flow diverter plumbing necessary for hard floor cleaning) (see Flow Diverter Assembly for flow diverter parts; these parts now come standard on these models)
17 172-4069 Hydraulic valve 1
18 172-1331 Screen 1
19 172-1332 Valve lever (OBSOLETE) 1
20 172-1333 Nozzle adaptor 1
21 172-1334 Extension spring (OBSOLETE) 1
22 172-1335 Hose 1
23a 172-4148 115V pump 1
23b 372-0696 230V pump (OBSOLETE) 1
24 172-4156 Barbed adapter 1
25 172-2322 90 degree elbow barb 3/4 x 3/8 1
26 172-8815 Flanged bearing 1
27 172-2542 P clamp 1
28 172-1336 Barbed adapter 1/4 x 1/8 brass 1
29 172-0260 Screen kit with barb 1
30 172-1337 90 degree barb 1/4 1
31 172-1343 Brass tee 1/8 1
32 170-5169 Hose clamp SAE #4 2
33 172-2100 90 degree barbed elbow 3/4 x 3/8 1
34 999-1231 Screw 10-24 x 5/8 hex head stainless steel 1
35 172-1338 Support bracket 1
N/S 172-4162 By-Pass kit 1 (available for 23a and 23b)
N/S 172-4163 Check valve kit 1 (available for 23a and 23b)
N/S 172-4059 Diaphragm assembly 1 (available for 23a and 23b)
