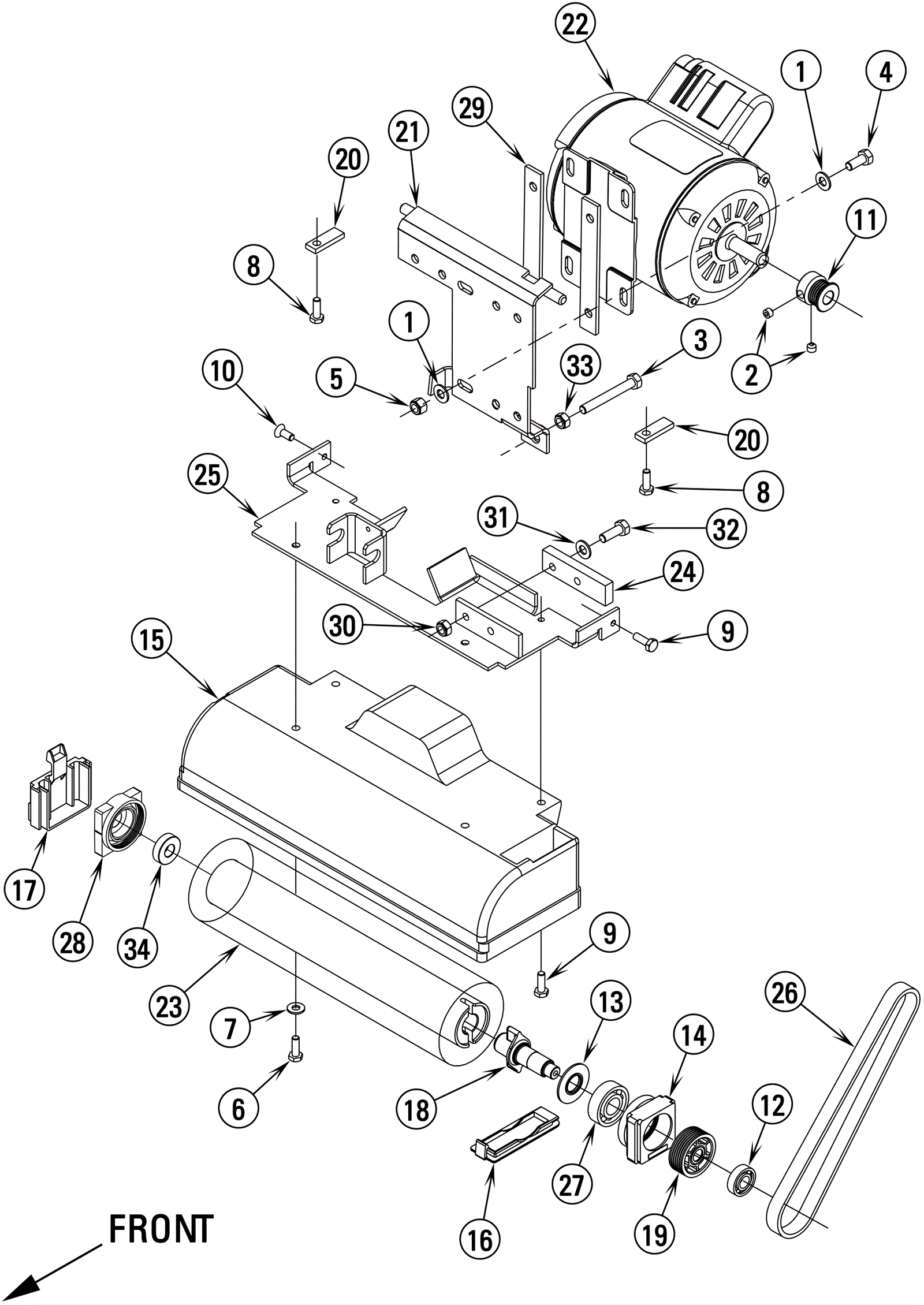

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-0024
|
Washer 5/16 flat stainless steel |
6 |
(qty 8 on Aquaclean 18) |
|
2 |
999-0346
|
Screw 5/16-18 x 1/4 set cup point socket alloy plain finish |
2 |
|
|
3 |
272-8818
|
Screw 5/16-18 x 2 1/2 hex head |
1 |
|
|
4 |
999-0132
|
Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated |
3 |
(qty 4 on Aquaclean 18) |
|
5 |
999-0211
|
Nut 5/16-18 hex nylon insert lock zinc plated |
3 |
(qty 4 on Aquaclean 18) |
|
6 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
2 |
|
|
7 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
8 |
372-0695
|
Screw 1/4-20 x 1 1/4 hex head locking |
2 |
|
|
9 |
372-2236
|
Screw 1/4-20 x 3/4 hex head |
3 |
|
|
10 |
999-1255
|
Screw 1/4-20 x 5/8 flat head phillips thread forming |
1 |
|
|
11 |
172-4048
|
Pulley |
1 |
|
|
12 |
172-4043
|
Ball bearing |
1 |
|
|
13 |
172-0619
|
Washer |
1 |
|
|
14 |
172-4045
|
Left bearing block |
1 |
(left) |
|
15a |
172-1314
|
Brush housing 12 inch (OBSOLETE) |
1 |
|
|
15b |
172-1315
|
Brush housing 15 inch (OBSOLETE) |
1 |
|
|
15c |
172-1316
|
Brush housing 18 inch (OBSOLETE) |
1 |
|
|
16 |
172-4047
|
Guard (OBSOLETE) |
1 |
|
|
17 |
272-2569
|
Brush end cap (OBSOLETE) |
1 |
|
|
18 |
172-4157
|
Drive spindle (OBSOLETE) |
1 |
|
|
19 |
172-4158
|
Poly-V sheave |
1 |
|
|
20 |
172-1317
|
Plate retainer (OBSOLETE) |
2 |
|
|
21 |
172-1318
|
Motor mount weldment (OBSOLETE) |
1 |
|
|
22a |
N/A
|
Not available |
1 |
(motor) (Aquaclean 12 and 15 before SN 1052728) |
|
22b |
172-1319
|
Motor 100-115V 1/4 HP (OBSOLETE) |
1 |
(Aquaclean 12 and 15 after SN 1052727) |
|
22c |
172-1320
|
Motor 120V 1/3 HP (OBSOLETE) |
1 |
Aquaclean 18) |
|
22d |
172-1321
|
Motor 220-240V 1/4 HP (OBSOLETE) |
1 |
(Aquaclean 12 and 15) |
|
23a |
172-4159
|
12 inch brush assembly |
1 |
(includes 28, 34) (standard) |
|
23b |
172-4147
|
15 carpet brush assembly |
1 |
(includes 28, 34) (standard) |
|
23c |
172-2808
|
18 Brush assembly |
1 |
(includes 28, 34) (standard) |
|
24 |
172-1322
|
Isolator (OBSOLETE) |
1 |
|
|
25 |
172-1323
|
Bracket weldment |
1 |
|
|
26 |
172-4049
|
Poly-v belt (OBSOLETE) |
1 |
|
|
27 |
172-0249
|
Bottom bearing |
1 |
|
|
28 |
172-4041
|
Right bearing block |
1 |
|
|
29 |
172-1324
|
Spacer (OBSOLETE) |
2 |
|
|
30 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
2 |
|
|
31 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
2 |
|
|
32 |
999-0830
|
Screw 1/4-20 x 1 hex head plain finish |
2 |
|
|
33 |
172-1325
|
Nut 5/16-18 heavy (OBSOLETE) |
1 |
|
|
34 |
172-4043
|
Ball bearing |
1 |
|
|
