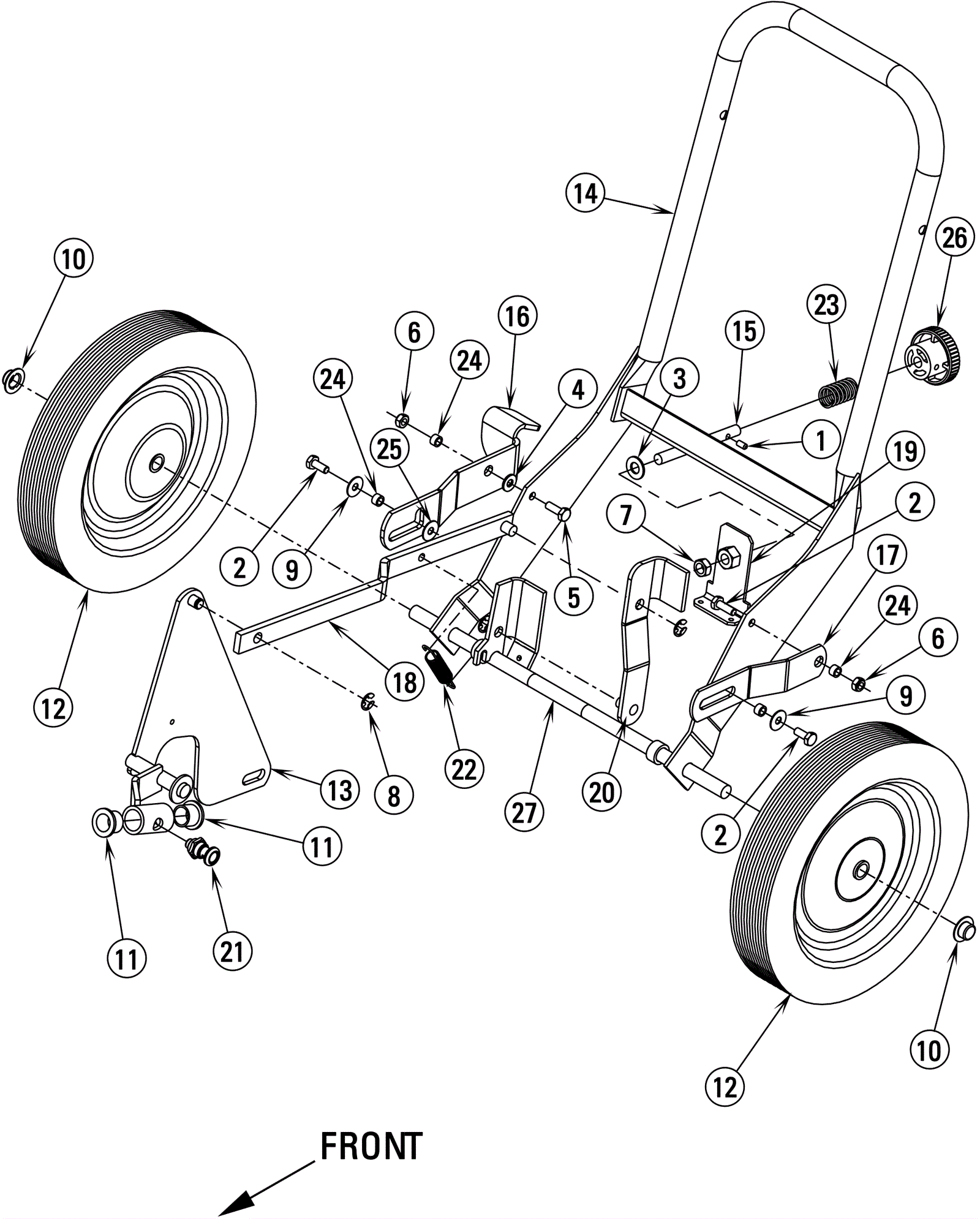

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1121
|
Screw 10-24 x 3/8 set cup point socket black oxide |
1 |
|
|
2 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
3 |
|
|
3 |
999-0120
|
Washer 3/8 SAE flat |
1 |
|
|
4 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
5 |
999-1099
|
Bolt 1/4-20 x 3/4 hex head stainless steel |
1 |
|
|
6 |
999-0152
|
Nut 1/4-20 nylon insert lock zinc plated |
2 |
|
|
7 |
999-0324
|
Nut 3/8-16 nylon insert lock jam zinc plated |
1 |
|
|
8 |
172-4033
|
3/8 inch retaining ring |
3 |
|
|
9 |
172-0369
|
Washer 17/64 x 3/4 x 23/64 flat |
2 |
|
|
10 |
172-4017
|
1/2 inch push cap |
2 |
|
|
11 |
172-4037
|
Flanged bearing (OBSOLETE) |
2 |
|
|
12 |
172-4016
|
10 inch wheel |
2 |
|
|
13 |
172-1296
|
Lever weldment |
1 |
|
|
14 |
172-1297
|
Axle welment (OBSOLETE) |
1 |
|
|
15 |
172-1298
|
Adjusting screw (OBSOLETE) |
1 |
|
|
16 |
172-1299
|
Latch (OBSOLETE) |
1 |
|
|
17 |
172-1300
|
Support plate (OBSOLETE) |
1 |
|
|
18 |
172-1301
|
Linkage weldment (OBSOLETE) |
1 |
|
|
19 |
172-1302
|
Nut plate weldment (OBSOLETE) |
1 |
|
|
20 |
172-1303
|
Lever weldment (OBSOLETE) |
1 |
|
|
21 |
172-0286
|
Lock assembly |
1 |
|
|
22 |
172-0616
|
Spring |
1 |
|
|
23 |
172-1304
|
Spring |
1 |
|
|
24 |
172-0379
|
Bushing |
4 |
|
|
25 |
172-1305
|
Washer |
1 |
|
|
26 |
172-0078
|
Knob |
1 |
|
|
27 |
272-0252
|
Isolator (OBSOLETE) |
1 |
|
|
