| # | Part | Description |
Req | Notes | Availability |
|---|

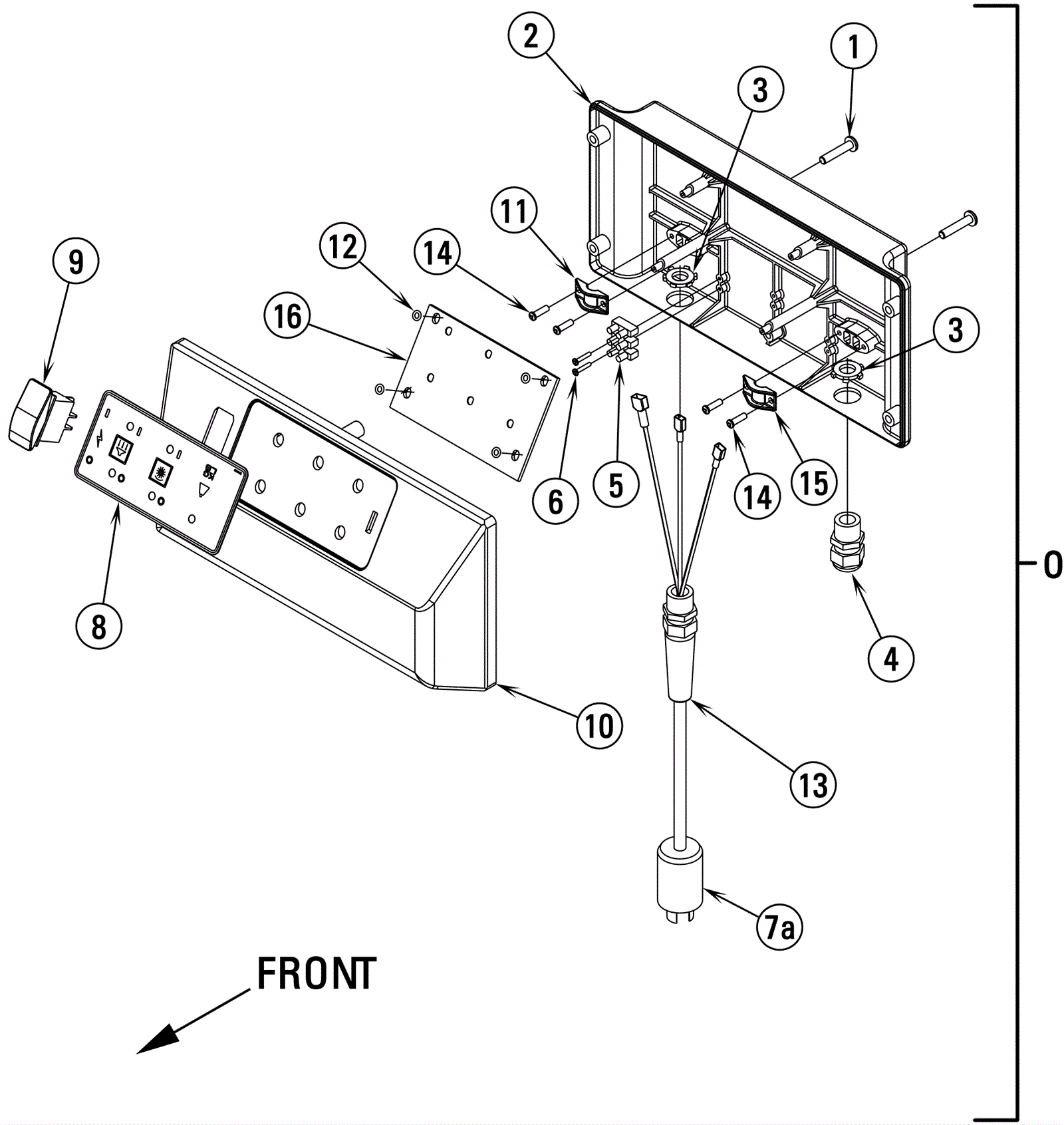

0 |
272-0250
|
Console assembly (OBSOLETE) |
1 |
|
|
1 |
N/A
|
Not available |
2 |
(screw #12 x 1 1/4 pan head plastite) |
|
2 |
172-1284
|
Bottom console (OBSOLETE) |
1 |
|
|
3 |
172-4536
|
Nut 1/2-14 conduit lock |
2 |
|
|
4 |
172-4018
|
Strain relief |
1 |
|
|
5 |
172-4094
|
Terminal block |
1 |
|
|
6 |
172-1285
|
Screw 1/4-20 x 5/8 pan head phillips plastite |
2 |
|
|
7a |
172-1286
|
12/3 pigtail cord (OBSOLETE) |
1 |
(OEM) |
|
7b |
991-9162
|
12/3 twist lock extension cord 50 foot |
1 |
(NON-OEM) |
|
8 |
172-1289
|
Membrane switch (OBSOLETE) |
1 |
|
|
9 |
172-0219
|
Rocker switch |
1 |
|
|
10 |
172-1290
|
Top console (OBSOLETE) |
1 |
|
|
11 |
172-1291
|
Powercord clamp (OBSOLETE) |
1 |
(double insulated) |
|
12 |
N/A
|
Not available |
4 |
(o-ring) |
|
13 |
170-5174
|
Strain relief |
1 |
|
|
14 |
272-5244
|
Screw 8-15 x 9/16 pan head phillips plastic |
4 |
|
|
15a |
172-1293
|
Power cord clamp |
2 |
|
|
15b |
172-1294
|
Cord clamp (OBSOLETE) |
1 |
(qty 1 on double insulated 230V) (qty 2 on grounded 230V) |
|
16a |
172-4673
|
Controller 100-115v (OBSOLETE) |
1 |
(Aquaclean 12 and Aquaclean 15 after SN 1052727) |
|
16b |
172-4160
|
Controller, 120v |
1 |
(Aquaclean 12 and Aquaclean 15 before SN 1052728 and any Aquaclean 18) |
|
16c |
272-0251
|
Controller (OBSOLETE) |
1 |
|
|
