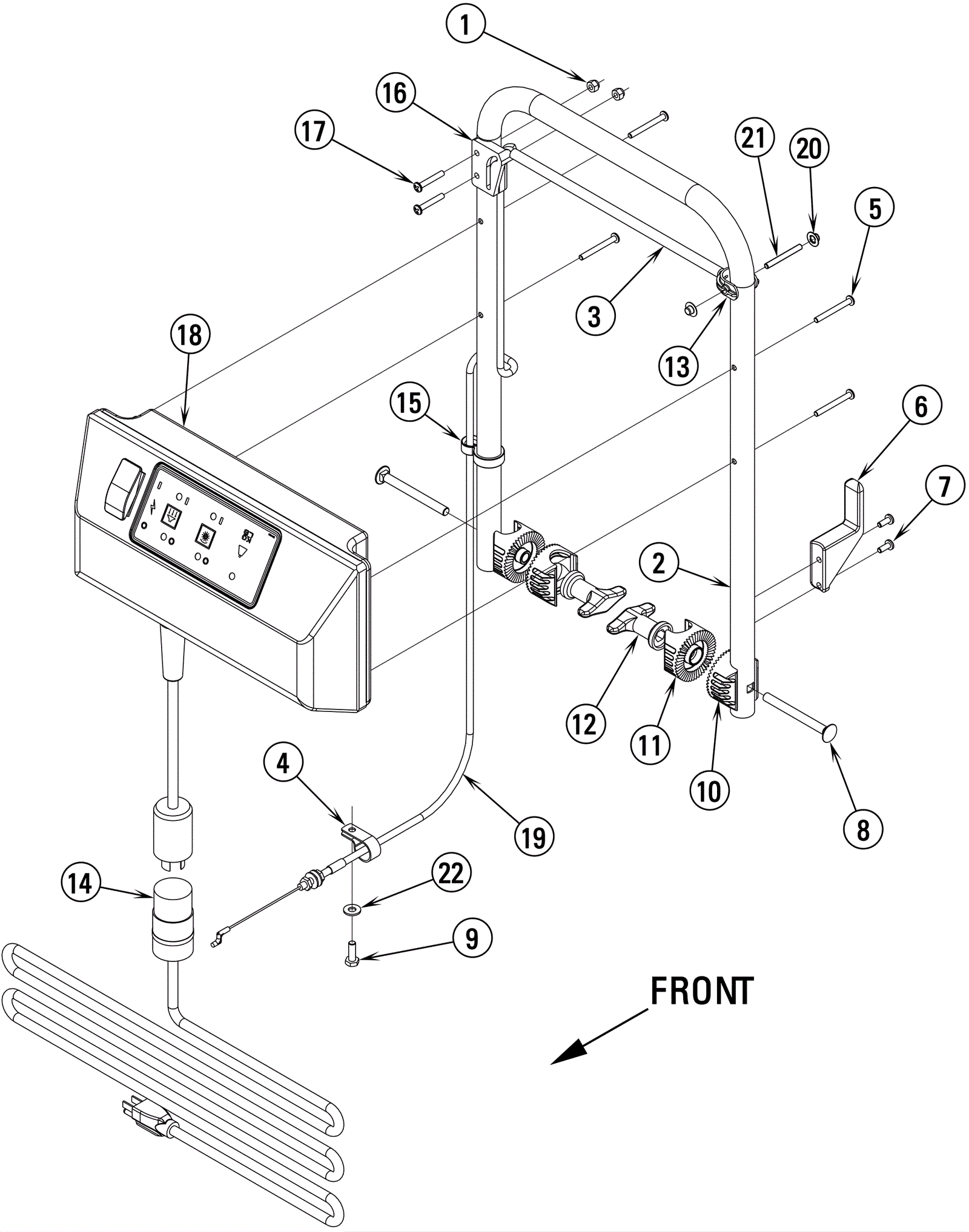

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
172-1275
|
Nut 10-24 acorn open |
2 |
|
|
2 |
172-1276
|
Upper handle (OBSOLETE) |
1 |
|
|
3 |
172-1277
|
Handle tube (OBSOLETE) |
1 |
|
|
4 |
172-2122
|
P clamp |
1 |
|
|
5 |
999-1901
|
Screw 10-24 x 1 3/4 pan phillips stainless steel |
4 |
|
|
6 |
172-4104
|
Cord hook |
1 |
|
|
7 |
999-0545
|
Screw 10-24 x 1/2 pan head phillips self-tapping |
2 |
|
|
8 |
172-1278
|
Screw 5/16-18 x 3-1/4 carriage head |
2 |
|
|
9 |
272-1596
|
Bolt 1/4-20 x 3/4 hex head lock |
1 |
|
|
10 |
272-5068
|
Handle adjustment ratchet |
2 |
|
|
11 |
272-5069
|
Handle adjustment ratchet |
2 |
|
|
12 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
13 |
172-4001
|
Clevis kit (OBSOLETE) |
1 |
|
|
14a |
172-2807
|
14/3 Extension cord 43 foot |
1 |
(OEM) |
|
14b |
991-5005
|
14/3 replacement power cord 50 foot (yellow) |
1 |
(NON-OEM) |
|
15 |
N/A
|
Not available |
1 |
(cable support) |
|
16 |
172-4002
|
Cable guide support (OBSOLETE) |
1 |
|
|
17 |
999-0570
|
Screw 10-24 x 1 1/4 pan head phillips stainless steel |
2 |
|
|
18a |
172-1281
|
Console assembly (OBSOLETE) |
1 |
|
|
18b |
272-0250
|
Console assembly (OBSOLETE) |
1 |
|
|
19 |
172-4161
|
Control cable |
1 |
|
|
20 |
272-5254
|
Nut 1/4 push cap |
2 |
|
|
21 |
172-1282
|
Pin |
1 |
|
|
22 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
