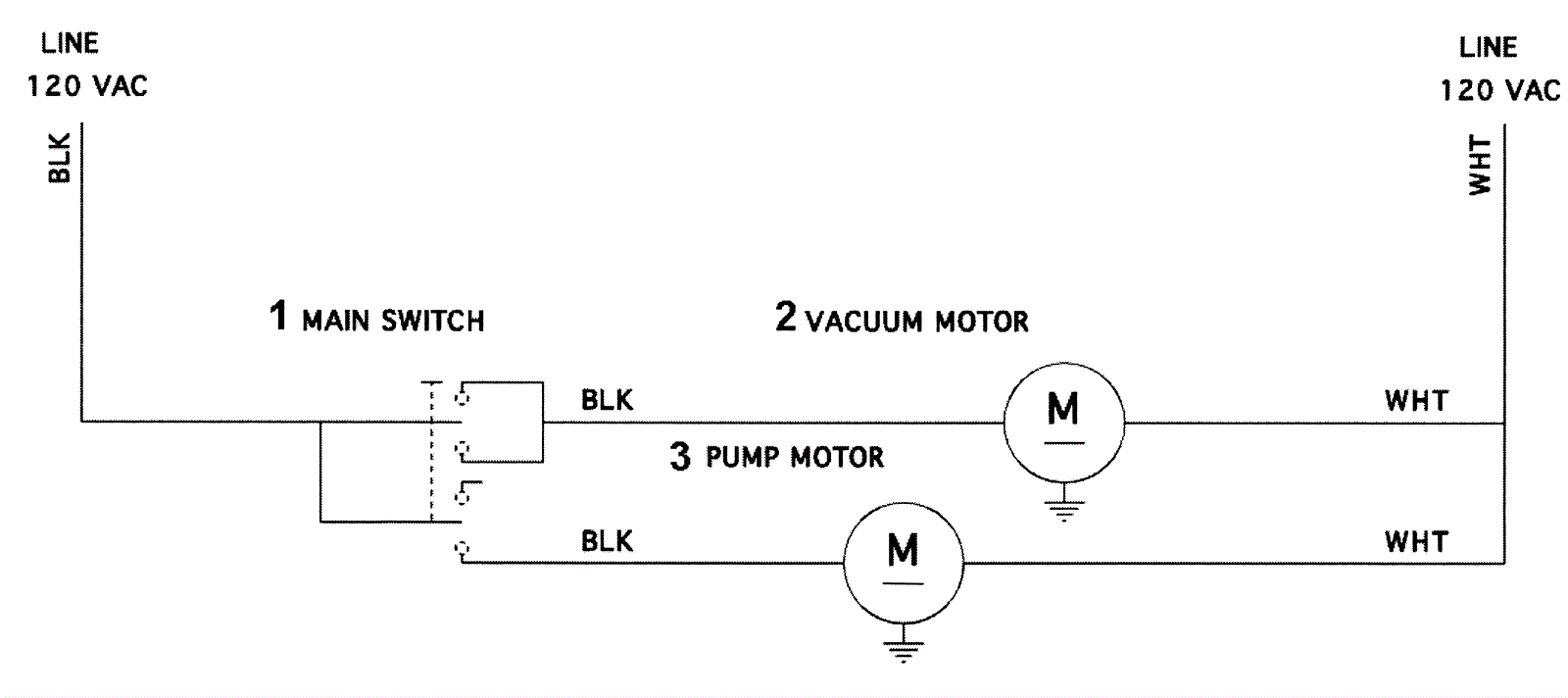

AQUASPOT Wiring Diagram

#PartDescription ReqNotesAvailability
1 181-1079 Rocker switch 1 usually ships 13-16 days
2a 181-1109 120V vacuum motor assembly 1 usually ships 13-16 days
2b 172-6012 Carbon brush (pkg of 2) 1 usually ships 13-16 days
3 181-1083 Pump 1 usually ships 13-16 days
