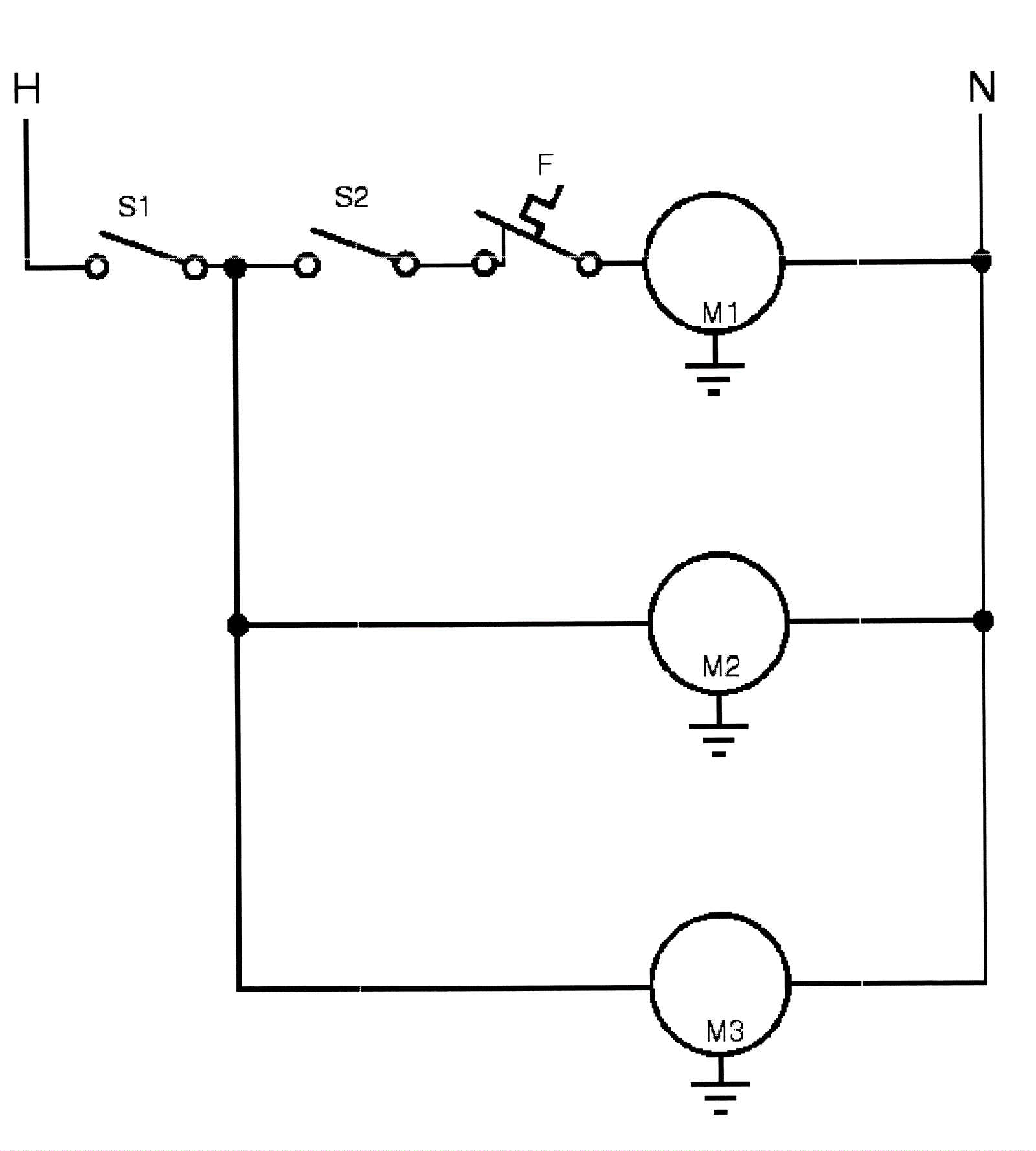

AQUACLEAN 17 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
F 172-4010 Circuit breaker 9amp $108.64 1 usually ships 1-5 days
M1 N/A Not available Call for price 1 (Brush motor) usually ships 3-26 days
M2 991-1204 120V 3 stage vacuum motor tangential with snout $193.14 1 ships same day
M3 172-4057 Pump motor $576.50 1 usually ships 16-41 days
N/S 172-4012 Terminal block $9.02 1 usually ships 16-41 days
S1 172-4013 Rocker switch $62.83 1 usually ships 16-41 days
S2 172-4013 Rocker switch $62.83 1 usually ships 16-41 days
