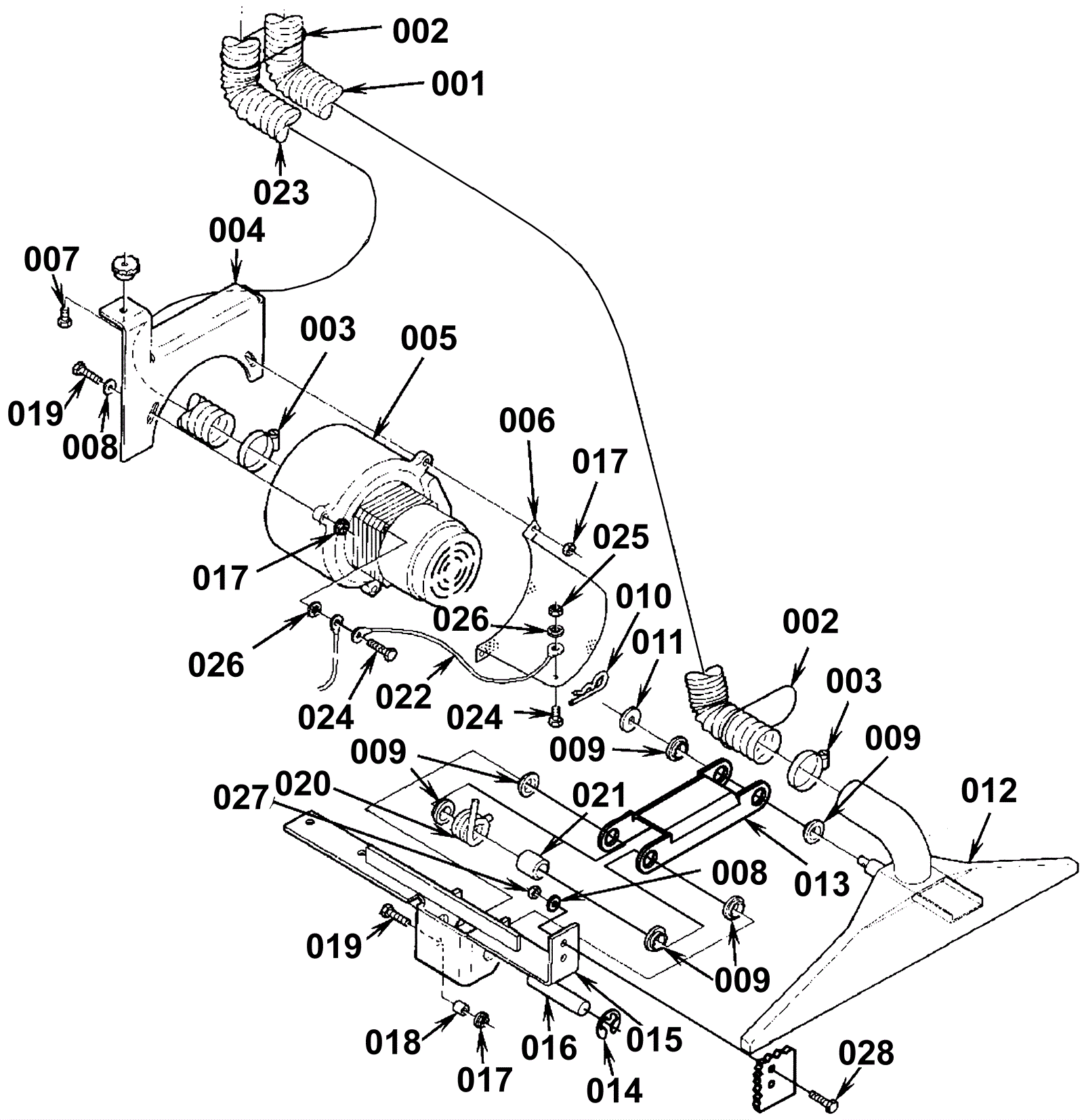

Vac Motor and Pick-Up Tool Assembly

#PartDescription ReqNotesAvailability
001a 272-0967 Vacuum hose assembly 1-1/2 inches 1 (after SN 1023167)
001b 272-0958 Vacuum hose assembly 1 1/2 inch 1 (from SN 521546 to 1023166)
002 997-2102 Cable tie 2
003 997-2000 Hose clamp 2
004 272-0959 Vacuum motor mount bracket (OBSOLETE) 1
005a 172-7027 120V vacuum motor 1
005b 172-4028 Carbon brush set for motor ( set of 2 ) 1
006 N/A Not available 1 (Shield)
007a 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 2 (after SN 1023167)
007b 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2 (from SN 521546 to 1023166)
008 999-0123 Washer 1/4 SAE flat zinc plated 4
009 272-0961 Flanged bearing 6
010 997-2518 Hitch pin 1
011 172-3047 Washer 11/32 x 1/8 flat 1
012 272-0962 Pick-up tool weldment 1
013 272-0963 Bracket (OBSOLETE) 1
014 172-4038 Retaining ring 2
015 272-0964 Pivot bracket weldment (OBSOLETE) 1
016 272-0965 Pivot pin 1
017 999-0152 Nut 1/4-20 nylon insert lock zinc plated 4
018 172-0400 Bushing 1
019a 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 4 (after SN 1023167)
019b 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated 4 (from SN 521546 to 1023166)
020 272-8024 Torsion spring 1
021 272-9138 Bushing (OBSOLETE) 1
022 272-8025 Wire assembly (OBSOLETE) 1
023a 272-2095 Vacuum hose assembly 1-1/2 inches 1
023b 272-0967 Vacuum hose assembly 1-1/2 inches 1 (from SN 521546 to 1023166)
024 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2 (after SN 1023167)
025 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1 (after SN 1023167)
026 999-0053 Washer #10 split lock plain finish 2 (after SN 1023167)
027 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2 (after SN 1023167)
028 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2 (after SN 1023167)
