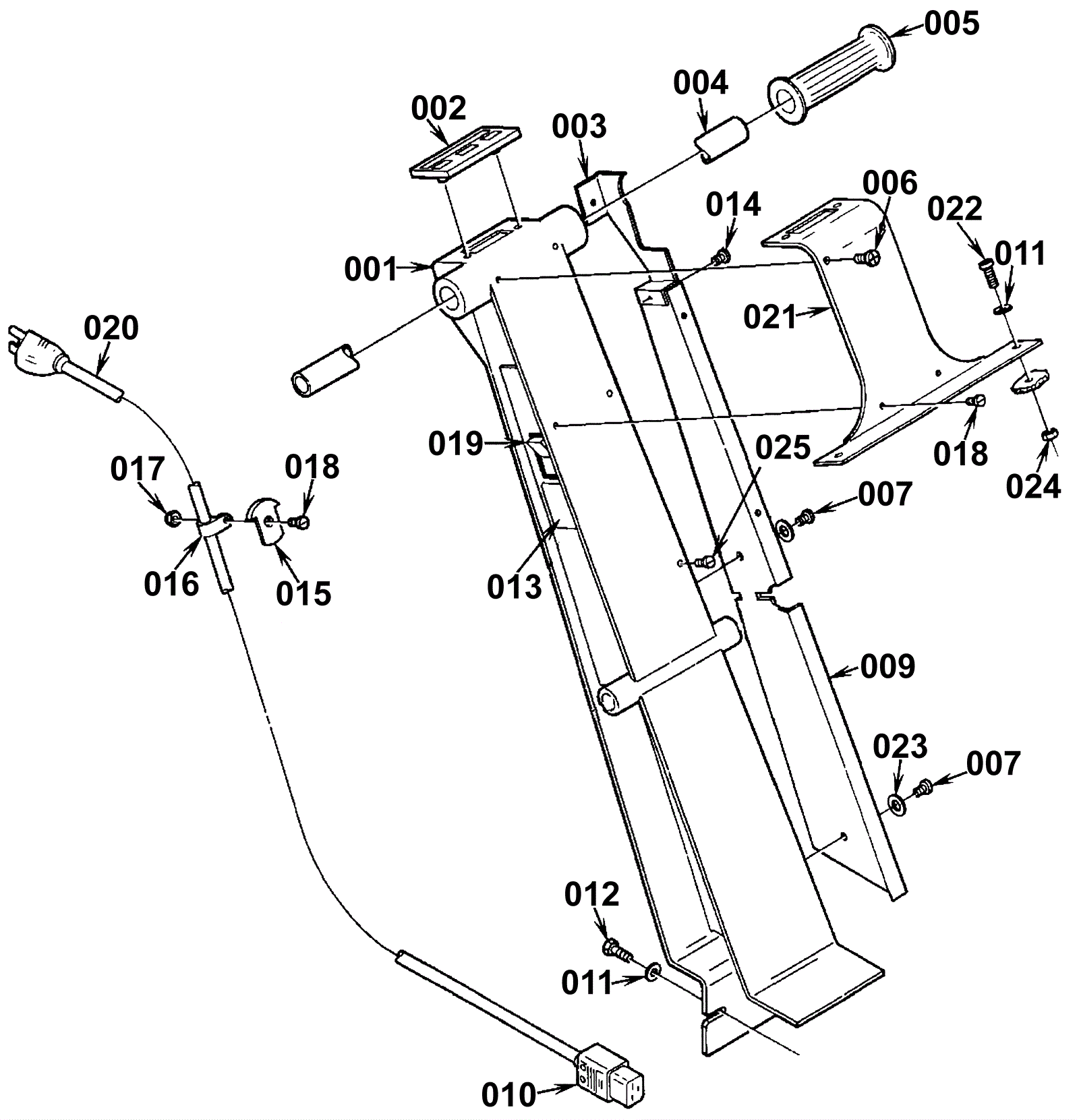

Handle Assembly

#PartDescription ReqNotesAvailability
001 272-0928 Control handle (OBSOLETE) 1
002a 272-0910 Membrane switch assembly 1
002b 172-6058 Nut stud (OBSOLETE) 2
002c 272-0929 Membrane switch 1 After SN 521546
002d 272-0930 Membrane switch bracket 1
003a 272-9124 Handle panel (OBSOLETE) 1 After SN 1023167
003b N/A Not available 1 (Upper handle panle - After SN 521546)
004 272-0932 Handle tube (OBSOLETE) 1
005a 164-0304 Handle grip 2
005b 991-8571 Handle grip 2 (NON-OEM)
006 999-0275 Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling 2
009a 272-9126 Lower handle panel (OBSOLETE) 1 After SN 1023167
009b N/A Not available 1 (Lower handle panel - After SN 521546)
010 272-0878 Cord connector (OBSOLETE) 1
011 172-0548 Washer 17/64 x 47/64 flat stainless steel 4
012 999-1297 Screw M8 x 50mm hex head stainless steel 2
013 172-5382 Power decal (OBSOLETE) 1
014 999-1131 Screw 8-32 x 3/8 pan head phillips thread rolling SS 1
015 272-0934 Cord mount 1
016 272-9125 Cord clamp 1
017 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 3
018 999-0453 Screw 8-32 x 1/2 pan head phillips thread forming zinc 3
019a 172-0219 Rocker switch 1 After SN 1023167
019b 172-4013 Rocker switch 1 After SN 521546
020 172-7076 14/3 power cord 75 ft (OBSOLETE) 1
021 272-0935 Handle plate (OBSOLETE) 1
022a 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 2 After SN 1023167
022b 999-0456 Screw 1/4-20 x 3/4 pan head phillips stainless steel 2 After SN 521546
023 999-0412 Washer #8 SAE flat 2
024 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
025 N/A Not available 2 (Bolt)
026 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
027 172-2208 Sealing washer 2
