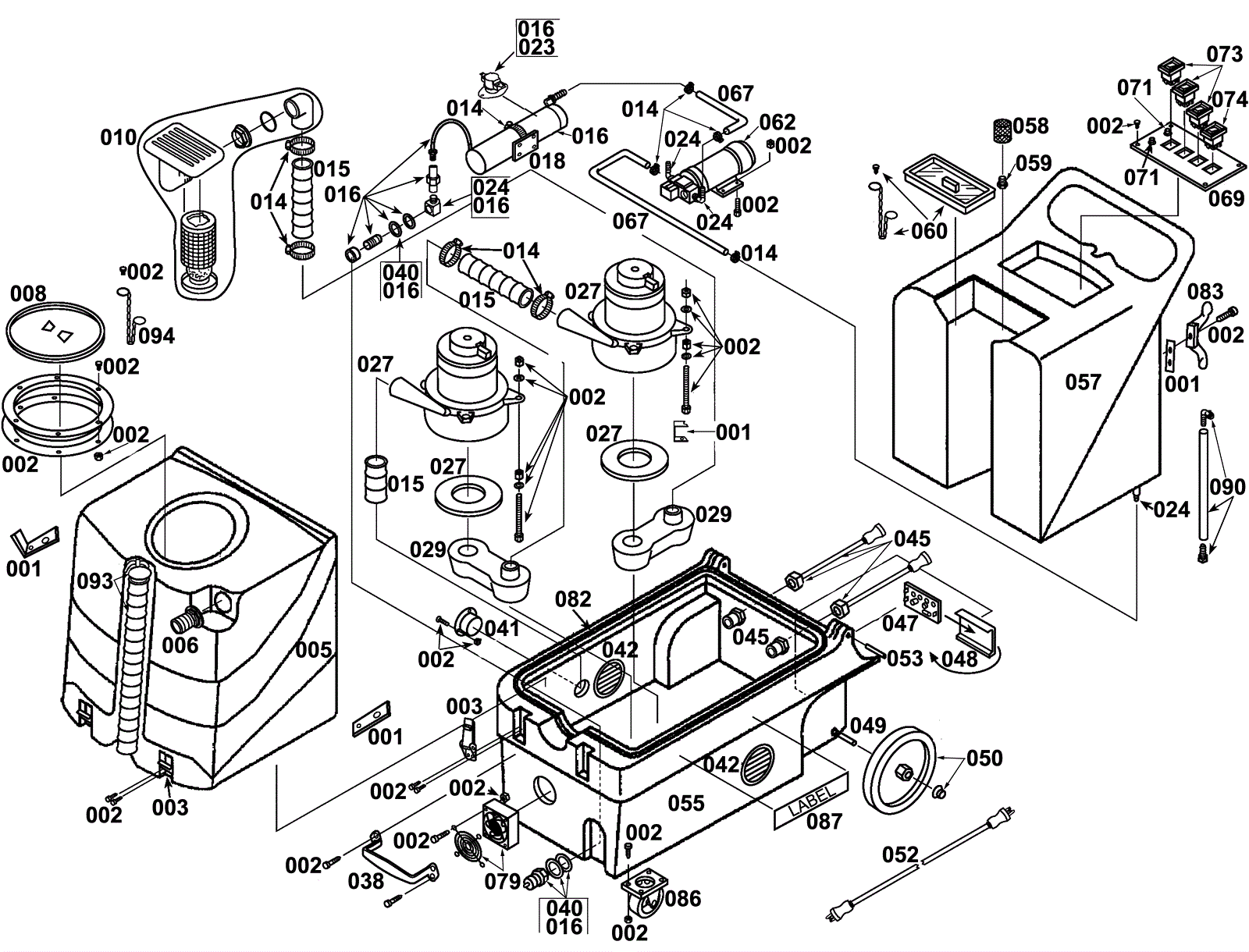

Entire Assembly

#PartDescription ReqNotesAvailability
001 172-3518 Bracket kit (OBSOLETE) 1
002 172-3512 Hardware kit 2
003 172-2487 Black rubber latch with strike 2
005 172-3513 Recovery tank gray (OBSOLETE) 1
006 172-2481 Hose barb 1
008 172-2475 6 inch lid with clear center and ring 1
010 209-0071 Complete ball float assembly (OBSOLETE) 1
014 172-3515 Hose clamp kit 1
015 172-3516 Vacuum hose 2 x 41 (OBSOLETE) 1
016 172-3546 Heat exchanger complete (OBSOLETE) 1
018 209-0621 Heat exchanger mount 1
023 209-0333 Bi-metallic heat repair kit 1
024 172-3532 Hose barb kit 1
027a 209-0004 120V 2 stage vacuum motor with gasket and connectors 2 (OEM)
027b 209-0005 Vacuum motor gasket 2
027c 991-9278 120V 2 stage vacuum motor dual ball tangential 2 (NON-OEM)
029 209-0132 Vacuum manifold 2
038 209-0461 Chrome manifold 1
040 181-1385 Quick disconnect kit - hot 1
041 209-0462 Exhaust flange (OBSOLETE) 1
042 372-3715 Shutter 2
045 172-3524 Cord outlet kit 2
047 209-0115 Dual cord sensor board circuit 1
048 209-0100 PCB mount 1
049 172-3526 Plated axle rod 18 1/4inch 1
050 172-3527 Wheel kit 2
052 209-0097 12/3 extension cord 25 foot 2
053 209-0648 Hinge pin 2
055 172-3530 Base compartment gray 1
057 172-3531 Solution tank gray 1
058 209-0150 Filter 1
059 209-0603 Nipple 1/2 NPT 1
060 172-3514 Solution lid kit (OBSOLETE) 1
062 172-3533 Pump 120volt 150psi (OBSOLETE) 1
067 172-3534 Hose 3/8 x 76ft (OBSOLETE) 1
069 172-3550 Switch plate (OBSOLETE) 1
071 172-3551 Light (green) 2
073 172-3539 Switch with cover (OBSOLETE) 3
074 172-3539 Switch with cover (OBSOLETE) 1
079 172-2463 Fan kit 1
082 270-8078 Base gasket poron 7/8 x 7 inch 1
083 209-0093 Cord wrap 2
086 209-0480 Caster wheel (gray) 2
087 209-2146 LABEL KENT RAINMAKER 9 LONG 2
090 172-2901 Solution hose kit 1
093 172-2490 Dump hose kit 1
094 172-2474 8 inch chain 1
N/S 172-2492 Warning decal 1
N/S 172-3543 Extractor hand tool 1
