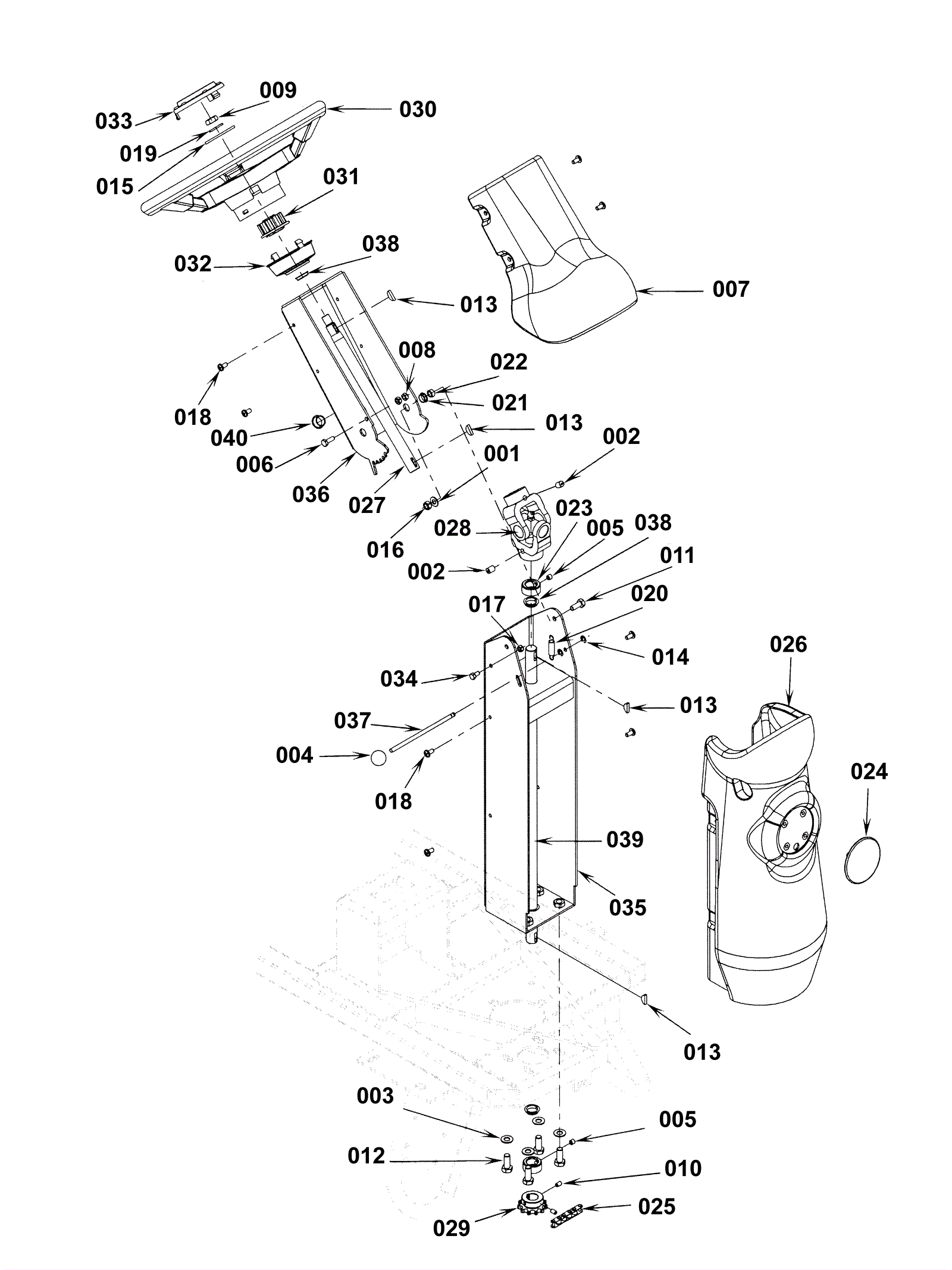

AQUA RIDE Steering Column Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0024 Washer 5/16 flat stainless steel $1.34 2 ships same day
002 999-1373 Screw 3/8-16 x 3/8 socket set lock stainless steel $6.34 2 usually ships 1-5 days
003 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
004 172-2674 Knob $12.31 1 ships same day
005 999-0346 Screw 5/16-18 x 1/4 set cup point socket alloy plain finish $0.99 2 ships same day
006 999-0334 Bolt 1/4-20 x 3/4 inch hex head stainless steel $3.85 1 ships same day
007 172-3492 Upper column shroud $40.54 1 usually ships 1-5 days
008 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 2 ships same day
009 999-0118 Nut 1/2-13 nylon insert lock zinc plated $0.99 1 ships same day
010 272-1454 Screw 1/4-20 X 3/8 socket set lock $12.31 2 usually ships 1-5 days
011 999-0810 Screw 5/16-18 x 3/4 flat head slotted stainless steel $1.56 2 ships same day
012 999-1372 Bolt M10-1.5 x 25mm hex head stainless steel $3.56 4 ships same day
013 172-9387 Woodruff key $12.31 4 usually ships 16-41 days
014 172-0392 Retaining ring $10.85 2 usually ships 16-41 days
015 999-1363 Washer 7/8 flat stainless steel $3.48 1 ships same day
016 999-0471 Nut M8-1.25 nylon insert lock zinc plated $0.99 2 ships same day
017 999-0469 Nut M6-1 nylon insert lock zinc plated $1.32 1 ships same day
018 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc $0.99 8 ships same day
019 999-0114 Washer 1/2 SAE flat $0.99 1 ships same day
020 172-9056 Extension spring $12.31 1 usually ships 16-41 days
021 172-8919 Flanged bearing $12.31 2 usually ships 16-41 days
022 172-4008 Bushing $33.43 2 ships same day
023 172-0115 Shaft collar $29.23 2 usually ships 16-41 days
024 172-9123 Logo decal (OBSOLETE) $140.18 1 usually ships 1-5 days
025 172-9068 Roller chain $70.47 1 ships same day
026 172-3491 Lower column shroud $110.55 1 usually ships 1-5 days
027 172-9072 Upper steering shaft $127.61 1 usually ships 1-5 days
028 172-9074 Universal joint $238.01 1 usually ships 1-5 days
029 172-8093 Sprocket $95.66 1 usually ships 16-41 days
030 172-9075 Steering wheel $245.69 1 usually ships 16-41 days
031 172-9078 Steering wheel adapter $42.98 1 usually ships 1-5 days
032 172-9076 Cup $19.98 1 usually ships 1-5 days
033 172-9077 Cap $47.56 1 usually ships 1-5 days
034 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 1 ships same day
035 272-1229 Lower column $276.99 1 usually ships 1-5 days
036 172-3487 Upper column $100.10 1 usually ships 16-41 days
037 172-3488 Locking rod $42.98 1 usually ships 16-41 days
038 172-3489 Bearing nyliner $13.76 3 usually ships 16-41 days
039 172-3490 Lower steering shaft $54.11 1 usually ships 16-41 days
040 172-1803 Plug $12.31 1 usually ships 1-5 days
