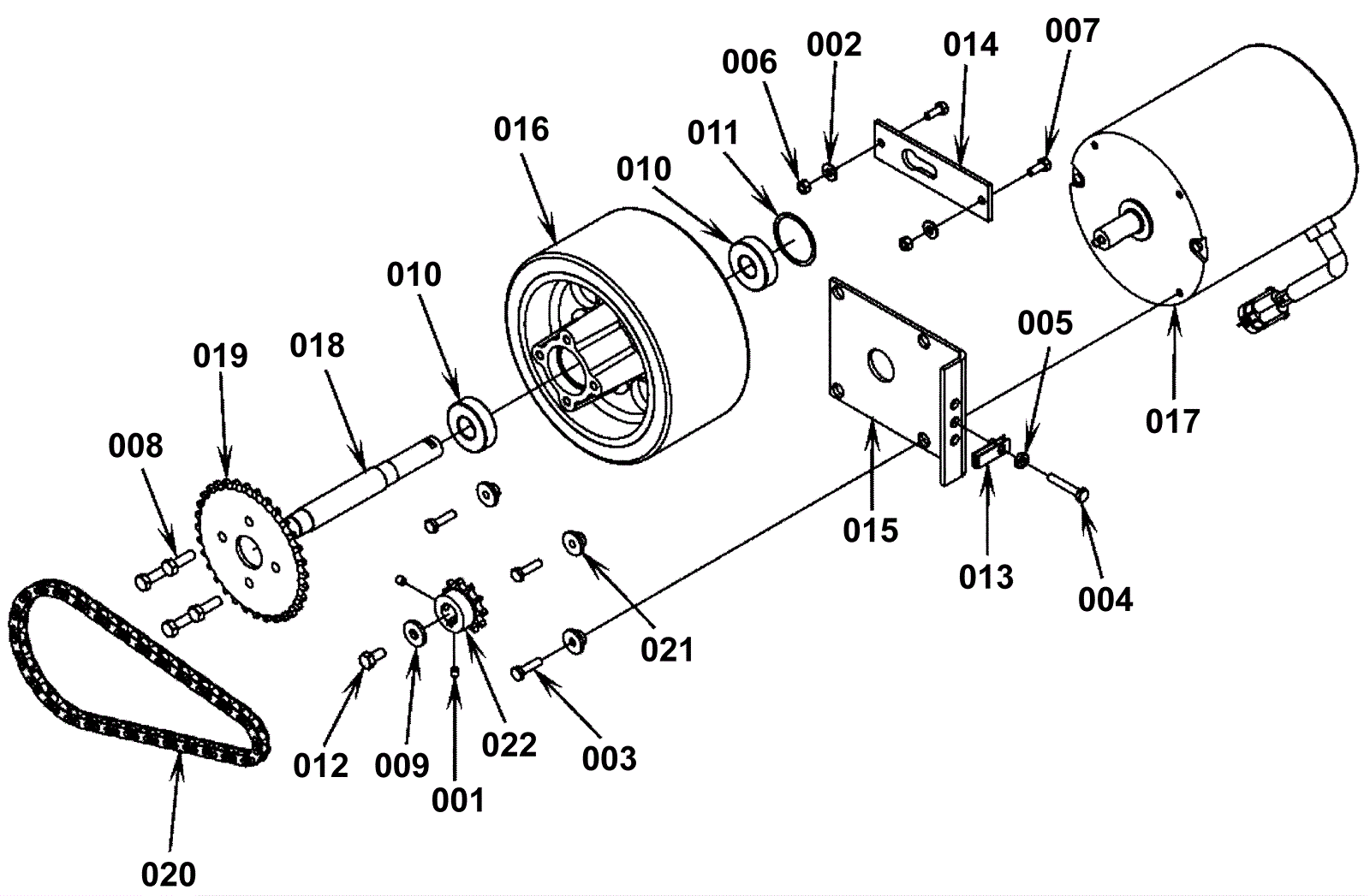

Traction Assembly

#PartDescription ReqNotesAvailability
001 999-0096 Screw 1/4-20 x 1/4 cup point socket set plain finish 2
002 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 2
003 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 3
004 999-0634 Bolt 1/4-20 x 1 1/2 hex head full thread grade 5 zinc plated 1
005 999-0609 Nut 1/4-20 hex stainless steel 1
006 999-0497 Nut M6-1 nylon insert lock stainless steel 2
007 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
008 999-0501 Bolt M8-1.25 x 25mm hex head full thread stainless steel 4
009 172-2067 Washer 11/32 x 1/8 flat 1
010 172-4597 Ball bearing 2
011 172-2050 Retaining ring 1
012 172-3280 Screw 5/16 - 18 x 5/8 hex lock stainless steel 1
013 172-2049 Nut 1/4- 20 1
014 172-2059 Steel bar (OBSOLETE) 1
015 172-2060 Traction drive tension bracket (OBSOLETE) 1
016 172-3281 Drive wheel (OBSOLETE) 1
017a 172-1785 36V 1/2HP drive motor 1
017b 164-0325 Carbon brush with lead and terminal (sold individually) 4
018 172-2062 Axle 1
019 172-2063 Sprocket 1
020a 991-0101 Chain (sold by the link) 56
020b 991-0103 Master link 1
021 172-2065 Bushing 3
022 172-2066 Sprocket with keyway 1
N/S 272-7301 Drive hub
N/S 272-7300 Drive spindle
N/S 272-7302 Ball bearing
