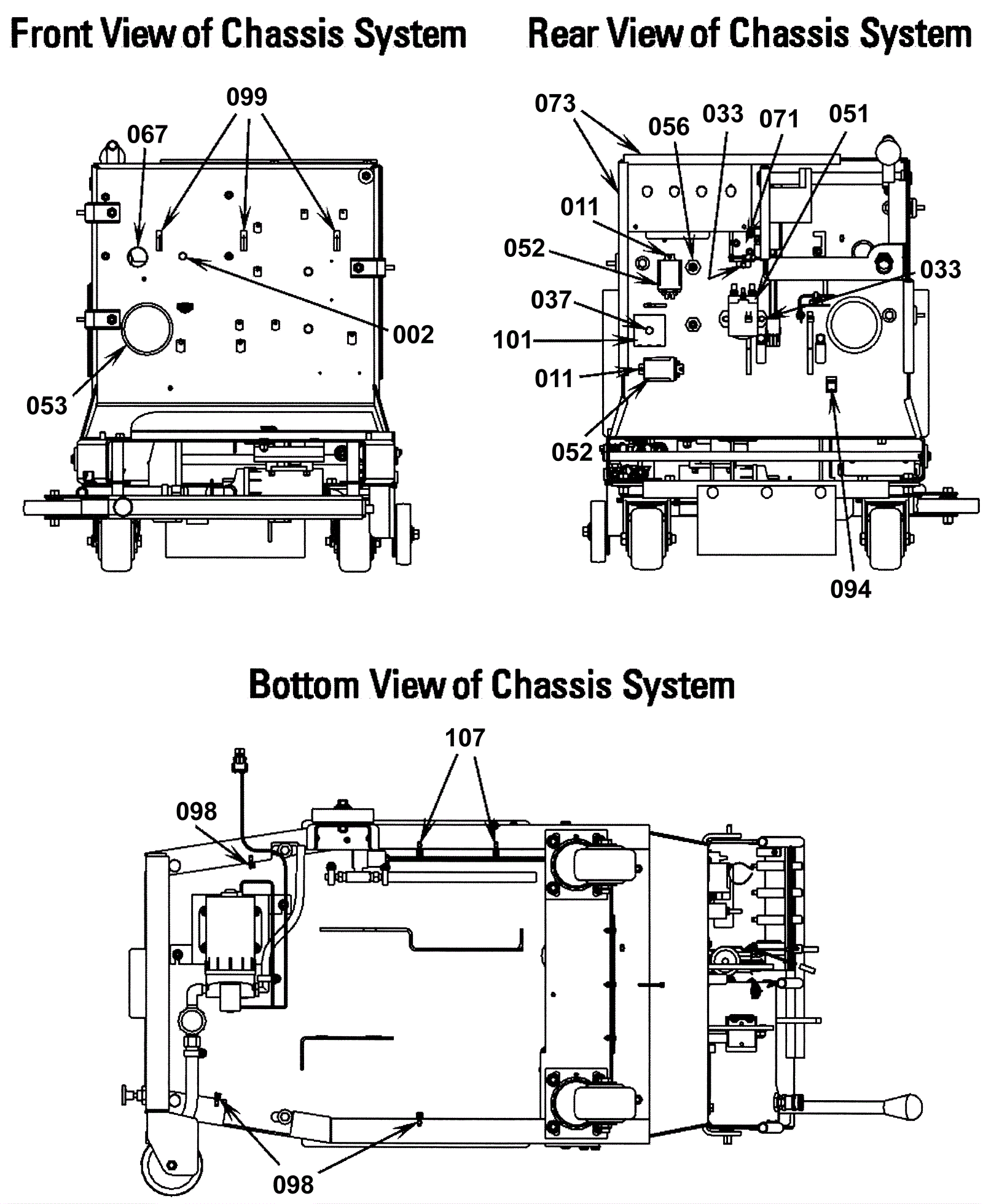

Chassis System

#PartDescription ReqNotesAvailability
002 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 1
011 999-0100 Screw 6-32 x 5/16 round head slotted zinc plated 4
033 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 4
037 272-1660 Bolt 1/4-20 X 1 1/4 hex head thread form 1
051 172-2805 36V contactor 1
052 172-1779 36V relay SPST 2
053 172-3251 Grommet 1
056 172-0103 Electrical mount 2
067 172-3252 Grommet 1
071 172-3253 Reversing contactor 1
073 172-3254 Gasket (OBSOLETE) 2
094 172-3255 Wire clip (OBSOLETE) 1
098 172-1793 Clip 3
099 172-9838 Clip (OBSOLETE) 3
101 172-9594 Vacuum motor time delay (OBSOLETE) 1
107 172-1793 Clip 2
