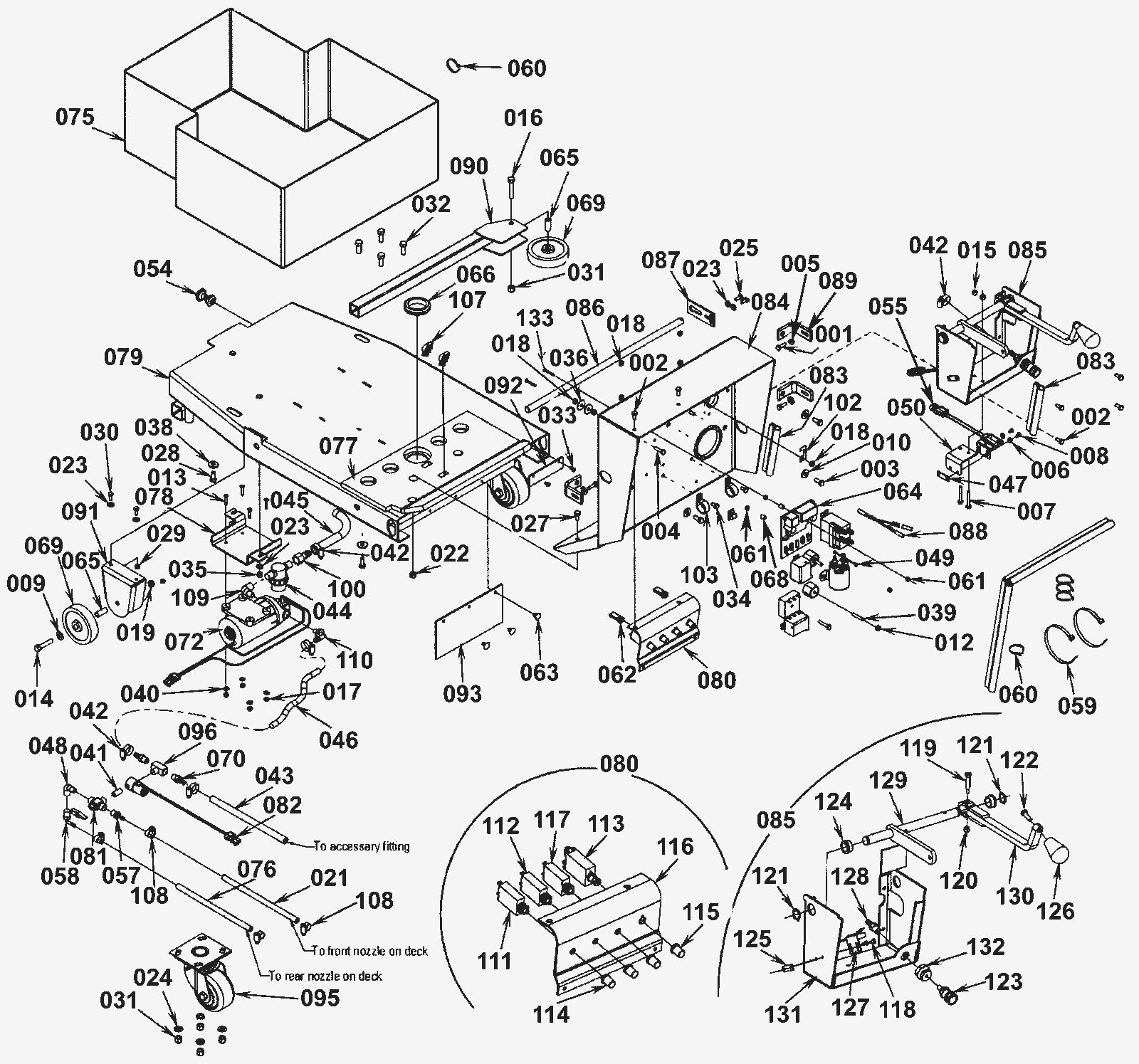

Chassis Assembly

#PartDescription ReqNotesAvailability
001 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 3
002 999-0019 Bolt 1/4-20 x 5/8 hex head grade 5 zinc plated 5
003 999-0132 Bolt 5/16-18 x 3/4 hex head grade 5 zinc plated 3
004 999-0297 Bolt 1/4-20 x 1 hex head stainless steel 1
005 999-0016 Washer 1/4 flat plain finish 3
006 999-0006 Washer 3/16 flat zinc plated 2
007 999-0394 Bolt 1/4-20 x 1 3/4 hex head grade 5 zinc plated 2
008 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
009 999-0120 Washer 3/8 SAE flat 1
010 999-0024 Washer 5/16 flat stainless steel 3
012 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
013 999-0400 Screw 10-24 x 1 pan head phillips zinc plated 4
014 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
015 999-0152 Nut 1/4-20 nylon insert lock zinc plated 2
016 999-0550 Bolt 3/8-16 x 2 hex head stainless steel 1
017 999-0442 Nut 10-24 nylon insert lock stainless steel 4
018 999-0152 Nut 1/4-20 nylon insert lock zinc plated 7
019 999-0188 Nut 3/8-16 nylon insert lock zinc plated 1
021 172-3221 Hose (OBSOLETE) 1
022 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
023 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 6
024 999-0355 Washer 3/8 x 7/8 SAE flat stainless steel 8
025 272-1465 Screw 1/4-20 X 5/8 hex head lock 2
027 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated 2
028 999-0556 Bolt 5/16-18 x 3/4 hex head stainless steel 2
029 999-0497 Nut M6-1 nylon insert lock stainless steel 2
030 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish 2
031 999-0513 Nut 3/8-16 nylon insert lock type NE stainless steel 9
032 999-0562 Bolt 3/8-16 x 1 hex head stainless steel 8
033 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 6
034 999-0273 Screw 1/4-20 x 1/2 hex washer head thread rolling zinc 2
035 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2
036 172-0548 Washer 17/64 x 47/64 flat stainless steel 2
038 172-2067 Washer 11/32 x 1/8 flat 2
039 172-0346 Stud 1/4-20 2
040 999-0998 Washer #10 flat stainless steel 4
041 172-4126 Nipple 1
042 997-2002 Hose clamp #6 5
043 172-3222 Hose (OBSOLETE) 1
044 172-2093 Inlet filter 1 You can not get just the bottom cap alone, you must purchase the entire inlet filter.
045 172-2327 Wire reinforced clear hose (OBSOLETE) 1
046 172-1351 Hose 3/8x10 1
047 172-2158 Nut plate 1
048 172-0299 Brass elbow 1
049 172-0236 Diode rectifier assembly 1
050 172-0234 Switch bracket (OBSOLETE) 1
054 172-9073 Latch assembly 1
055 172-0235 Switch assembly (OBSOLETE) 1 charger interlock
057 172-4124 Brass barb 1/4 x 1/4 1
058 172-1337 90 degree barb 1/4 1
059 997-2102 Cable tie 2
060 997-2101 6 inch cable tie 16
061 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel 4
062 172-2049 Nut 1/4- 20 2
063 172-1811 Panel clip 3
064 181-0187 DC control (OBSOLETE) 1
065 172-2080 Steel spacer (OBSOLETE) 2
066 172-3223 Grommet 1
068 181-0197 Aluminum spacer (OBSOLETE) 2
069 172-2085 Wheel 2
070 172-0298 Barb fitting 1/4 x 3/8 2
072 172-1855 36V pump 1
075 172-3225 Battery box (OBSOLETE) 1
076 172-3226 Hose 2
077 172-3227 Vac filter gasket (OBSOLETE) 1
078 172-3228 Pump mount bracket (OBSOLETE) 1
079 N/A Not available 1 (Chassis weldment)
080 172-3230 Circuit breaker assembly (OBSOLETE) 1 111-117
081 172-3231 3-Way valve 1
082 172-3232 Solenoid valve 36volt DC 1
083 172-3233 Gasket (OBSOLETE) 2
084 172-3234 Rear frame weldment (OBSOLETE) 1
085 172-3235 Lift handle assembly (OBSOLETE) 1 118-132
086 172-3236 Deck pivoy bar 1
087 172-3237 Steel bar (OBSOLETE) 1
088 172-3238 Diode assembly (OBSOLETE) 1
089 172-3239 L bracket (OBSOLETE) 3
090 172-3240 Arm weldment (OBSOLETE) 1
091 172-3241 Wheel bracket (OBSOLETE) 1
092 172-3242 Slide plate (OBSOLETE) 1
093 172-3243 Chassis skirt (OBSOLETE) 1
095a 172-0001 Swivel caster wheel 2 (OEM)
095b 991-2006 Caster wheel assembly (red) 1 (NON-OEM)
096 172-0266 Tee branch 1
100 172-2113 Female hose barb 1
102 172-9583 Clip 1
103 172-1014 P clamp 2
107 172-1793 Clip 2
108 997-2001 Hose clamp 4
109 172-4075 90 degree street elbow 1
110 172-2734 Elbow barb 27/64 x 3/8 1
111 272-1692 Circuit breaker 1 6A control circuit
112 172-0227 20amp circuit breaker (OBSOLETE) 1 Brush motor and drive motor
113 172-9823 40 Amp circuit breaker 1 Vacuum motor
114 172-0231 Reset button boot 3
115 172-8848 Reset button boot 1
116 172-3247 Breaker mount bracket (OBSOLETE) 1
117 172-0227 20amp circuit breaker (OBSOLETE) 1 B&D motor
118 999-0477 Screw 10-24 x 5/16 truss head phillips zinc 2
119 999-0573 Screw 5/16-18 x 1 1/4 socket head alloy plain finish 1
120 999-0152 Nut 1/4-20 nylon insert lock zinc plated 1
121 172-0569 Retaining ring 2
122 999-0494 Bolt 5/16-18 x 7/8 hex head stainless steel 1
123 991-8157 1/8 inch female quick disconnect socket 1
124 172-9388 Flanged bearing 2
125 172-2158 Nut plate 1
126 172-0021 Knob 1
127 172-0217 Waterproof switch 1
128 172-0298 Barb fitting 1/4 x 3/8 1
129 172-3248 Lift bar weldment (OBSOLETE) 1
130 172-1805 Lift lever weldment (OBSOLETE) 1
131 172-3249 Lift bracket (OBSOLETE) 1
132 272-0406 Adapter bulk head 1/4 1
133 999-0852 Screw 8-32 x 1 1/4 truss head slotted stainless steel 2
N/S 172-3244 Battery cable assembly - ring type 4 x 10 1
N/S 272-5287 Connector assembly with gray charger plug 1
N/S 172-3245 Ring cable (OBSOLETE) 1
N/S 172-0223 Battery cable boot 12
N/S 172-3246 Ring cable (OBSOLETE) 1
N/S 172-3224 Wiring harness (OBSOLETE) 1
