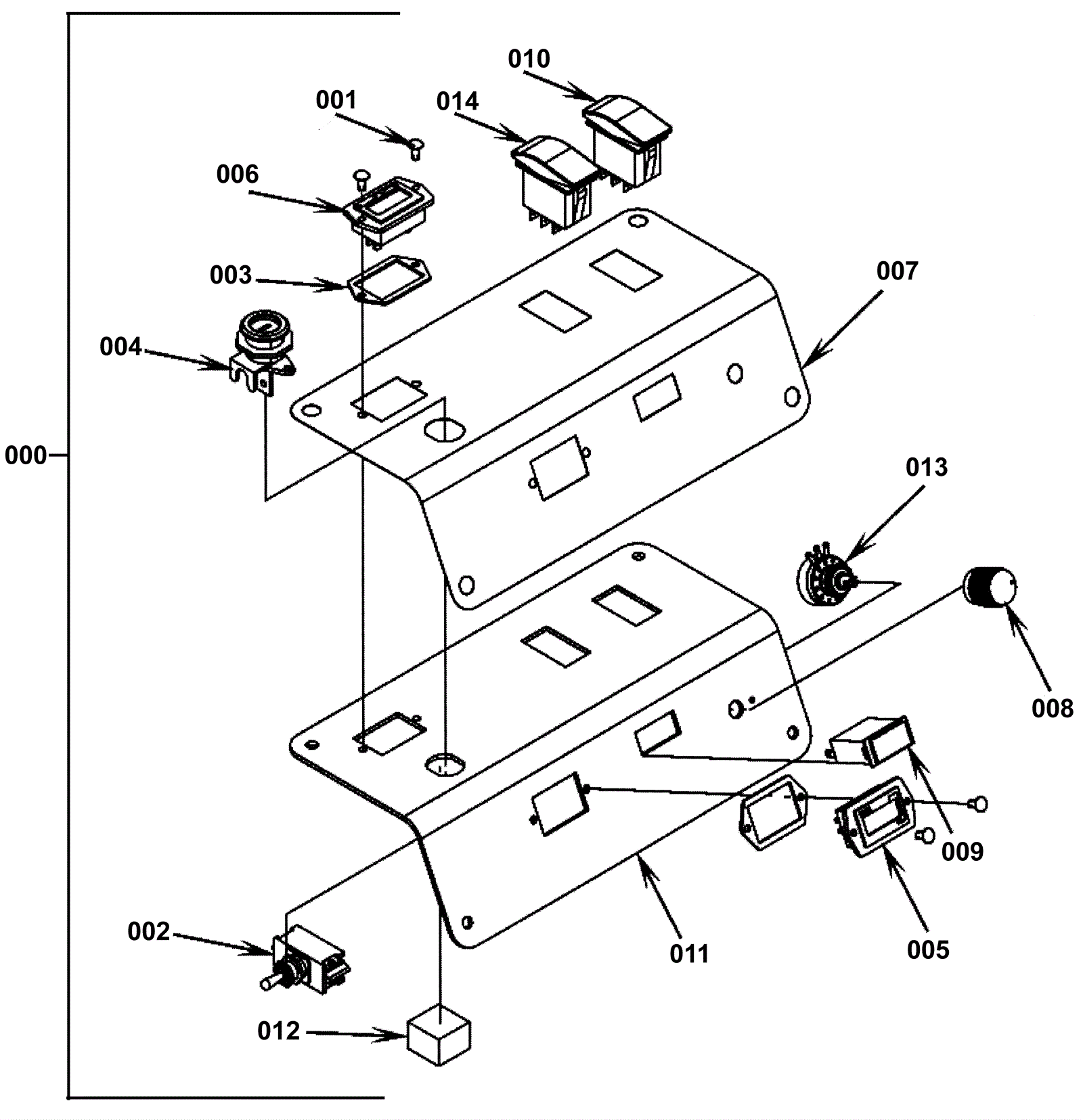

| # | Part | Description |
Req | Notes | Availability |
|---|
000 |
172-3148
|
Control panel assembly (OBSOLETE) |
1 |
|
|
001 |
172-0443
|
Nylon rivet (OBSOLETE) |
4 |
|
|
002 |
172-6004
|
Toggle switch |
1 |
if switch is hanging or floating, ask if they lost the key, if so, they need to order 004a to attach this switch |
|
003 |
272-1449
|
Gasket |
2 |
|
|
004a |
172-2161
|
Key switch with key and bracket |
1 |
|
|
004b |
172-0451
|
Replacement key |
|
|
|
005 |
172-2162
|
Hour meter |
1 |
|
|
006 |
172-9568
|
Battery fuel gauge |
1 |
|
|
007 |
N/A
|
Not available |
1 |
(Instrument panel decal) |
|
008 |
172-2169
|
Knob (OBSOLETE) |
1 |
|
|
009 |
172-3206
|
Ammeter DC |
1 |
|
|
010 |
172-3207
|
DPDT Rocker switch (OBSOLETE) |
1 |
Vacuum |
|
011 |
172-3208
|
Control panel (OBSOLETE) |
1 |
|
|
012 |
172-3209
|
Relay assembly (OBSOLETE) |
1 |
|
|
013 |
991-9023
|
25K Potentiometer |
1 |
Speed limit |
|
014 |
172-3207
|
DPDT Rocker switch (OBSOLETE) |
1 |
Pump |
|
