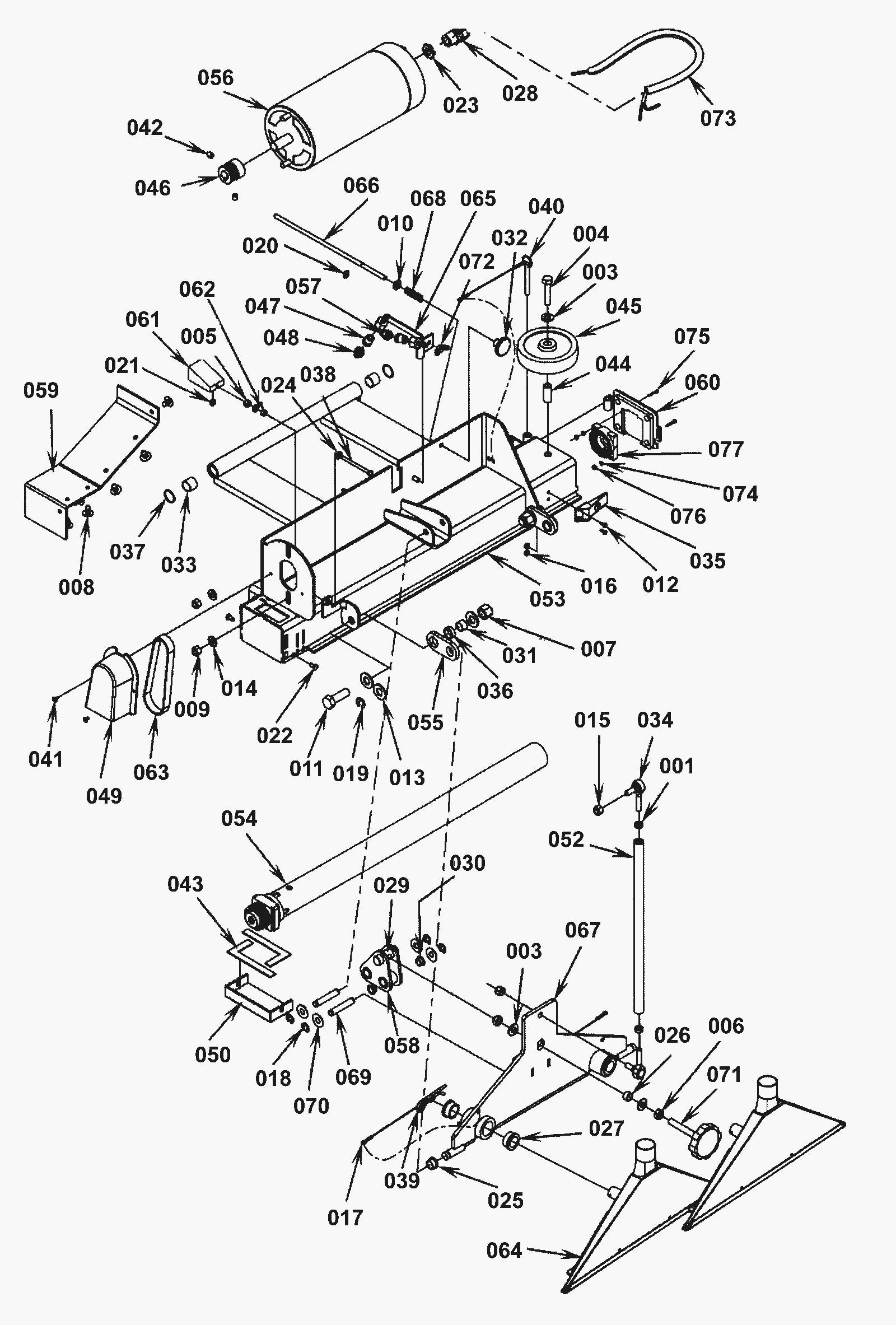

Brush Assembly

#PartDescription ReqNotesAvailability
001 999-0340 Nut 5/16-24 nylon insert lock zinc plated 2
003 999-0120 Washer 3/8 SAE flat 3
004 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated 1
005 999-0442 Nut 10-24 nylon insert lock stainless steel 1
006 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
007 999-0118 Nut 1/2-13 nylon insert lock zinc plated 2
008 172-1811 Panel clip 12
009 999-0423 Nut 5/16-18 nylon insert lock stainless steel 2
010 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel 1
011 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel 2
012 999-0336 Screw 6-32 x 3/8 pan head phillips stainless steel 2
013 999-0559 Washer 1/2 x 1/4 flat stainless steel 6
014 999-0549 Washer 5/16 x 3/4 SAE flat stainless steel 2
015 999-0340 Nut 5/16-24 nylon insert lock zinc plated 2
016 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated 2
017 172-1084 Wire rope assembly 3
018 172-4033 3/8 inch retaining ring 4
019 172-0269 Retaining ring 2
020 172-0392 Retaining ring 1
021 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated 1
022 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
023 172-4536 Nut 1/2-14 conduit lock 1
024 999-0998 Washer #10 flat stainless steel 2
025 172-9497 Flanged bearing 2
026 172-2631 Bushing 1
027 172-9388 Flanged bearing 4
028 172-4018 Strain relief 1
029 172-0070 Pin 1
030 172-8815 Flanged bearing 2
031 172-0072 Bushing 2
032 172-3176 Knob 1 1/4 x 1/4 - 28 1
033 172-3177 Bearing sleeve (OBSOLETE) 2
034 172-9096 Right side rod end 2
035 172-0094 Latch 1
036 172-0079 Sleeve bearing (OBSOLETE) 2
037 172-3178 Retainer ring 2
038 999-1668 Screw 10-24 x 2 1/2 hex head stainless steel 1
039 997-2509 Cotter pin 1/8 x 3/4 stainless steel 2
040 172-4389 Cotterless hitch pin 1/4 x 2-1/2 1
041 999-0317 Screw 8-32 x 1/4 pan head slotted zinc plated 2
042 999-1840 Screw 5/16-18 x 5/16 knurled point socket set alloy steel 2
043 172-3180 Gasket 2
044 172-2080 Steel spacer (OBSOLETE) 1
045 172-2085 Wheel 1
046 172-3181 Poly-V sheave 1
047 172-3182 Nozzle body 2
048 172-3183 Spray nozzle (.24 gallons per minute) 1
049 172-3184 Belt guard (OBSOLETE) 1
050 172-3185 Pulley cover 1
052 172-3186 Lift rod (OBSOLETE) 1
053 172-3187 Housing weldment (OBSOLETE) 1
054a 272-6003 Brush roll assembly 1 whole brush assy without belt
054b 272-2576 Brush/bearing kit (OBSOLETE) 1 whole brush assy with belt
055 172-3188 Link (OBSOLETE) 2
056a 172-3189 Motor 36volt DC 1/2hp 1800rpm 1
056b 172-3190 Brush replacement kit (OBSOLETE) 1
056c 172-3191 Key 1
057 172-3192 Spray nozzle (1.2 gallons per minute) 1
058 172-3193 Brush adjust weldment (OBSOLETE) 1
059 172-3194 Deck skirt 2
060 172-3195 Bearing retainer weldment (OBSOLETE) 1
061 N/A Not available 1 (Tensioner block)
062 172-3197 Bushing (OBSOLETE) 1
063 272-6004 Poly-v belt (OBSOLETE) 1
064 272-6005 Shoe weldment (OBSOLETE) 2
065 172-3198 Nozzle weldment (OBSOLETE) 1
066 172-3199 Lock rod (OBSOLETE) 1
067 172-3200 Shoe support weldment (OBSOLETE) 1
068 172-3201 Spring 1
069 172-3202 Pin (OBSOLETE) 2
070 172-3203 Washer 3/8 plated nylon 4
071 181-0169 Adjustment knob assembly (OBSOLETE) 1
072 999-1948 Nut 1/4-20 wing lock 1
073 172-3204 Cord assembly (OBSOLETE) 1
074 999-0985 Washer #4 SAE flat 2
075 N/A Not available 2 screw
076 999-0295 Nut 4-40 nylon insert lock stainless steel 2
077a 172-4041 Right bearing block 1
077b 172-4043 Ball bearing 1
N/S 272-0027 Cylindrical brush
