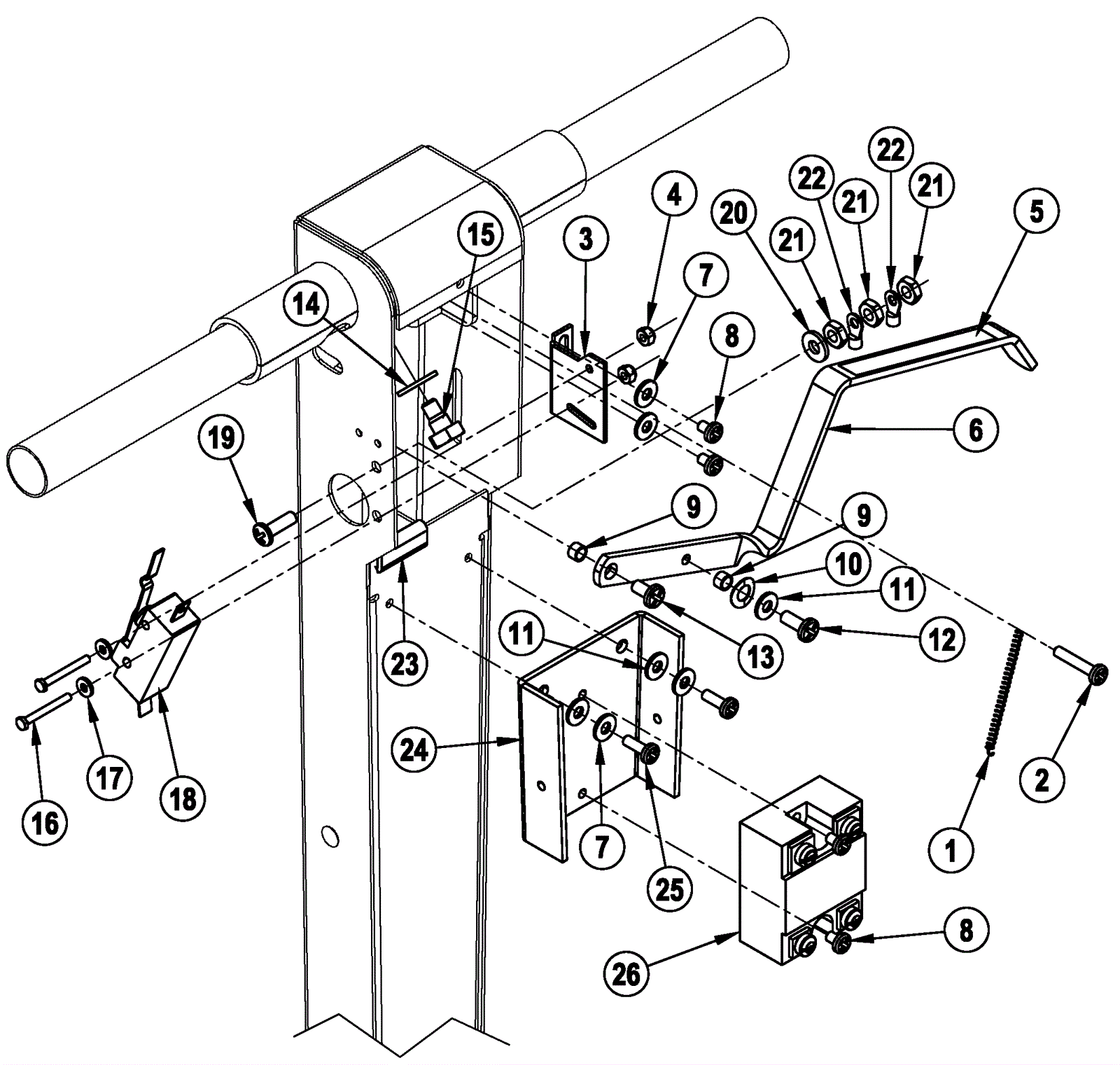

MATADOR 20AP Handle Assembly - Rear After SN 1934918

#PartDescriptionPriceReqNotesAvailability
1 172-4506 Extension spring (OBSOLETE) $18.39 1 usually ships 17-28 days
2 999-1356 Screw 8-32 x 7/8 pan head phillips stainlesss steel $0.99 1 usually ships 1-5 days
3 172-4507 Bracket $17.06 1 usually ships 17-28 days
4 999-0295 Nut 4-40 nylon insert lock stainless steel $0.99 2 ships same day
5 172-5019 Handle decal $19.45 1 usually ships 17-28 days
6 172-4514 Lever (OBSOLETE) $59.92 1 usually ships 17-28 days
7 999-1083 Washer #8 internal star lock stainless steel $0.99 4 ships same day
8 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 4 ships same day
9 172-4064 Bushing $13.76 2 usually ships 17-28 days
10 172-4512 Washer 17/64 x 1/2 bowed $10.85 1 usually ships 1-5 days
11 999-0412 Washer #8 SAE flat $0.99 3 ships same day
12 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 1 ships same day
13 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
14 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
15 172-4505 Screw $8.83 1 usually ships 17-28 days
16 172-1274 Screw 4-40 x 1 hex head $9.27 2 usually ships 17-28 days
17 999-0479 Washer #4 internal star lock zinc plated $0.99 2 ships same day
18 172-4628 Snap switch (OBSOLETE) (SEE NOTE) $42.39 1 usually ships 17-28 days
19 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
21 999-0062 Nut 10-24 hex $0.99 3 ships same day
22 472-6792 TERMINAL RING 8 TR336 $12.31 2 usually ships 17-28 days
23 172-2209 Raw trim $13.40 1 usually ships 17-28 days
24 472-5259 RELAY MOUNT $19.36 1 usually ships 17-28 days
25 999-0916 Screw 8-32 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
26 272-7196 Relay (OBSOLETE) $170.50 1 usually ships 17-28 days
N/S 172-4513 Wire connector $11.69 1 usually ships 1-5 days
N/S 472-5262 WIRE ASM-14 AWG X 10 BLACK $9.13 1 usually ships 17-28 days
N/S 472-5261 WIRE ASM-16 AWG X 7 RED $7.92 1 usually ships 17-28 days
