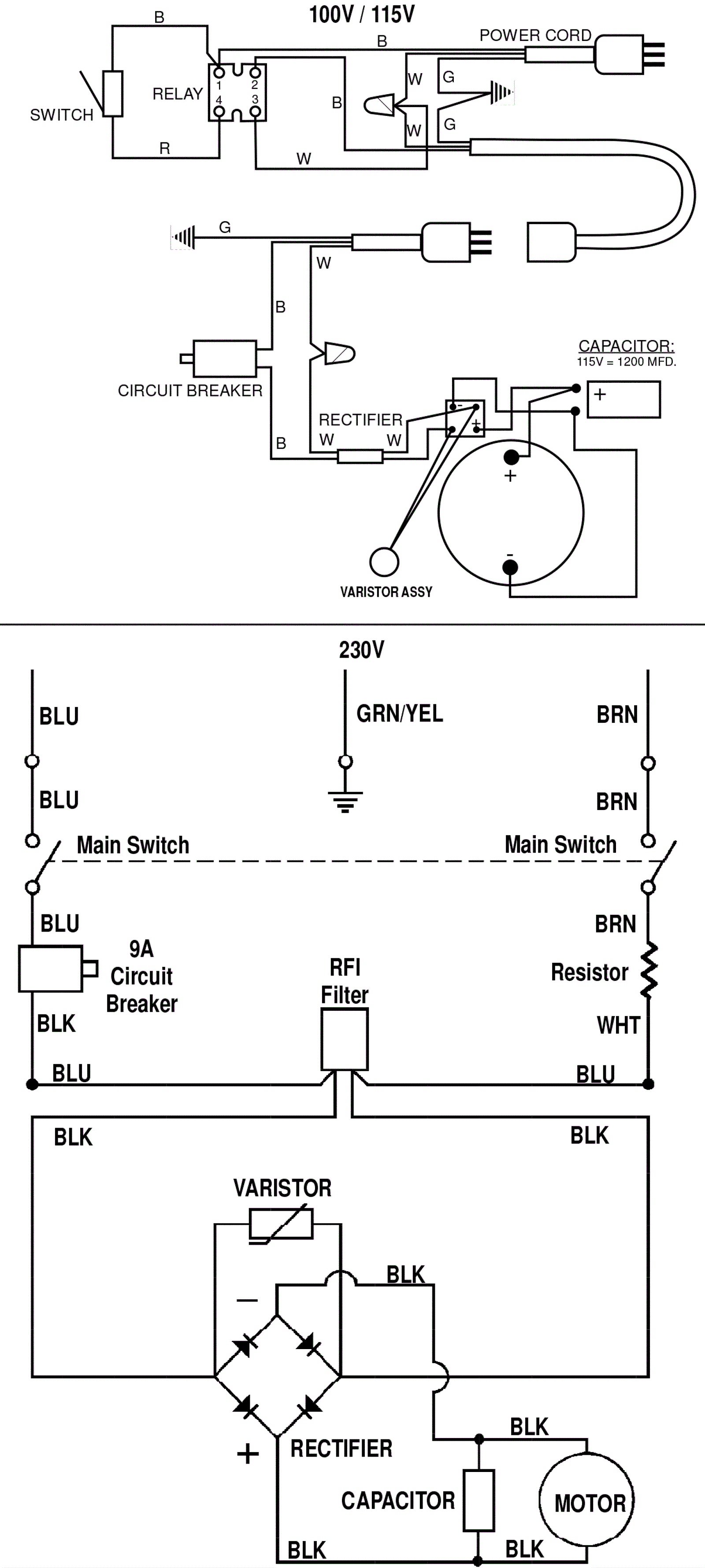

MATADOR 20 Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
172-1758 Capacitor $142.30 1 usually ships 16-41 days
172-9572 15amp circuit breaker $75.10 1 usually ships 16-41 days
991-8539 15amp circuit breaker $7.74 1 (NON-OEM) ships same day
172-2160 10amp circuit breaker $75.10 1 usually ships 16-41 days
172-0270 Snap switch $47.30 1 (before SN 279789) usually ships 5-10 days
172-4628 Snap switch (OBSOLETE) (SEE NOTE) $42.39 1 (after SN 279788) usually ships 16-41 days
172-3595 115V 1.5HP brush motor $2,311.11 1 (100V and 115V) usually ships 1-5 days
372-3711 230V motor (OBSOLETE) Call for price 1 (230V) usually ships 16-41 days
172-3596 Carbon brush (pkg of 2) (OBSOLETE) $106.08 1 (100V and 115V) usually ships 16-41 days
172-3597 Motor brush set (OBSOLETE) $97.24 1 (230V) usually ships 1-5 days
172-4139 35amp rectifier $13.40 1 ships same day
272-1691 Varistor $44.79 1 (100V and 115V) usually ships 1-5 days
272-1691 Varistor $44.79 1 (230V) usually ships 1-5 days
272-7196 Relay (OBSOLETE) $170.50 1 (100V and 115V) (after SN 1934918) usually ships 16-41 days
172-3598 End bell assembly (OBSOLETE) $206.71 1 (100V and 115V) usually ships 1-5 days
172-3594 Resistor (OBSOLETE) $62.37 1 (230V) usually ships 1-5 days
172-3628 Filter assembly (OBSOLETE) $134.24 1 (230V) usually ships 1-5 days
172-4094 Terminal block $9.02 1 (230V) usually ships 16-41 days
