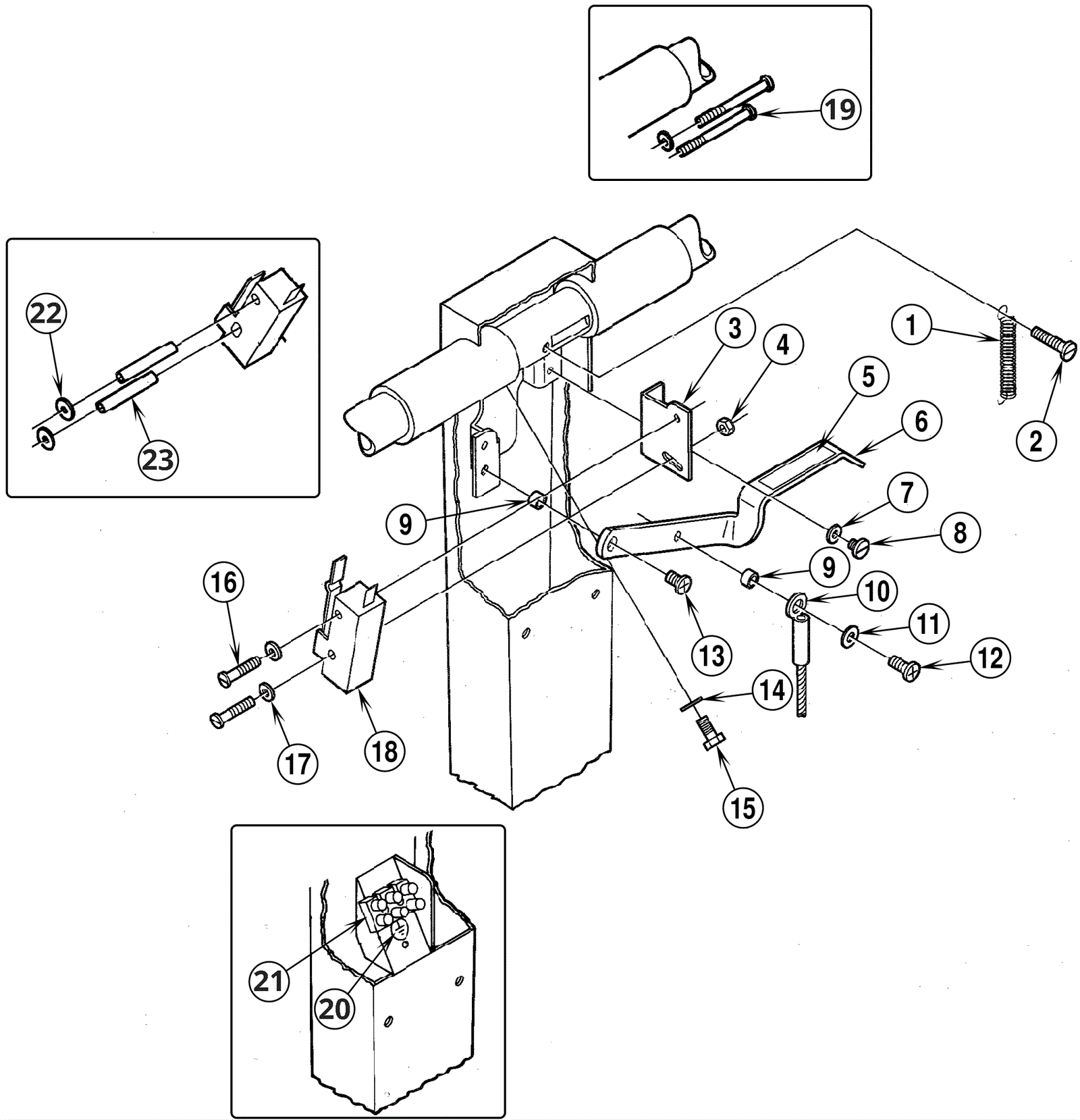

MATADOR 20 Handle Assembly-Rear View

#PartDescriptionPriceReqNotesAvailability
1 172-4506 Extension spring (OBSOLETE) $13.40 1 usually ships 16-41 days
2 372-3705 Screw #8-32 x 7/8 (OBSOLETE) Call for price 1 usually ships 16-41 days
3 172-4507 Bracket $17.06 1 (100V and 115V) usually ships 16-41 days
5 172-5019 Handle decal $19.45 1 (100V and 115V) usually ships 16-41 days
6 172-4514 Lever (OBSOLETE) $59.92 1 usually ships 16-41 days
7 999-1083 Washer #8 internal star lock stainless steel $0.99 2 (100V and 115V) ships same day
8 999-1423 Screw #8-32 x 1/4 pan head phillips stainless steel $0.99 2 (100V and 115V) ships same day
9 172-4064 Bushing $13.40 2 usually ships 16-41 days
10 172-4504 Wire rope assembly $61.41 1 usually ships 16-41 days
11 172-4512 Washer 17/64 x 1/2 bowed $10.56 1 usually ships 1-5 days
12 999-0545 Screw 10-24 x 1/2 pan head phillips self-tapping $0.99 1 ships same day
13 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 1 ships same day
14 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 ships same day
15 172-4505 Screw $8.83 1 usually ships 16-41 days
16 999-0299 Screw 4-40 x 7/8 pan head phillips stainless steel $0.99 2 (100V and 115V) ships same day
17 999-0985 Washer #4 SAE flat $0.99 2 ships same day
18a 172-0270 Snap switch $47.30 1 (before SN 279789) usually ships 5-10 days
18b 172-4628 Snap switch (OBSOLETE) (SEE NOTE) $42.39 1 (after SN 279788) usually ships 16-41 days
19 372-3706 Screw #4-40 x 1 3/4 (OBSOLETE) Call for price 2 (230V) usually ships 16-41 days
20 172-5024 Ground symbol decal $11.99 1 (230V) usually ships 1-5 days
21a 172-4094 Terminal block $9.02 1 (230V) usually ships 16-41 days
21b 999-0455 Screw 4-40 x 5/8 pan head phillips zinc plated $0.99 2 (230V) (for 21a) ships same day
22 272-1479 Washer fiber $8.80 2 (230V) usually ships 1-5 days
23 172-3573 Sleeve (OBSOLETE) $5.94 2 (230V) usually ships 1-5 days
N/S 172-4513 Wire connector $11.69 1 (100V and 115V) usually ships 1-5 days
N/S 172-6196 Cable tie $11.99 1 (230V) usually ships 1-5 days
