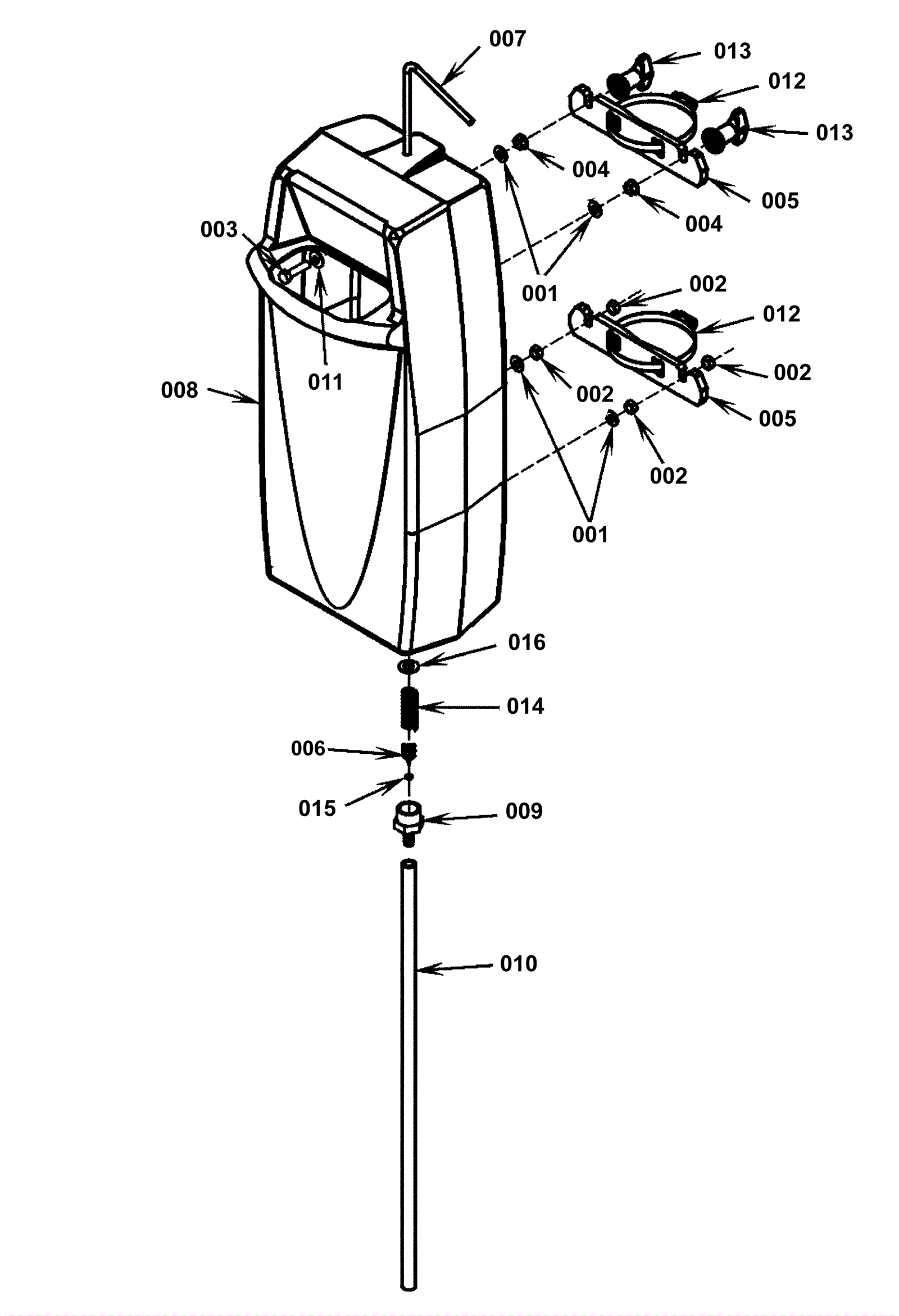

| # | Part | Description |
Req | Notes | Availability |
|---|
000a |
N/A
|
Not available |
1 |
(Solution tank kit) |
|
000b |
N/A
|
Not available |
1 |
(Instruction sheet) |
|
001 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
002 |
999-0278
|
Nut 5/16-18 nylon insert lock jam zinc plated |
4 |
|
|
003 |
999-0688
|
Bolt 5/16-18 x 1 1/4 hex head stainless steel |
4 |
|
|
004 |
999-0525
|
Nut 5/16-18 flange lock serrated zinc plated |
2 |
|
|
005 |
172-1945
|
Strap |
2 |
|
|
006 |
172-1946
|
Plug (OBSOLETE) |
1 |
|
|
007 |
172-1947
|
Valve handle |
1 |
|
|
008 |
N/A
|
Not available |
1 |
(Solution tank) |
|
009 |
172-1949
|
Adapter barb 3/8 x 3/4 NPT |
1 |
|
|
010 |
209-0040
|
Hose 3/8 x 24 inch |
1 |
|
|
011 |
172-1950
|
Washer 5/16 sealine stainless steel |
4 |
|
|
012 |
997-2009
|
Hose clamp |
2 |
|
|
013 |
172-4099
|
Nut 5/16-18 thumb |
2 |
|
|
014 |
172-0377
|
Spring |
1 |
|
|
015 |
172-1951
|
O-ring |
1 |
|
|
016 |
999-0328
|
Washer 7/16 USS flat |
1 |
|
|
