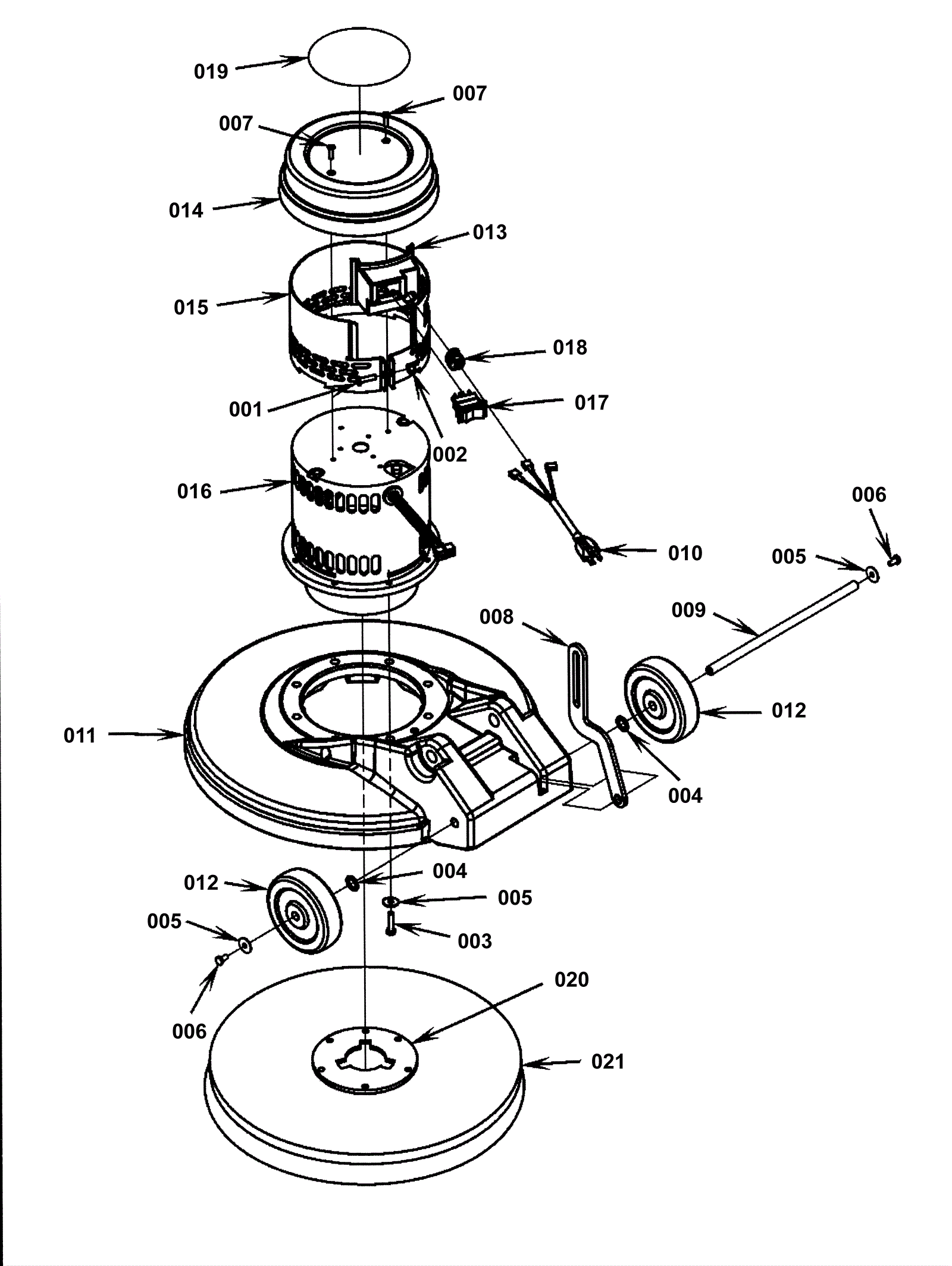

SHADOW 17 2 SPEED Base System

#PartDescriptionPriceReqNotesAvailability
001 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated $0.99 1 ships same day
002 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 1 ships same day
003 999-0136 Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated $0.99 8 ships same day
004 172-4550 Washer 33/64 x 1/64 bowed $10.90 2 usually ships 16-41 days
005 172-0553 Washer 17/64 x 1/16 flat $9.60 10 usually ships 16-41 days
006 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 2 ships same day
007 999-0400 Screw 10-24 x 1 pan head phillips zinc plated $0.99 2 ships same day
008 172-0932 Latch arm $26.51 1 usually ships 1-5 days
009 172-3049 Axle (OBSOLETE) $46.00 1 usually ships 16-41 days
010 172-0894 Cord set (OBSOLETE) $41.00 1 usually ships 16-41 days
011a 172-0933 17 spin base (OBSOLETE) $105.30 1 usually ships 1-5 days
011b 172-0934 20 spin base (OBSOLETE) $247.32 1 usually ships 1-5 days
012 172-3050 5 inch wheel $24.23 2 usually ships 7-17 days
013 172-0895 Switch housing (OBSOLETE) $41.58 1 usually ships 1-5 days
014 172-3104 Motor cover (OBSOLETE) $75.80 1 usually ships 16-41 days
015 172-0896 Screen (OBSOLETE) $499.50 1 usually ships 1-5 days
016a 172-0898 Motor assembly 2 speed 115 volts (OBSOLETE) $1,380.24 1 usually ships 1-5 days
016b 172-0897 Screw 1/4-28 x 7 hex head (OBSOLETE) $7.78 2 usually ships 1-5 days
016c N/A Not available Call for price 1 Not available - Bushing/Grommet rubber usually ships 3-26 days
016d 172-0900 Washer spring (OBSOLETE) $5.72 1 usually ships 1-5 days
016e 172-0901 Stamped fan (OBSOLETE) $5.40 1 usually ships 1-5 days
016f N/A Not available Call for price 1 Not available - Bearing usually ships 3-26 days
016g 181-0759 Complete commutator assembly (OBSOLETE) $5.40 1 usually ships 1-5 days
016h 172-0903 Speed control lead assembly $317.47 1 usually ships 1-5 days
016i 172-0904 Cover (OBSOLETE) $108.00 1 usually ships 1-5 days
016j 172-0905 Brush ring lead complete (OBSOLETE) $364.50 1 usually ships 1-5 days
016k 172-0906 Brush ring assembly (OBSOLETE) $55.62 1 usually ships 1-5 days
016l 172-0907 Brush spring (OBSOLETE) $6.80 4 usually ships 1-5 days
016m 172-0908 Brush assembly $63.00 2 usually ships 1-5 days
016n 172-0909 Complete stat assembly (OBSOLETE) $5.40 1 usually ships 1-5 days
016o 172-0910 Complete arm assembly (OBSOLETE) $969.84 1 usually ships 1-5 days
016p 172-4139 35amp rectifier $12.18 1 usually ships 16-41 days
017 172-8217 Rocker switch (OBSOLETE) $44.38 1 usually ships 16-41 days
018 172-4595 Strain relief $12.18 1 usually ships 16-41 days
019a N/A Not available Call for price 1 (17 inch cover decal) usually ships 3-26 days
019b N/A Not available Call for price 1 (20 inch cover decal) usually ships 3-26 days
021a 996-0070 17 inch pad driver $51.75 1 usually ships 6-18 days
021b 996-0071 19 inch pad driver $63.73 1 ships same day
021c 172-0948 17 inch weight kit (OBSOLETE) $115.56 1 usually ships 1-5 days
021d 172-0949 20 inch weight kit (OBSOLETE) $127.44 1 usually ships 1-5 days
021e 172-4615 Padholder assembly 17 NP-92 $400.34 1 usually ships 1-5 days
021f 996-0901 Pad driver $407.02 1 usually ships 1-5 days
021x 996-0372 Big mouth pad holder (left hand thread) $15.78 1 ships same day
