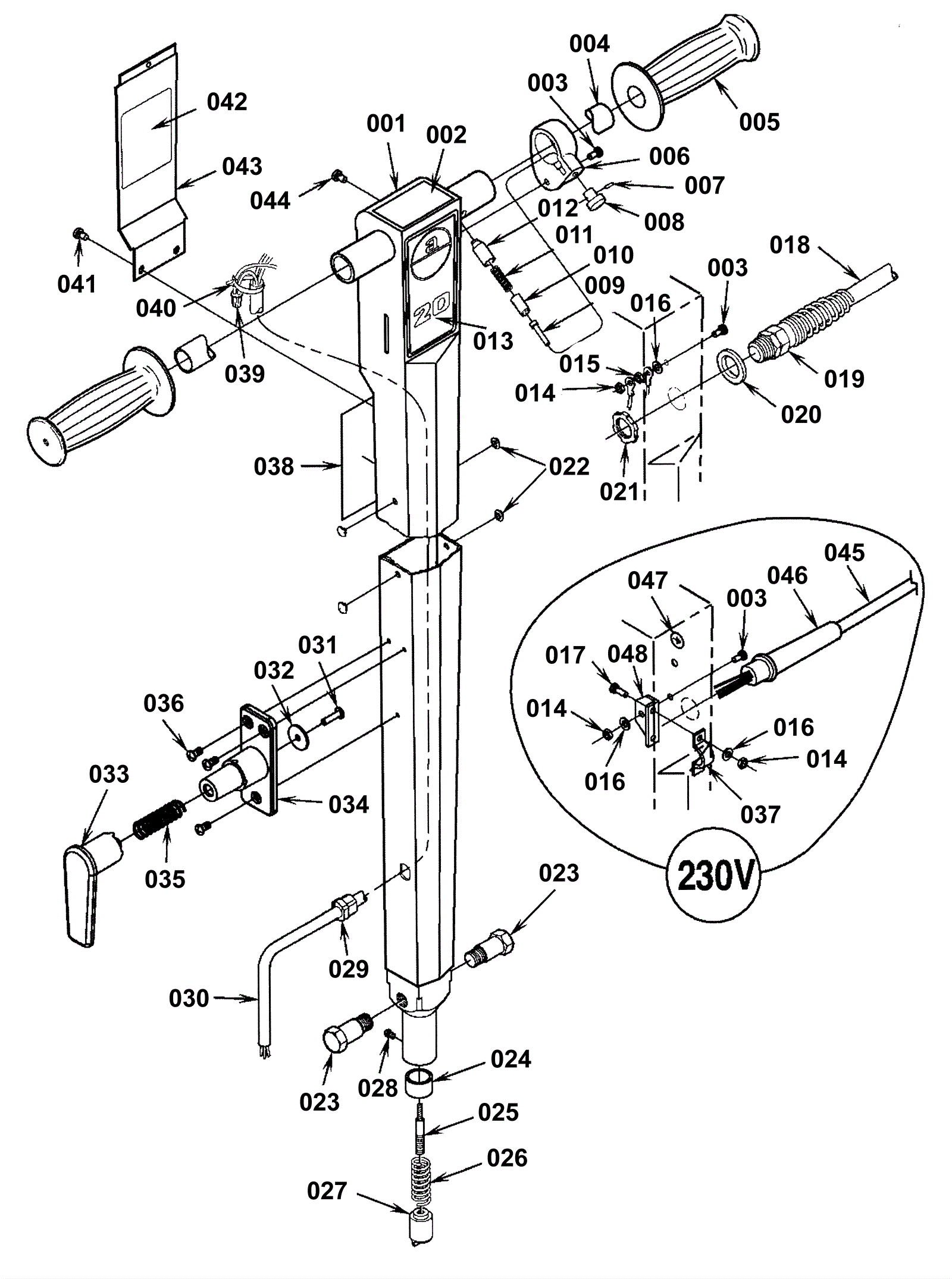

PACEMAKER 17 Handle Assembly Front View

#PartDescriptionPriceReqNotesAvailability
000 172-4501 Handle assembly (OBSOLETE) $1,071.58 1 usually ships 1-5 days
001 172-3555 Handle weldment (OBSOLETE) $515.46 1 usually ships 1-5 days
002 172-5023 Warning decal (OBSOLETE) $14.95 1 usually ships 1-5 days
003a 999-0462 Screw 8-32 x 1/2 pan head slotted zinc plated $0.99 2 ships same day
003b 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
004 172-4629 Handle tube (yellow) (OBSOLETE) $124.63 1 usually ships 1-5 days
005a 164-0304 Handle grip $71.48 2 usually ships 1-5 days
005b 991-8571 Handle grip $2.91 2 (NON-OEM) ships same day
006 172-4525 Collar $24.96 1 usually ships 1-5 days
007 172-4527 Spring pin $11.99 1 usually ships 1-5 days
008 172-4526 Knob $11.99 1 usually ships 1-5 days
009 172-4630 Pin $35.09 1 usually ships 16-41 days
010 172-4631 Plunger (OBSOLETE) $21.01 1 usually ships 16-41 days
011 172-4632 Spring $10.56 1 usually ships 16-41 days
012 172-4633 Bushing $44.99 1 usually ships 16-41 days
013 172-3040 Logo decal (OBSOLETE) $14.95 1 usually ships 16-41 days
014 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
015 999-1036 Nut 8-32 hex NTM nylon insert jam lock stainless steel $0.99 1 ships same day
016 999-0092 Washer #8 internal star lock zinc plated $0.99 1 ships same day
017 999-0697 Screw 8-32 x 3/4 pan head phillips stainless steel $0.99 2 ships same day
018a 172-4533 14/3 power cord 50 foot $233.93 1 usually ships 16-41 days
018b 991-5005 14/3 replacement power cord 50 foot (yellow) $108.51 1 (NON-OEM) ships same day
019 172-4534 Strain relief $72.26 1 usually ships 16-41 days
020 172-4535 Washer flat steel $33.00 1 usually ships 1-5 days
021 172-4536 Nut 1/2-14 conduit lock $11.99 1 usually ships 16-41 days
022 172-4518 Button plug $10.23 4 usually ships 1-5 days
023 172-4520 Shoulder bolt $13.70 2 usually ships 16-41 days
024 172-4636 Bushing $14.47 1 usually ships 1-5 days
025 172-4504 Wire rope assembly $61.41 1 usually ships 16-41 days
026 172-4637 Spring $37.62 1 usually ships 16-41 days
027 172-4522 Plunger $105.27 1 usually ships 16-41 days
028 172-4623 Screw 4-40 x 1/4 drive round head $10.52 1 usually ships 1-5 days
029 172-4595 Strain relief $13.40 1 usually ships 16-41 days
030a 172-4519 Cord set $39.30 1 usually ships 16-41 days
030b 172-4638 Cord hook assembly $57.08 1 usually ships 16-41 days
031 999-0898 Screw 10-16 x 3/4 pan head phillips stainless steel type B $0.99 1 ships same day
032 999-0588 Washer 7/8 flat stainless steel $11.44 1 ships same day
033 172-4638 Cord hook assembly $57.08 1 usually ships 16-41 days
034 172-4638 Cord hook assembly $57.08 1 usually ships 16-41 days
035 172-4641 Spring $8.80 1 usually ships 1-5 days
036 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated $0.99 3 ships same day
037 N/A Not available Call for price 1 (Clamp) usually ships 3-26 days
038 172-5020 Warning decal (OBSOLETE) $14.95 1 usually ships 16-41 days
039 172-4513 Wire connector $11.69 1 usually ships 1-5 days
040 997-2101 6 inch cable tie $0.99 1 ships same day
041 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 2 ships same day
042 172-4642 Important decal (OBSOLETE) $14.95 1 usually ships 1-5 days
043 172-4511 Cover $30.40 1 usually ships 16-41 days
044 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 1 ships same day
045 N/A Not available Call for price 1 (230v cordset) usually ships 3-26 days
046 172-4539 Strain relief (OBSOLETE) $18.15 1 usually ships 1-5 days
047 172-5024 Ground symbol decal $11.99 1 usually ships 1-5 days
048 N/A Not available Call for price 1 usually ships 3-26 days
