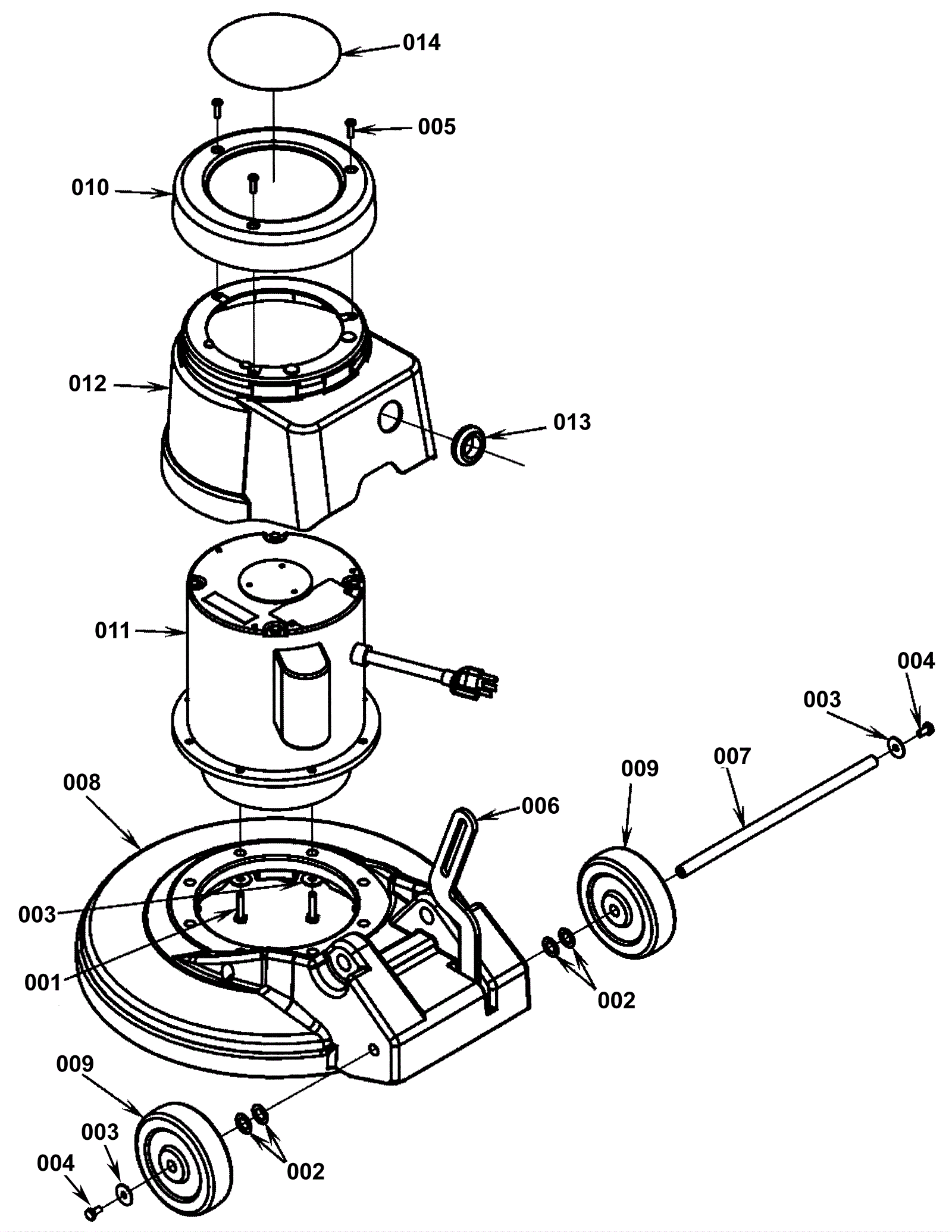

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
8 |
|
|
002 |
172-4550
|
Washer 33/64 x 1/64 bowed |
4 |
|
|
003 |
172-0553
|
Washer 17/64 x 1/16 flat |
10 |
|
|
004 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
005 |
999-0400
|
Screw 10-24 x 1 pan head phillips zinc plated |
3 |
|
|
006 |
172-0932
|
Latch arm |
1 |
|
|
007 |
172-3049
|
Axle (OBSOLETE) |
1 |
|
|
008a |
172-0933
|
17 spin base (OBSOLETE) |
1 |
|
|
008b |
172-0934
|
20 spin base (OBSOLETE) |
1 |
|
|
009 |
172-3050
|
5 inch wheel |
2 |
|
|
010 |
172-0935
|
Motor cover (OBSOLETE) |
1 |
|
|
011a |
172-0936
|
Motor/Gearbox 1 1/4hp (OBSOLETE) |
1 |
|
|
011b |
172-0937
|
Front bearing (OBSOLETE) |
1 |
|
|
011c |
N/A
|
Not available |
1 |
Stationary switch |
|
011d |
N/A
|
Not available |
1 |
Rotor switch |
|
011e |
172-0940
|
Start capacitor (OBSOLETE) |
1 |
|
|
011f |
172-0941
|
Gear head assembly (OBSOLETE) |
1 |
|
|
011g |
172-0942
|
13 teeth pinion (OBSOLETE) |
1 |
|
|
011h |
170-0694
|
Odum coupling |
1 |
|
|
011i |
N/A
|
Not available |
1 |
Motor/gearbox 1.50 hp |
|
012 |
172-0945
|
Shroud (OBSOLETE) |
1 |
|
|
013 |
172-8310
|
Grommet |
1 |
|
|
014 |
N/A
|
Not available |
1 |
(Decal) |
|
N/S |
172-0949
|
20 inch weight kit (OBSOLETE) |
1 |
|
|
N/S |
996-0372
|
Big mouth pad holder (left hand thread) |
1 |
|
|
N/S |
172-0948
|
17 inch weight kit (OBSOLETE) |
1 |
|
|
