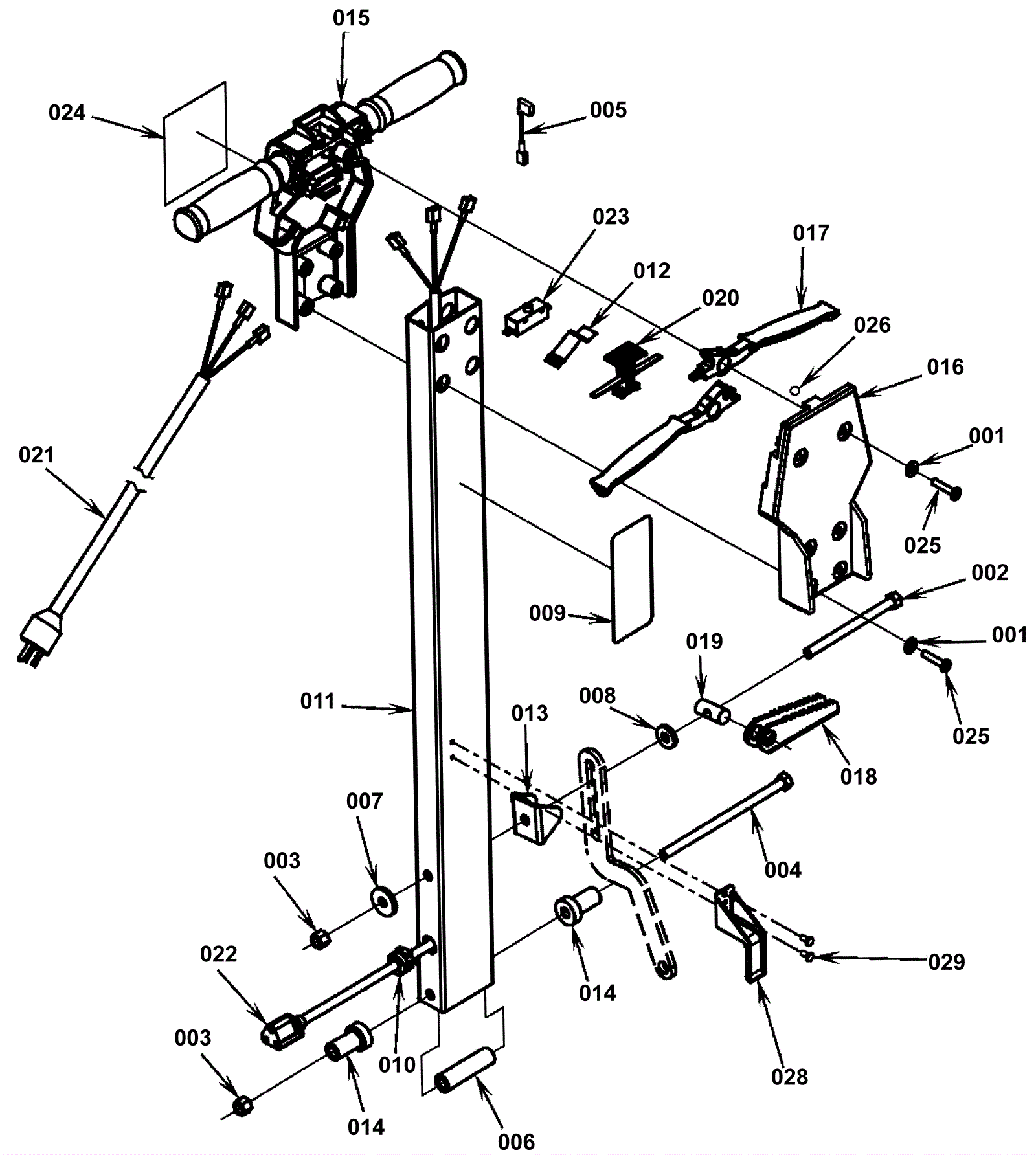

Handle System

#PartDescription ReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated 6
002 172-1938 Bolt 3/8-16 x 5 hex head 1
003 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
004 472-3556 SCR-HEX SS 3/8-16 X 7.0 1
005 172-3629 Wire assembly (OBSOLETE) 1
006 172-3630 Spacer (OBSOLETE) 1
007 172-1939 Washer 13/32 x 1 1/4 x 5/32 1
008 172-1940 Washer 13/32 x 1 x 5/32 flat 1
009 172-5020 Warning decal (OBSOLETE) 1
010 172-4595 Strain relief (OBSOLETE) 1
011 172-0603 Handle tube (OBSOLETE) 1
012 172-3100 Spring plate 1
013 172-1941 Bracket 1
014 172-3088 Bushing 2
015a 172-3089 Handle (OBSOLETE) 1
016a 172-3090 Handle cover (OBSOLETE) 1
017 172-4663 Handle lever (OBSOLETE) 2
018 172-1942 Latch arm (OBSOLETE) 1
019 172-1943 Pin 1
020 172-3091 Locking button 1
021a 192-8472 14/3 replacement power cord 50 foot (OBSOLETE) 1
021b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
021c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
022 172-3092 Cord assembly 14/3 42 inch 1
023 172-3093 Switch 1
024 172-3102 Logo decal (OBSOLETE) 1
025 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
026 172-3103 1/4 ball bearing stainless steel 1
028 172-6036 Cord hook (OBSOLETE) 1
029 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc 2
