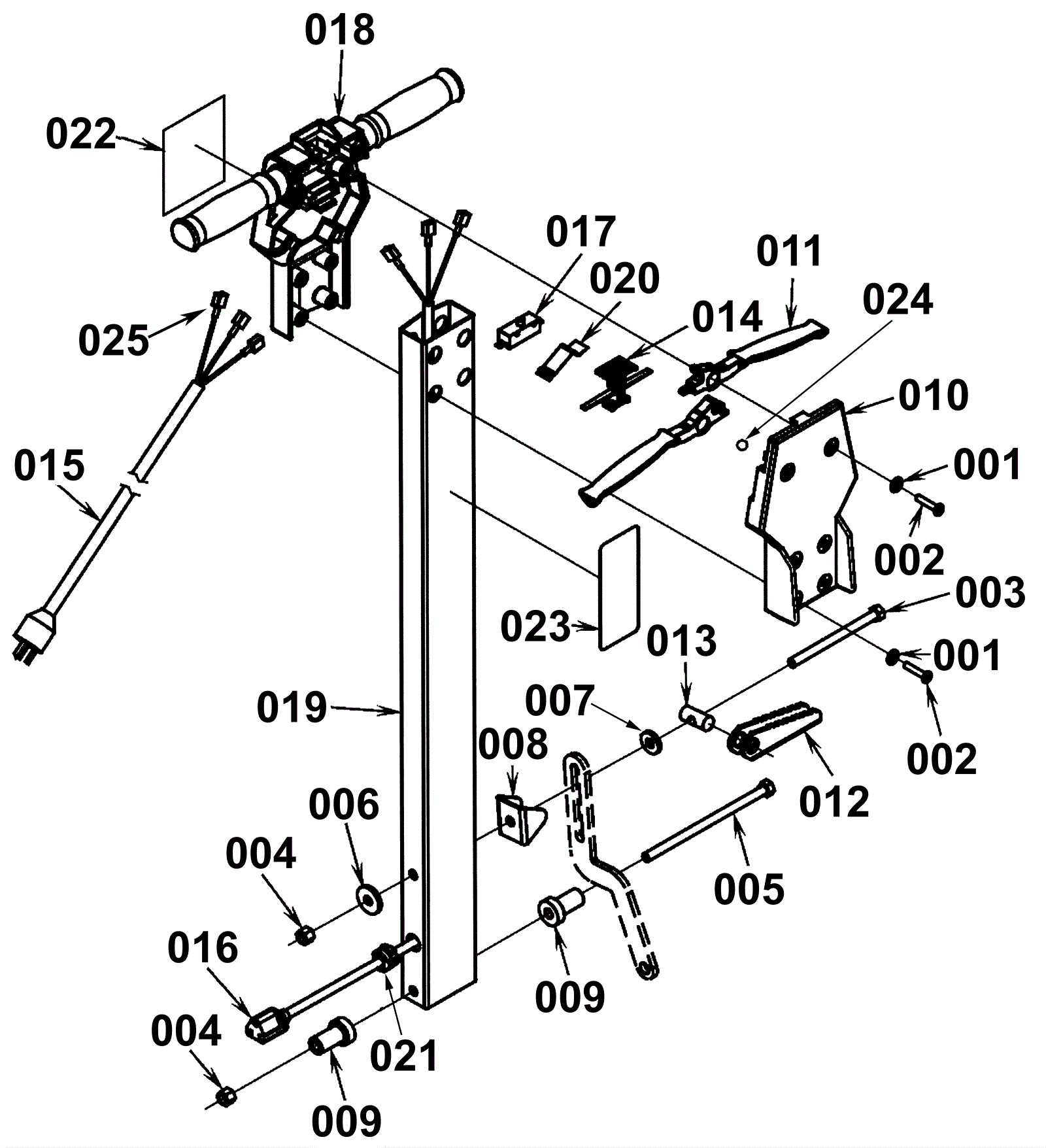

Handle System

#PartDescription ReqNotesAvailability
001 999-0123 Washer 1/4 SAE flat zinc plated 6
002 999-0510 Screw 1/4-20 x 1 pan head phillips zinc plated 6
003 172-1938 Bolt 3/8-16 x 5 hex head 1
004 999-0188 Nut 3/8-16 nylon insert lock zinc plated 2
005 472-3556 SCR-HEX SS 3/8-16 X 7.0 1
006 172-1939 Washer 13/32 x 1 1/4 x 5/32 1
007 172-1940 Washer 13/32 x 1 x 5/32 flat 1
008 172-1941 Bracket 1
009 172-3088 Bushing 2
010 172-3090 Handle cover (OBSOLETE) 1
011 172-4663 Handle lever (OBSOLETE) 2
012 172-1942 Latch arm (OBSOLETE) 1
013 172-1943 Pin 1
014 172-3091 Locking button 1
015a 192-8472 14/3 replacement power cord 50 foot (OBSOLETE) 1
015b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM) (does not include strain relief)
015c 991-5001 14/3 extension cord 50 foot (yellow) 1 (NON-OEM)
016 172-3092 Cord assembly 14/3 42 inch 1
017 172-3093 Switch 1
018 172-3089 Handle (OBSOLETE) 1
019 172-0603 Handle tube (OBSOLETE) 1
020 172-3100 Spring plate 1
021 172-4595 Strain relief (OBSOLETE) 1 (.430)
022 172-3102 Logo decal (OBSOLETE) 1
023 172-5020 Warning decal (OBSOLETE) 1
024 172-3103 1/4 ball bearing stainless steel 1
025 998-0017 1/4 female insulated connector 3
