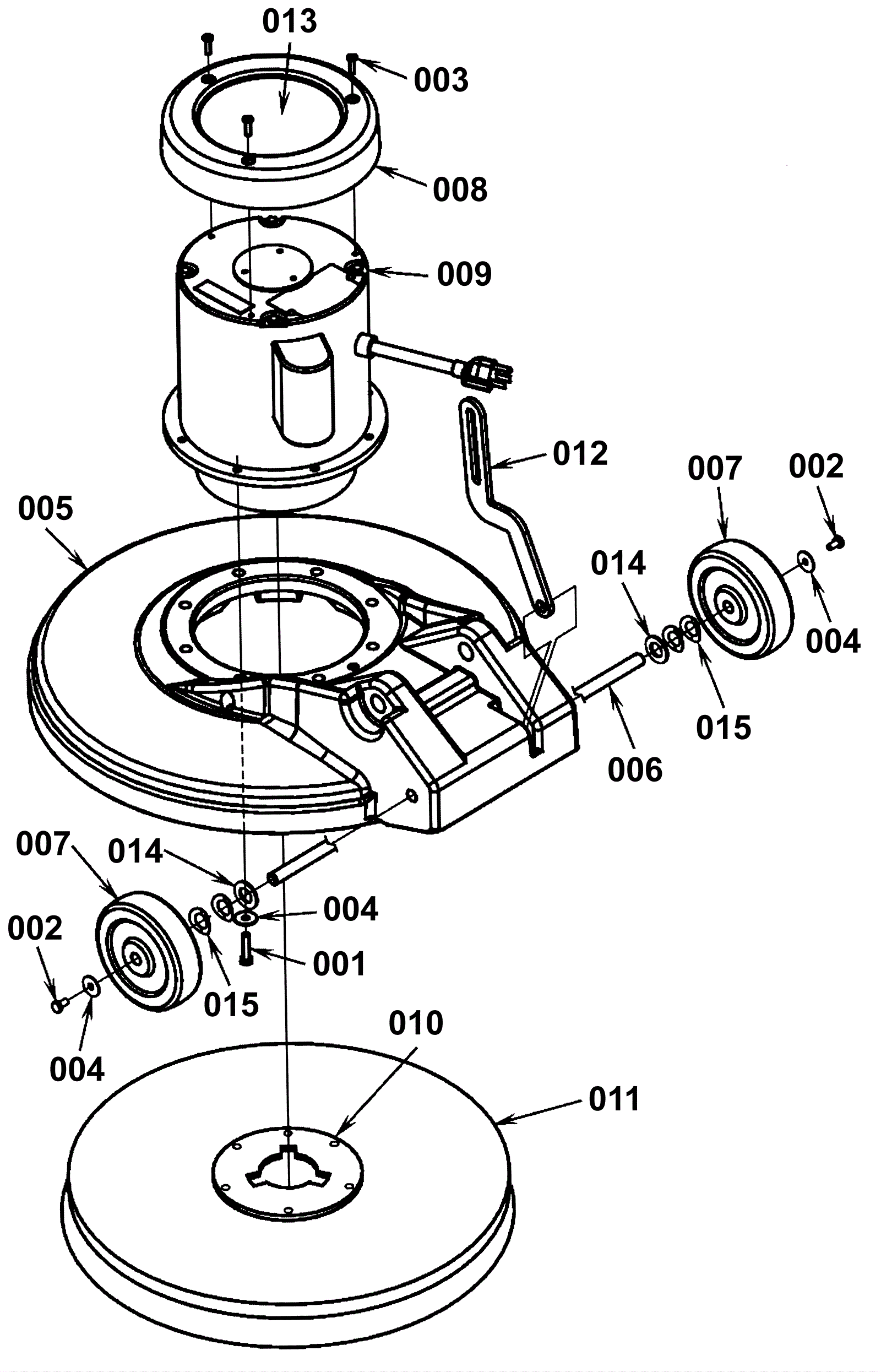

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0136
|
Bolt 1/4-20 x 1 1/4 hex head grade 5 zinc plated |
8 |
|
|
002 |
999-0018
|
Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated |
2 |
|
|
003 |
999-0400
|
Screw 10-24 x 1 pan head phillips zinc plated |
3 |
|
|
004 |
172-0553
|
Washer 17/64 x 1/16 flat |
10 |
|
|
005a |
172-0934
|
20 spin base (OBSOLETE) |
1 |
|
|
005b |
172-0933
|
17 spin base (OBSOLETE) |
1 |
|
|
006 |
172-3049
|
Axle (OBSOLETE) |
1 |
|
|
007 |
172-3050
|
5 inch wheel |
2 |
|
|
008 |
172-0935
|
Motor cover (OBSOLETE) |
1 |
|
|
009a |
172-0936
|
Motor/Gearbox 1 1/4hp (OBSOLETE) |
1 |
|
|
009b |
172-0937
|
Front bearing (OBSOLETE) |
1 |
|
|
009c |
N/A
|
Not available |
1 |
Stationary switch |
|
009d |
N/A
|
Not available |
1 |
Rotor switch |
|
009e |
172-0940
|
Start capacitor (OBSOLETE) |
1 |
|
|
009f |
172-0941
|
Gear head assembly (OBSOLETE) |
1 |
|
|
009g |
172-0942
|
13 teeth pinion (OBSOLETE) |
1 |
|
|
009h |
170-0694
|
Odum coupling |
1 |
|
|
012 |
172-0932
|
Latch arm |
1 |
|
|
013a |
172-1936
|
Decal SD17 (OBSOLETE) |
1 |
|
|
013b |
172-1937
|
Decal SD20 (OBSOLETE) |
1 |
|
|
014 |
172-4548
|
Washer 33/64 x 15/16 x 1/16 flat |
2 |
|
|
015 |
172-4550
|
Washer 33/64 x 1/64 bowed |
4 |
|
|
KIT |
172-0948
|
17 inch weight kit (OBSOLETE) |
1 |
|
|
KIT |
172-0949
|
20 inch weight kit (OBSOLETE) |
1 |
|
|
