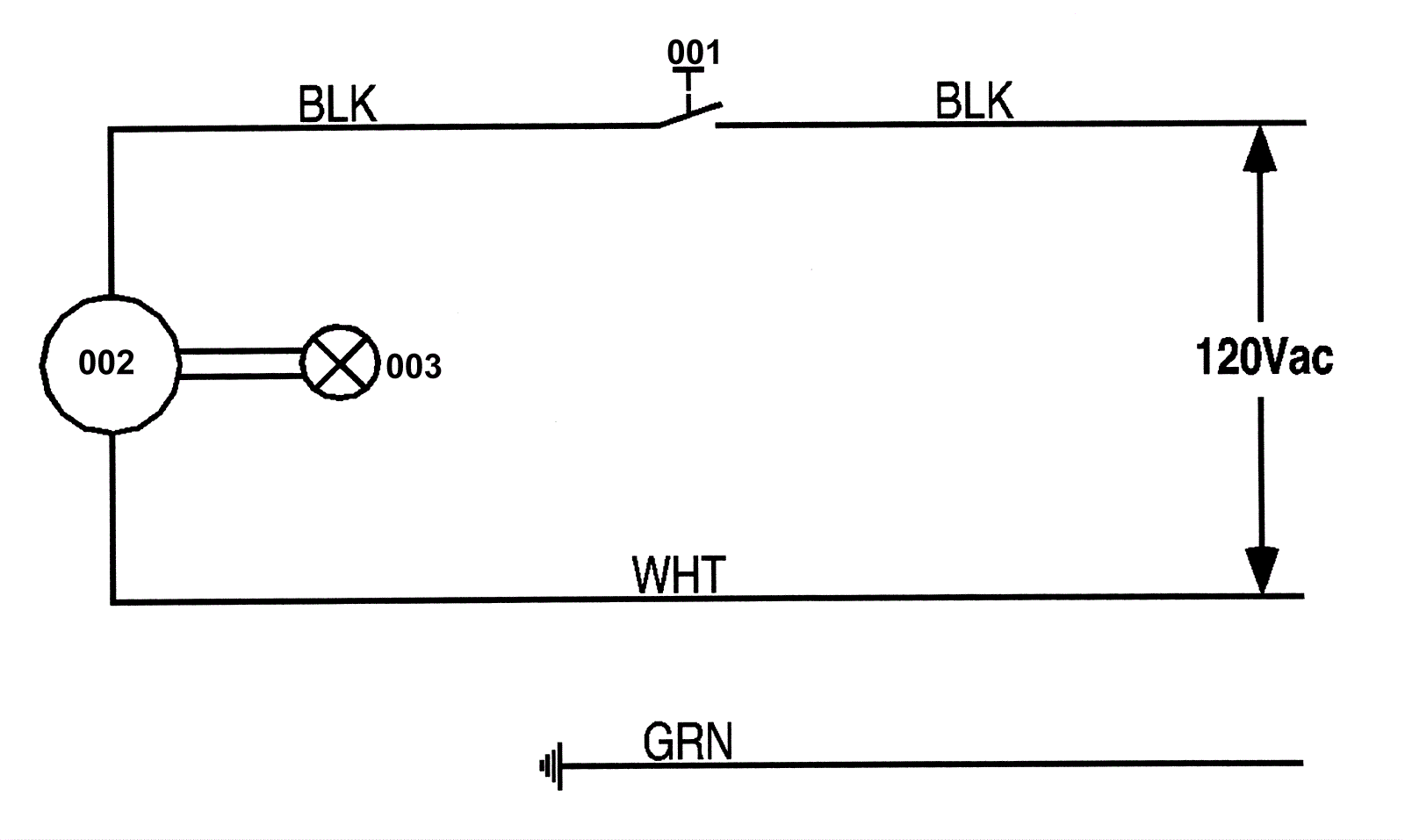

WHIRLAMATIC 20PLUS Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-3093 Switch $15.07 1 ships same day
002 172-3105 Motor 120V $1,760.55 1 usually ships 1-5 days
003 172-3075 Brush wear indicator light 115v (OBSOLETE) $15.70 1 usually ships 16-41 days
