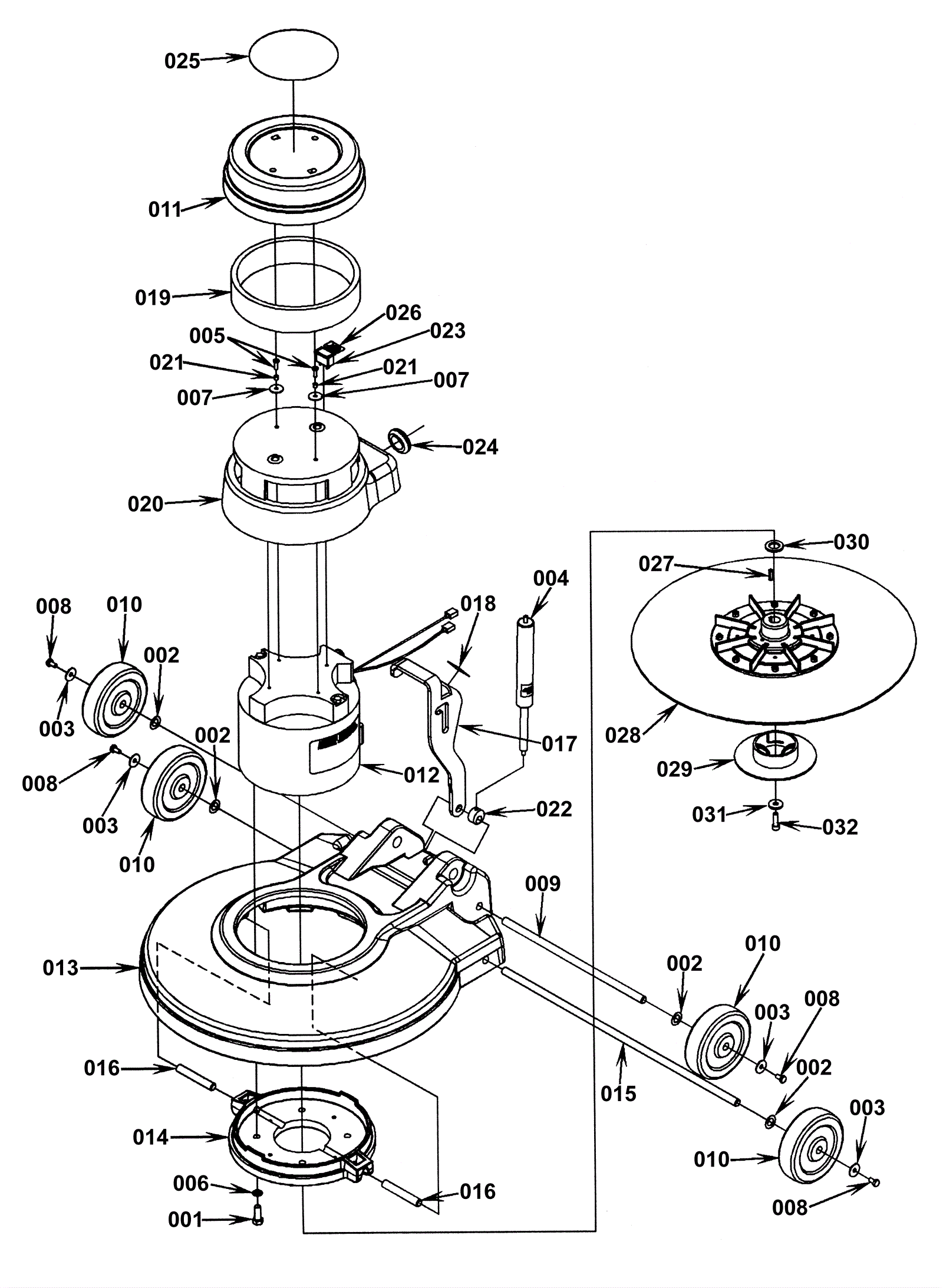

WHIRLAMATIC 20PLUS Base Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 4 ships same day
002 172-4550 Washer 33/64 x 1/64 bowed $11.99 4 usually ships 16-41 days
003 172-0553 Washer 17/64 x 1/16 flat $10.56 4 usually ships 16-41 days
004 172-0602 Gas cylinder $171.88 1 usually ships 16-41 days
005 999-1680 Screw 10-24 x 1 pan thread rolling $0.99 2 usually ships 1-5 days
006 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
007 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
008 272-9727 Screw 1/4-20 x 1/2 hex head lock $11.99 4 usually ships 1-5 days
009 172-3049 Axle (OBSOLETE) $50.60 1 usually ships 16-41 days
010 172-3050 5 inch wheel $26.65 4 usually ships 7-17 days
011 172-3104 Motor cover (OBSOLETE) $83.38 1 usually ships 16-41 days
012 172-3105 Motor 120V $1,760.55 1 usually ships 1-5 days
013 172-3108 Base housing (OBSOLETE) $771.57 1 usually ships 1-5 days
014 172-3109 Motor cup (OBSOLETE) $58.63 1 usually ships 1-5 days
015 172-3110 Axle $45.20 1 usually ships 1-5 days
016 172-3052 Pin $8.83 2 usually ships 1-5 days
017 172-0601 Latch $63.39 1 usually ships 1-5 days
018 172-3071 Grip surface $11.75 1 usually ships 1-5 days
019 172-3055 Filter (OBSOLETE) $11.99 1 usually ships 16-41 days
020 172-3111 Shroud (OBSOLETE) $87.95 1 usually ships 1-5 days
021 172-3054 Bushing $14.47 2 usually ships 16-41 days
022 172-0604 Gas cylinder end fitting $27.06 1 usually ships 1-5 days
023 172-3075 Brush wear indicator light 115v (OBSOLETE) $15.70 1 usually ships 16-41 days
024 172-8310 Grommet $11.99 1 usually ships 1-5 days
025 172-5502 20 Plus cover decal (OBSOLETE) $15.95 1 usually ships 1-5 days
026 172-3048 Brush wear indicator decal (OBSOLETE) $16.25 1 usually ships 16-41 days
027 172-3045 Key $11.99 1 usually ships 1-5 days
028 172-3076 Pad driver assembly (OBSOLETE) $462.80 1 (includes 029) usually ships 16-41 days
029 996-0372 Big mouth pad holder (left hand thread) $19.72 1 ships same day
030 272-7427 Washer 3/4 x 1 1/4 x 1/8 flat $10.56 1 usually ships 16-41 days
031 172-3047 Washer 11/32 x 1/8 flat $11.99 1 usually ships 16-41 days
032 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish $0.99 1 ships same day
N/S 172-3106 Armature with bearings (OBSOLETE) $455.03 1 usually ships 1-5 days
N/S 174-4057 Carbon brush $17.52 4 usually ships 4-14 days
N/S 172-3107 Carbon brush springs (4) $111.47 1 usually ships 1-5 days
N/S 172-4139 35amp rectifier $13.40 1 ships same day
N/S 172-0435 Top bearing $41.84 1 usually ships 16-41 days
N/S 172-0249 Bottom bearing $28.74 1 ships same day
N/S 172-3060 Commutator bracket (OBSOLETE) $91.83 1 usually ships 1-5 days
N/S 172-8247 Brush board assembly $269.50 1 usually ships 1-5 days
N/S 272-8517 Burnishing pad (tan) (pkg of 5) $46.92 1 usually ships 1-5 days
N/S 372-3695 Union mix brush (OBSOLETE) Call for price 1 usually ships 16-41 days
N/S 372-3696 Tampico brush (OBSOLETE) Call for price 1 usually ships 16-41 days
