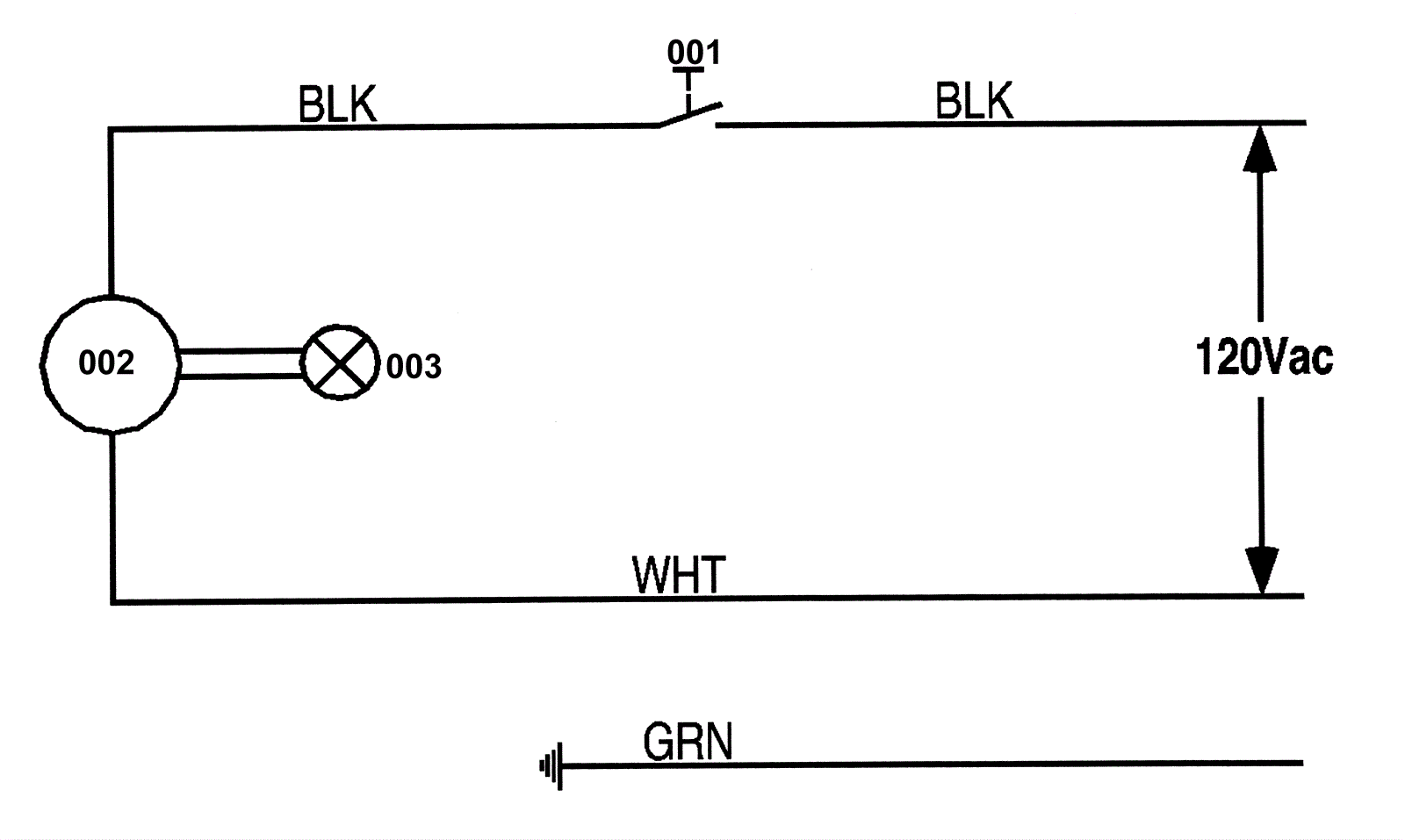

WHIRLAMATIC 20ULTRA Wiring Diagram

#PartDescriptionPriceReqNotesAvailability
001 172-3093 Switch $15.48 1 ships same day
002 172-3056 Motor 120V 1.5HP 2000RPM $1,703.90 1 usually ships 1-5 days
003 172-3075 Brush wear indicator light 115v (OBSOLETE) $15.70 1 usually ships 17-28 days
