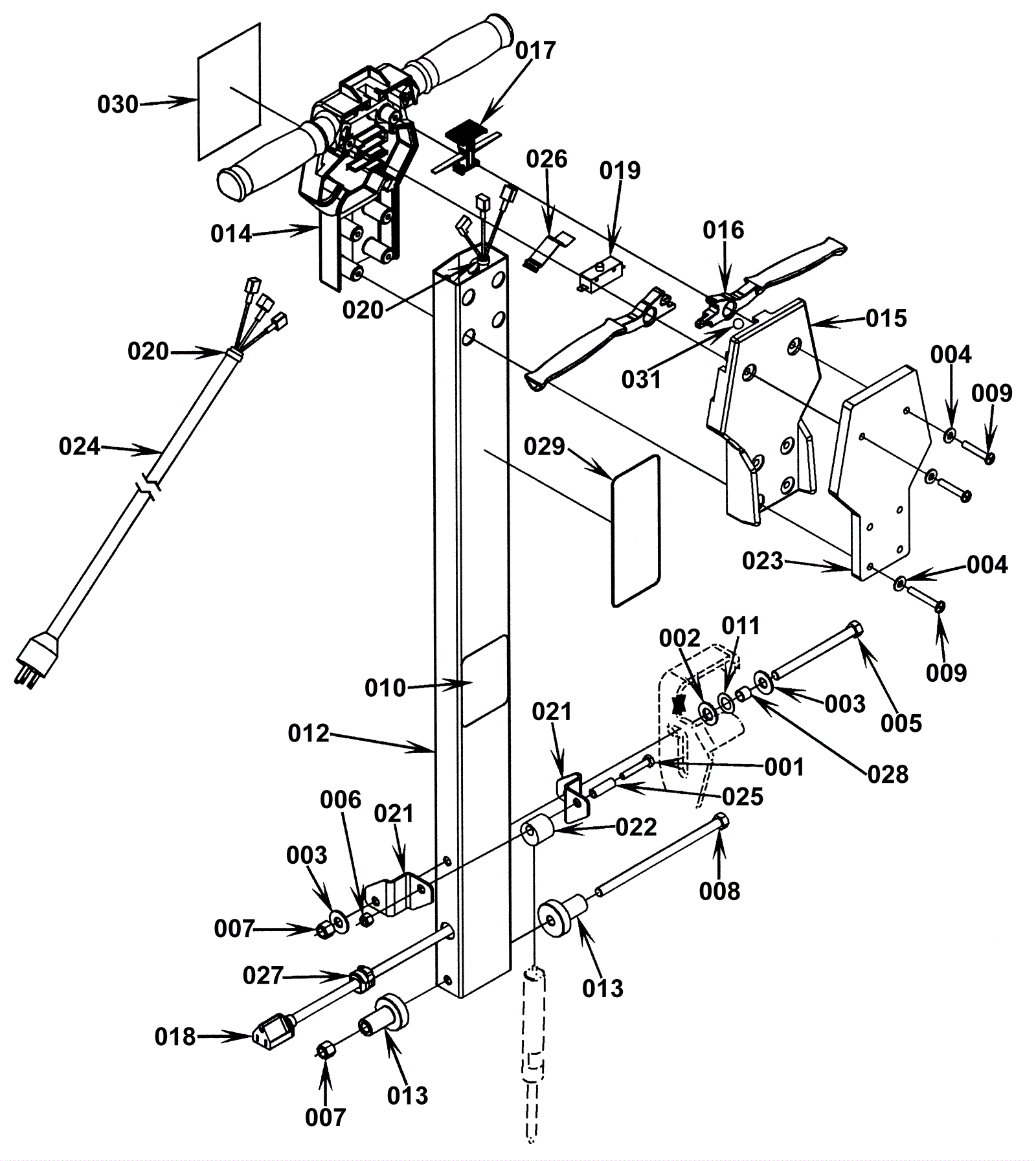

WHIRLAMATIC 20ULTRA Handle System

#PartDescriptionPriceReqNotesAvailability
001 999-1260 Screw 1/4-20 x 1 1/2 hex cap stainless steel $0.99 1 ships same day
002 172-4548 Washer 33/64 x 15/16 x 1/16 flat $5.28 1 ships same day
003 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
004 999-0123 Washer 1/4 SAE flat zinc plated $0.99 6 (before S/N 1403694) ships same day
005 999-1327 Screw 3/8-16 x 4 1/4 hex head $3.06 1 ships same day
006 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
007 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 2 ships same day
008 472-3556 SCR-HEX SS 3/8-16 X 7.0 $9.60 1 usually ships 16-41 days
009a 999-0523 Screw 1/4-20 x 1 1/2 pan head phillips stainless steel $0.99 6 (before S/N 1403694) ships same day
009b 999-1030 Screw 1/4-20 x 2 pan head phillips stainless steel $2.05 6 (after S/N 1403693) ships same day
010 172-3086 Latch decal (OBSOLETE) $10.17 1 usually ships 1-5 days
011 172-4550 Washer 33/64 x 1/64 bowed $10.90 2 (qty was 1 before SN 1874106) usually ships 16-41 days
012a 172-0603 Handle tube $185.50 1 (before S/N 1403694) usually ships 16-41 days
012b 172-3087 Handle tube $95.99 1 (after S/N 1403693) ships same day
013 172-3088 Bushing $29.33 2 usually ships 16-41 days
014 172-3089 Handle (OBSOLETE) $142.40 1 usually ships 16-41 days
015 172-3090 Handle cover $75.39 1 usually ships 16-41 days
016 172-4663 Handle lever (OBSOLETE) $31.51 2 usually ships 16-41 days
017 172-3091 Locking button $13.70 1 ships same day
018 172-3092 Cord assembly 14/3 42 inch $46.62 1 usually ships 16-41 days
019 172-3093 Switch $13.70 1 ships same day
020 172-3300 Patent decal $16.27 1 usually ships 1-5 days
021 172-3094 Bracket $30.71 2 usually ships 1-5 days
022 172-3095 Cylinder mount $37.41 1 usually ships 1-5 days
023 172-3096 Handle weight $78.43 1 usually ships 16-41 days
024a 172-3098 14/3 cord set 75 feet $246.79 1 usually ships 16-41 days
024b 991-5005 14/3 replacement power cord 50 foot (yellow) $86.81 1 (NON-OEM) (does not include strain relief) ships same day
024c 991-5001 14/3 extension cord 50 foot (yellow) $82.58 1 (NON-OEM) ships same day
025 172-3099 Bushing $23.60 1 usually ships 1-5 days
026 172-3100 Spring plate $8.20 1 ships same day
027 172-4595 Strain relief $12.18 1 usually ships 16-41 days
028 172-3101 Bushing $31.51 1 usually ships 1-5 days
029 172-5020 Warning decal (OBSOLETE) $13.59 1 usually ships 16-41 days
030 172-3102 Logo decal (OBSOLETE) $13.59 1 usually ships 1-5 days
031 172-3103 1/4 ball bearing stainless steel $10.90 1 usually ships 16-41 days
