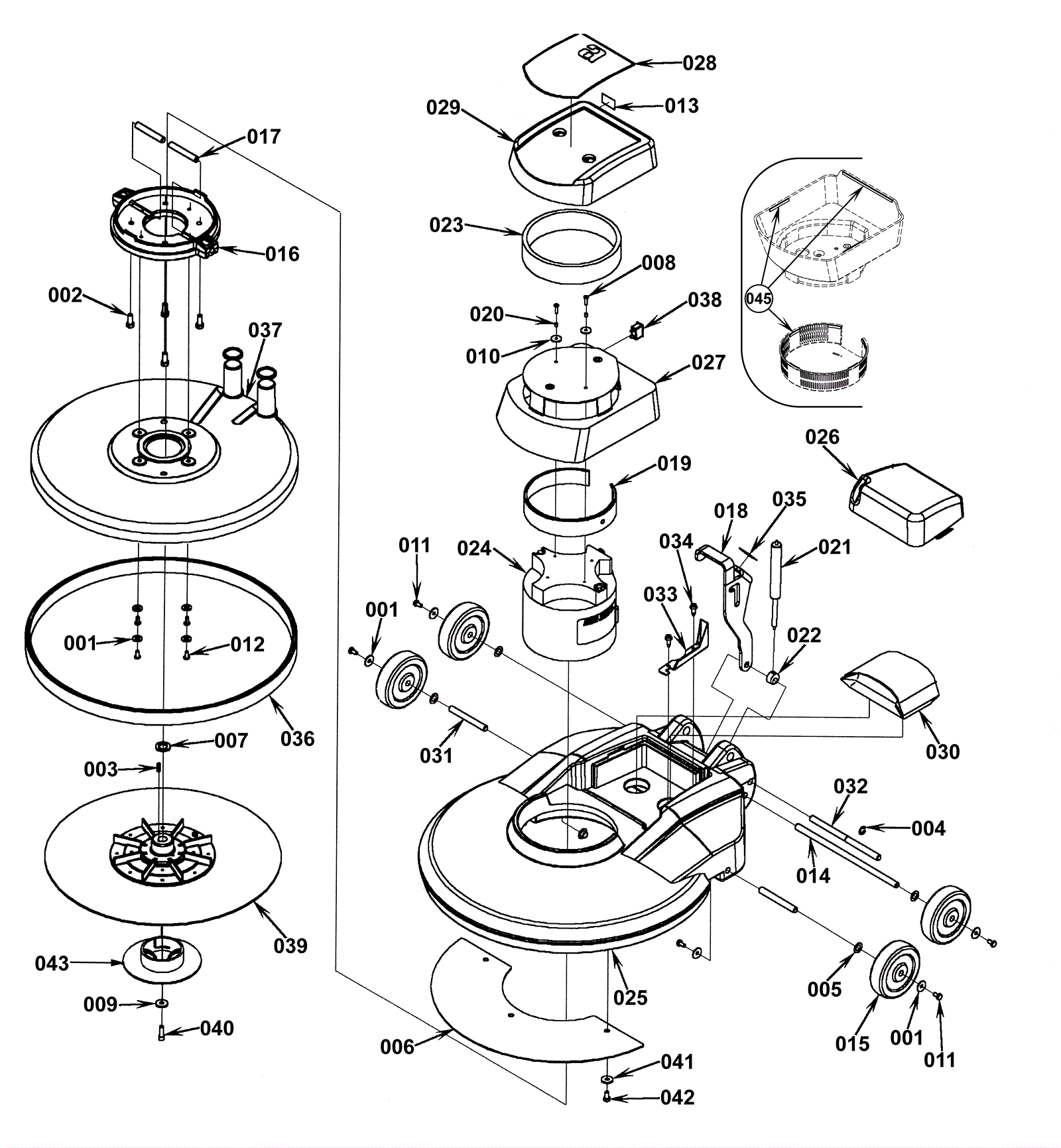

WHIRLAMATIC 20ULTRA Base System

#PartDescriptionPriceReqNotesAvailability
001 172-0553 Washer 17/64 x 1/16 flat $9.60 10 usually ships 16-41 days
002 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 4 ships same day
003 172-3045 Key $10.90 1 usually ships 1-5 days
004 172-0269 Retaining ring $9.60 1 usually ships 16-41 days
005 172-4550 Washer 33/64 x 1/64 bowed $10.90 4 usually ships 16-41 days
006 172-3046 Plate (OBSOLETE) $38.99 1 usually ships 1-5 days
007 999-1134 Washer 1 1/4 flat stainless steel $6.01 1 ships same day
008 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel $0.99 2 ships same day
009 172-3047 Washer 11/32 x 1/8 flat $10.90 1 usually ships 16-41 days
010 999-0588 Washer 7/8 flat stainless steel $11.44 2 ships same day
011 999-0018 Bolt 1/4-20 x 1/2 hex cap grade 5 zinc plated $0.99 6 ships same day
012 999-1129 Screw 1/4-20 x 1/2 pan head phillips thread rolling zinc $0.99 4 ships same day
013 172-3048 Brush wear indicator decal (OBSOLETE) $14.77 1 usually ships 16-41 days
014 172-3049 Axle (OBSOLETE) $46.00 1 usually ships 16-41 days
015 172-3050 5 inch wheel $24.23 4 usually ships 7-17 days
016 172-3051 Cup (OBSOLETE) $201.10 1 usually ships 1-5 days
017 172-3052 Pin $8.03 2 usually ships 1-5 days
018 172-0601 Latch $57.63 1 usually ships 1-5 days
019 172-3053 Motor guard $109.43 1 usually ships 1-5 days
020 172-3054 Bushing $13.15 2 usually ships 16-41 days
021 172-0602 Gas cylinder $156.25 1 usually ships 16-41 days
022 172-0604 Gas cylinder end fitting $24.60 1 usually ships 1-5 days
023 172-3055 Filter (OBSOLETE) $10.90 1 usually ships 16-41 days
024 172-3056 Motor 120V 1.5HP 2000RPM $1,549.00 1 usually ships 1-5 days
025 172-3061 Base housing $780.00 1 usually ships 1-5 days
026 172-3062 Vac shroud (OBSOLETE) $20.22 1 usually ships 16-41 days
027 172-3063 Motor shroud $92.13 1 usually ships 1-5 days
028 172-3064 Cover decal $36.77 1 usually ships 16-41 days
029 172-3065 Motor cover $47.90 1 usually ships 16-41 days
030a 172-3066 Vacuum bag (pkg of 10) $18.96 (OEM) ships same day
030b 991-5146 Vacuum bag (pkg of 10) $7.05 (NON-OEM) ships same day
031 172-3067 Axle pin $54.43 2 usually ships 1-5 days
032 172-3068 Pin (OBSOLETE) $14.73 1 usually ships 1-5 days
033 172-3069 Cord cover (OBSOLETE) $7.98 1 usually ships 1-5 days
034 172-3070 Panel fastener $8.00 2 usually ships 1-5 days
035 172-3071 Grip surface $10.68 1 usually ships 1-5 days
036 172-3072 20 inch skirt assembly $65.69 1 ships same day
037 172-3073 Shroud assembly (OBSOLETE) $165.00 1 usually ships 16-41 days
038 172-3075 Brush wear indicator light 115v (OBSOLETE) $14.27 1 usually ships 16-41 days
039 172-3076 Pad driver assembly (OBSOLETE) $420.73 1 (Includes items 3, 7, 9 and, 39 - 40) usually ships 16-41 days
040 999-0546 Screw 5/16-18 x 1 socket head alloy plain finish $0.99 1 ships same day
041 999-0024 Washer 5/16 flat stainless steel $1.34 3 ships same day
042 999-0030 Bolt 5/16-18 x 5/8 hex head grade 5 zinc plated $1.14 3 ships same day
043 996-0372 Big mouth pad holder (left hand thread) $15.78 1 ships same day
045 472-5377 GASKET RS 1/8X1/4 E00252 $10.90 3ft usually ships 16-41 days
N/S 172-0249 Bottom bearing $26.13 1 usually ships 16-41 days
N/S 172-0435 Top bearing $38.04 1 usually ships 16-41 days
N/S 172-3057 Armature with bearings (OBSOLETE) $859.00 1 usually ships 1-5 days
N/S 172-3060 Commutator bracket (OBSOLETE) $83.48 1 usually ships 1-5 days
N/S 172-3074 Gasket $25.24 1 usually ships 1-5 days
N/S 172-3107 Carbon brush springs (4) $101.34 1 usually ships 1-5 days
N/S 172-4139 35amp rectifier $12.18 1 usually ships 16-41 days
N/S 172-8247 Brush board assembly $245.00 1 usually ships 1-5 days
N/S 174-4057 Carbon brush $17.52 4 usually ships 4-14 days
N/S 272-8517 Burnishing pad (tan) (pkg of 5) $42.65 1 usually ships 1-5 days
N/S N/A Not available Call for price 1 Polypropelene scrubbing brush usually ships 3-26 days
