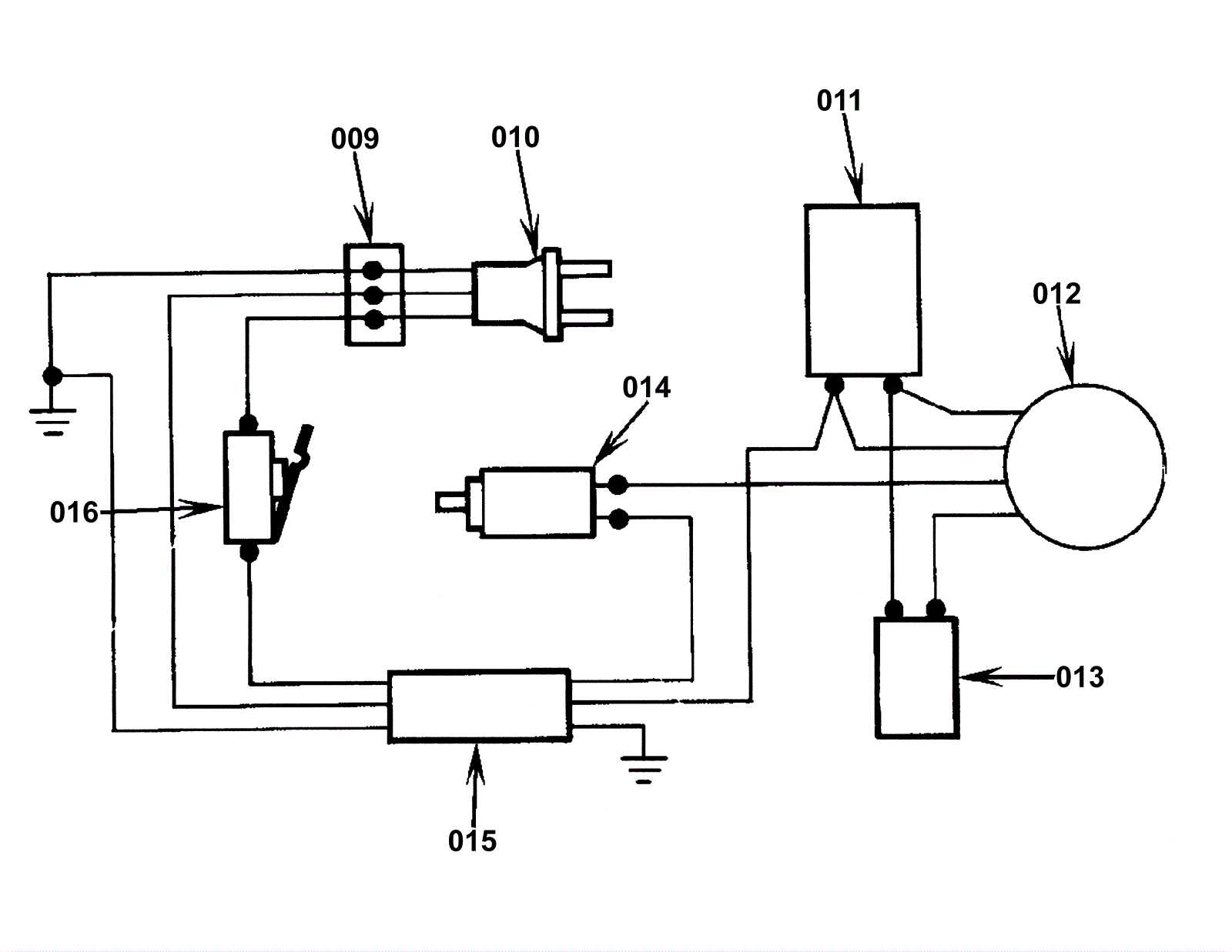

WHIRLAMATIC UHS17 Wiring Diagram 230V

#PartDescriptionPriceReqNotesAvailability
000 172-2043 Sleeve $24.47 1 usually ships 16-41 days
009 172-4094 Terminal block $8.20 1 usually ships 16-41 days
010 N/A Not available Call for price 1 (230v cordset) usually ships 3-26 days
012 181-0937 Squeegee bumper roller kit $12.18 1 ships same day
013 272-9142 24V 8amp battery charger $900.00 1 usually ships 1-5 days
015 172-2160 10amp circuit breaker $68.27 1 usually ships 16-41 days
016 172-4628 Snap switch (OBSOLETE) (SEE NOTE) $38.54 1 usually ships 16-41 days
