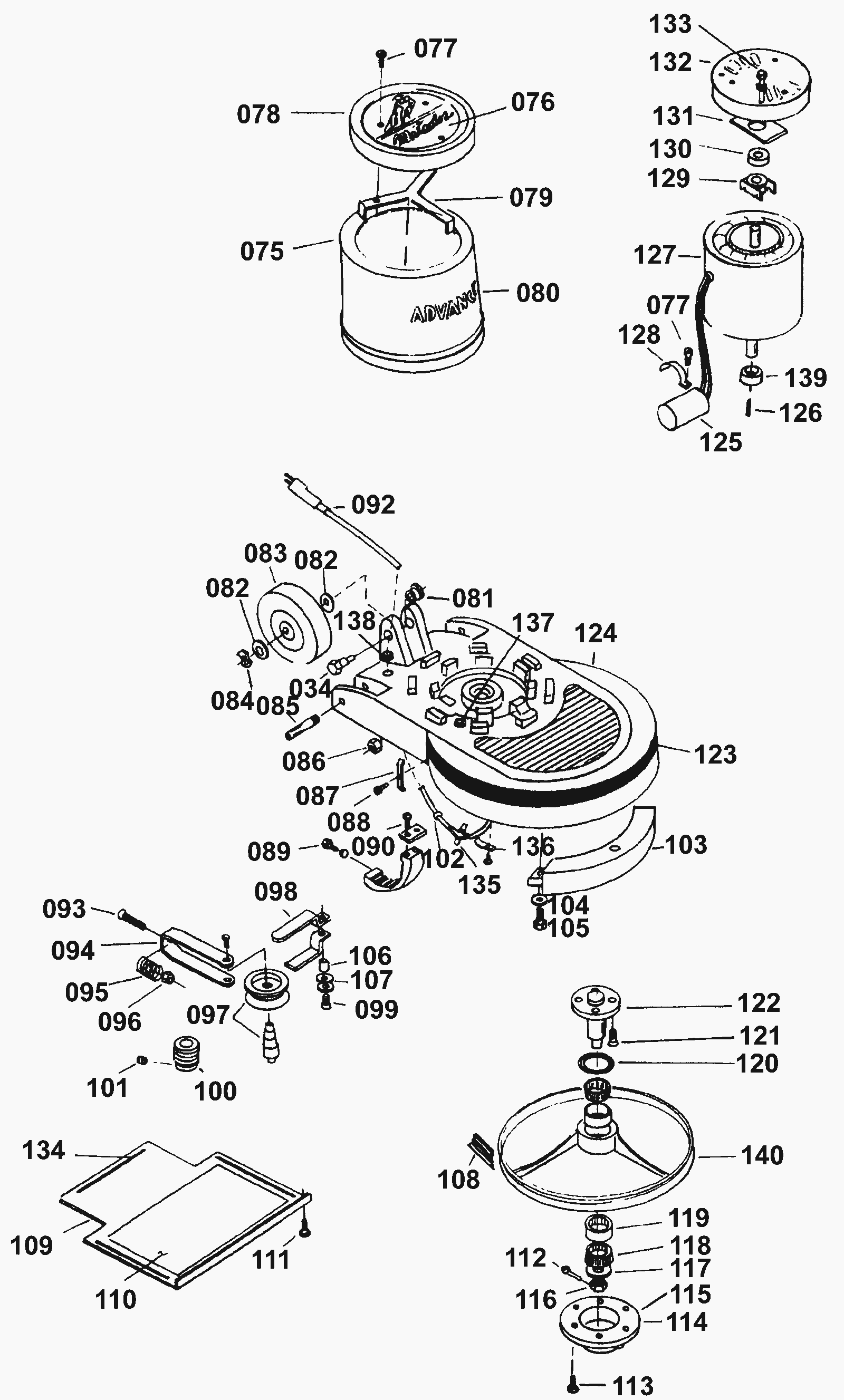

Base Assembly

#PartDescription ReqNotesAvailability
075a 172-4543 Shroud (OBSOLETE) 1
075b 172-4544 Shroud (OBSOLETE) 1
075c 172-4545 Shroud (OBSOLETE) 1
076 172-5025 Matador decal (OBSOLETE) 1
077 999-0371 Screw 10-32 x 1/2 pan head phillips zinc plated 3
079 172-4547 Clamp (OBSOLETE) 1
080 N/A Not available 1 (Not Available) Advance decal
081 172-4037 Flanged bearing (OBSOLETE) 2
082 172-4548 Washer 33/64 x 15/16 x 1/16 flat 4
083 172-4549 5 inch wheel (OBSOLETE) 2
084 172-4550 Washer 33/64 x 1/64 bowed 2
086 999-0170 Nut 3/8-16 hex plain finish 2
087 172-4552 Clamp 2
088 999-0414 Screw 10-32 x 3/4 pan head slotted zinc plated 2
089 999-0081 Screw 1/4-20 x 5/8 pan head slotted zinc 3
090 999-0415 Screw 1/4-20 x 3/4 pan head slotted zinc plated 2
091 172-4553 Ratchet casting 1
092 172-4554 Cord set 1
093 999-0416 Screw 1/4-20 x 3 round head slotted zinc plated 1
094 172-4555 Bracket 1
095 172-0150 Spring 1
096 N/A Not available 1 (not available)
097 172-4556 Idler assembly (OBSOLETE) 1
098 172-4557 Idler bracket 2
099 999-0409 Screw 10-24 x 3/8 pan head slotted zinc plated 2
100a 172-4558 Poly-v sheave (OBSOLETE) 1
100b 172-4559 Sheave Poly-V 230V 1
101 N/A Not available 2 (not available)
102 172-4560 Bushing 1
104 N/A Not available 3 (not available)
105 999-0443 Screw 5/16-18 x 1 1/4 round head slotted zinc plated 3
106 172-0016 Bushing 1
107 999-0123 Washer 1/4 SAE flat zinc plated 2
108 172-4563 Poly-v belt (OBSOLETE) 1
109a 172-4564 17 inch cover 1
109b 172-4565 20 inch cover (OBSOLETE) 1
110 N/A Not available 1 (Advance decal)
111 999-0418 Screw 6-32 x 1/4 pan head slotted zinc plated 4
112 N/A Not available 1 (not available)
113 999-0420 Screw 12-24 x 5/8 flat head slotted zinc plated 6
114 172-4566 Drive cap (silver) (OBSOLETE) 1
115 172-4567 Gasket (OBSOLETE) 1
116 999-0425 Nut 9/16-12 hex slotted plain finish 1
117 172-4569 Washer 19/32 x 1 3/8 x 1/8 flat hardened 1
118 172-4570 Bearing 2
119 172-4571 Bearing cup 2
120 172-4572 Seal shaft 1
121 999-0419 Screw 1/4-20 x 5/8 flat head slotted zinc plated 4
122 172-4573 Stud shaft 1
123a 172-4574 17 inch bumper 1
123b 172-4575 20 inch bumper (OBSOLETE) 1
124a 172-4576 17 inch skirt housing with bumper (OBSOLETE) 1
124b N/A Not available 1 (Not Available) 20 inch skirt housing with bumper
125 172-4578 Capacitor (OBSOLETE) 1
126 172-4579 Square keyway 1
127a 172-4581 1hp super motor for 17 and 20 inch 1
127b 172-4583 1 1/4hp super motor for the 20 inch (OBSOLETE) 1
128 N/A Not available 1 (Clamp)
129 172-4586 Rotating switch (OBSOLETE) 1
130 172-0249 Bottom bearing 1
131 172-4588 Stationary switch (OBSOLETE) 1
132 172-4666 End Bell (OBSOLETE) 1
133a N/A Not available 4 (Not Available) Thru bolt
133b N/A Not available 4 (Not Available) Thru bolt
133c N/A Not available 4 (Not Available) Thru bolt
134 172-4593 Gasket 1/8 x 38 (OBSOLETE) 1
135 172-4513 Wire connector 2
136 172-4594 Cord clamp 1
137 172-4595 Strain relief (OBSOLETE) 1
138 N/A Not available 1 (Strain relief)
139 172-4597 Ball bearing 1
140 172-4598 Pulley assembly 1
