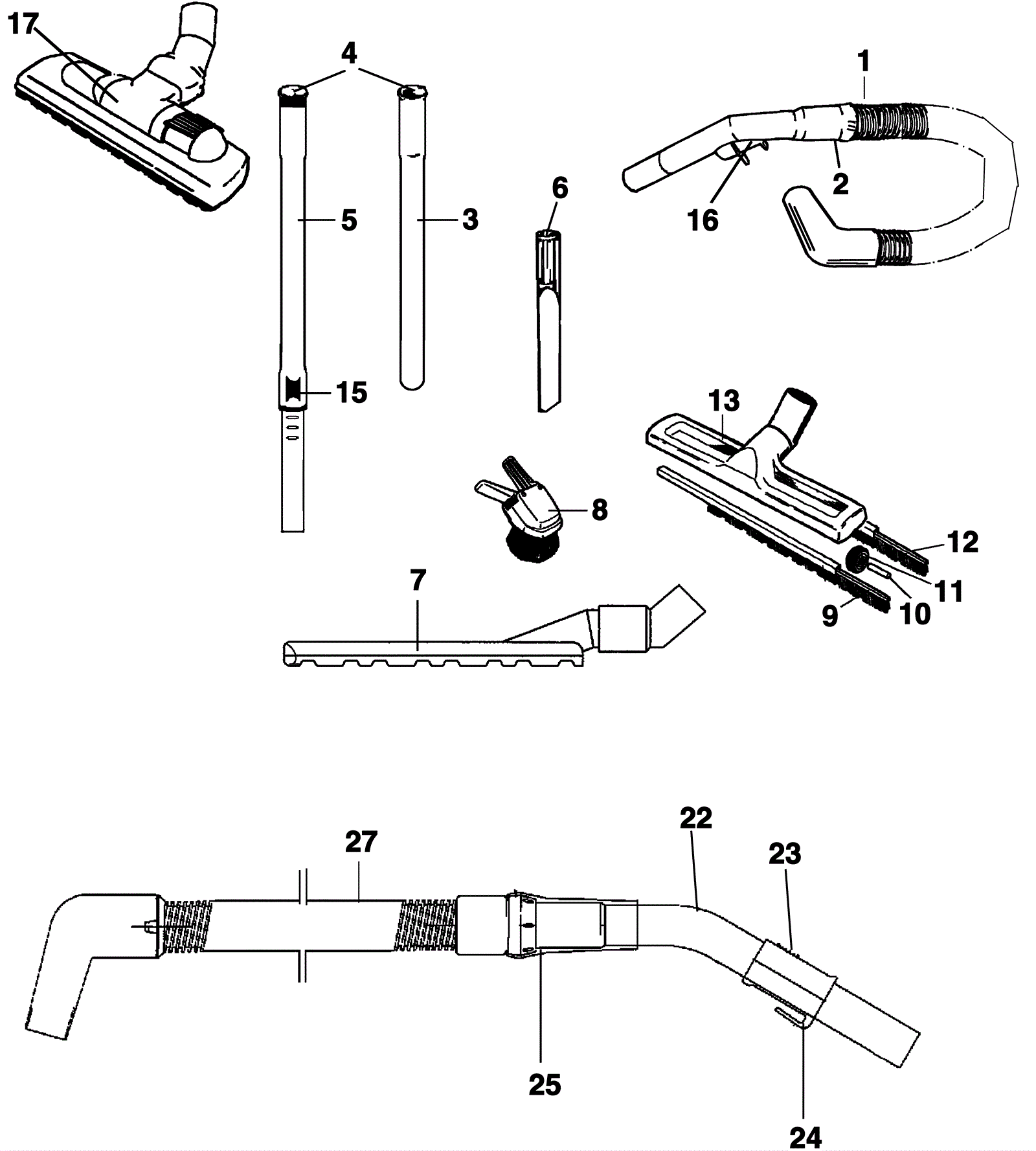

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
181-0542
|
Hose and sleeve |
1 |
|
|
2 |
181-0544
|
Hose handle |
1 |
|
|
3 |
272-3426
|
Extension tube |
2 |
|
|
4 |
N/A
|
Not available |
2 |
(Tube insert) |
|
5 |
181-0548
|
Telescopic extension tube aluminum |
1 |
|
|
6 |
181-1460
|
Plastic crevice nozzle (black) |
1 |
|
|
7 |
272-9571
|
Paddle nozzle |
1 |
|
|
8 |
181-0551
|
Small combination nozzle |
1 |
|
|
9 |
181-0552
|
Front brush strip (OBSOLETE) |
1 |
|
|
10 |
N/A
|
Not available |
2 |
(Shaft) |
|
11 |
N/A
|
Not available |
2 |
(Wheel) |
|
12 |
181-0555
|
Rear brush strip (OBSOLETE) |
1 |
|
|
13 |
181-0556
|
Nozzle top (OBSOLETE) |
1 |
|
|
15 |
181-0558
|
Adjustment knob (OBSOLETE) |
1 |
|
|
16 |
181-0544
|
Hose handle |
1 |
|
|
17 |
181-0560
|
Combination nozzle assembly |
1 |
|
|
22 |
272-9570
|
Aluminum wand bend |
1 |
|
|
20 |
181-0560
|
Combination nozzle assembly |
2 |
|
|
23 |
272-9570
|
Aluminum wand bend |
1 |
|
|
24 |
181-1680
|
Retainer (OBSOLETE) |
1 |
|
|
25 |
N/A
|
Not available |
1 |
(Sleeve) |
|
27 |
272-9569
|
Hose assembly with bent end |
1 |
|
|
N/S |
181-0560
|
Combination nozzle assembly |
1 |
|
|
