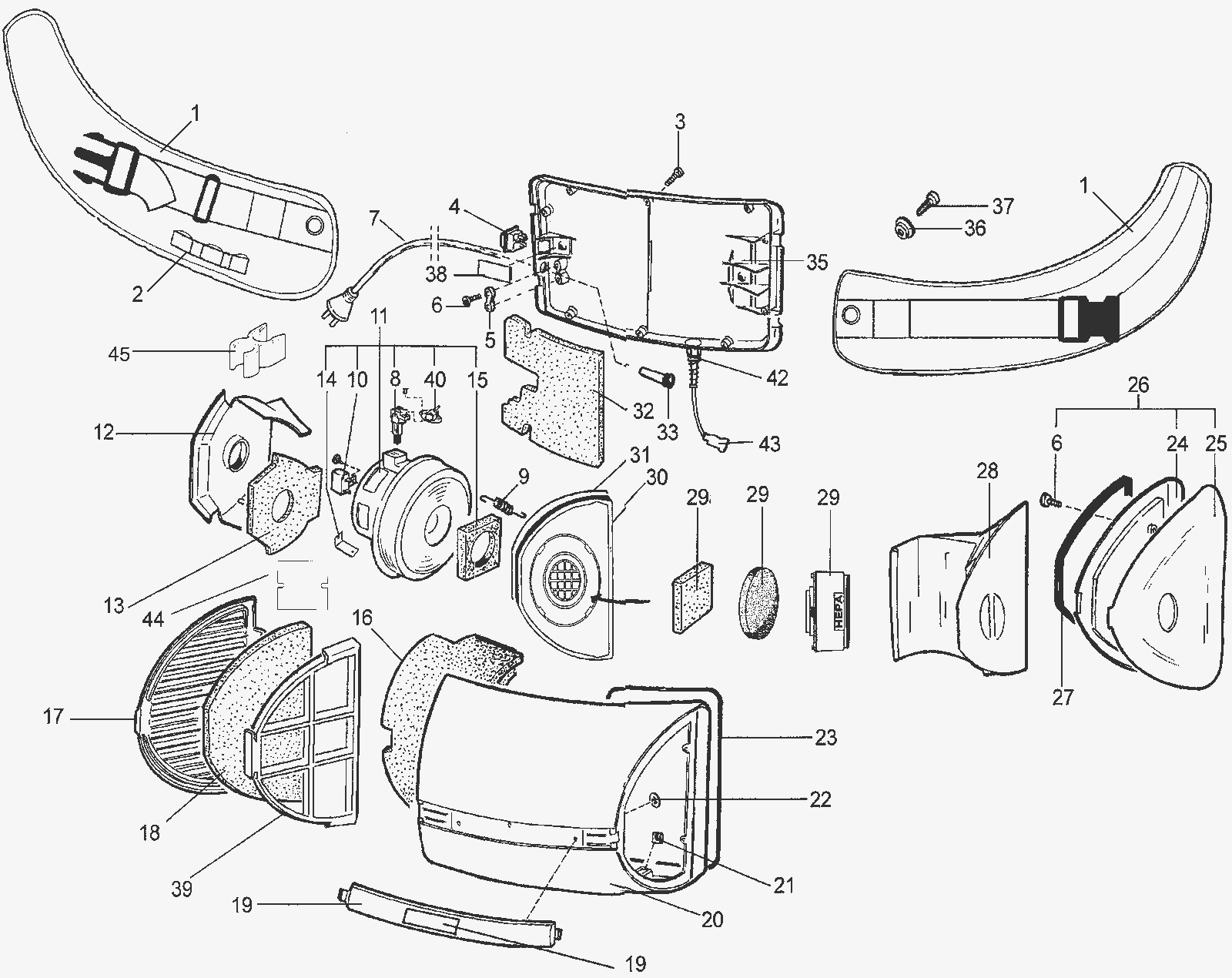

Entire Assembly

#PartDescription ReqNotesAvailability
1 181-0491 Belt 1
2 181-0491 Belt 1
3 181-0493 Screw 10
4 272-8571 Switch 1
6 172-3861 Screw 4
7a 272-8573 18/3 49 foot power cord 1 (OEM)
7b 991-5008 18/3 replacement power cord 50 foot (beige) 1 (NON-OEM)
7c 991-5007 18/3 replacement power cord 50 foot (black) 1 (NON-OEM)
8 N/A Not available 2 (Carbon brush)
9 181-0499 Spring 4
10 181-1641 Capacitor 1
11 181-0500 120V vacuum motor 1 (includes 8, 10, 14, 15, and 40)
12 181-0502 Silencer 1
13 181-0503 Silencer insulation 1
14 N/A Not available 1 (Grounding plate)
15 181-0505 Gasket 1
16 181-0506 Cover insulation 1
17 272-5345 Exhaust cover (grey) 1
18a 272-8504 Exhaust filter (pkg of 3) 1
18b 272-8504 Exhaust filter (pkg of 3) 1
19a 181-0509 Cover strip 1
19b N/A Not available 1 (Decal)
20 181-0510 Housing 1
21 181-0511 C clip 6
22 272-9566 Spring nut 3
23 181-0513 Gasket 1
24 272-5348 Suction cover assembly (grey) (OBSOLETE) 1
25 272-5348 Suction cover assembly (grey) (OBSOLETE) 1
26 272-5348 Suction cover assembly (grey) (OBSOLETE) 1 (includes 6, 24, 25, and 27)
27 181-0517 Gasket 1
28a 181-0518 Dust bag (pkg of 5) 1 (OEM)
28b 181-0519 Dust bag high filtration (pkg of 10) (OBSOLETE) 1 (OEM)
28c 991-9030 Paper vacuum bags (pkg of 10 with 2 filters) 1 (NON-OEM)
29a 181-0521 Pre-filter 1 (old style)
29b 181-0521 Pre-filter 1 (new style)
29c 181-1693 HEPA filter 1
29d 181-0523 Gasket 1
30 N/A Not available 1 (Partition wall)
31 181-0525 Gasket 1
32 181-0526 Back insulation 1
33 181-0527 Protection sleeve kit (OBSOLETE) 1
35 181-0528 Back part (blue) 1
36 181-0536 Washer 2
37a 181-0531 Belt screw (OBSOLETE) 2
37b 181-0532 Screw 2
38 181-0533 Insulation 1
39 181-0534 Filter holder 1
40 272-9568 Thermo protector 1
42 181-0537 Anti strain protection power outlet (OBSOLETE) 1
43 181-0538 Outlet for power nozzle (OBSOLETE) 1
44 N/A Not available 1 (Insulating plate)
45 272-5351 Cord retainer clip (OBSOLETE) 1
