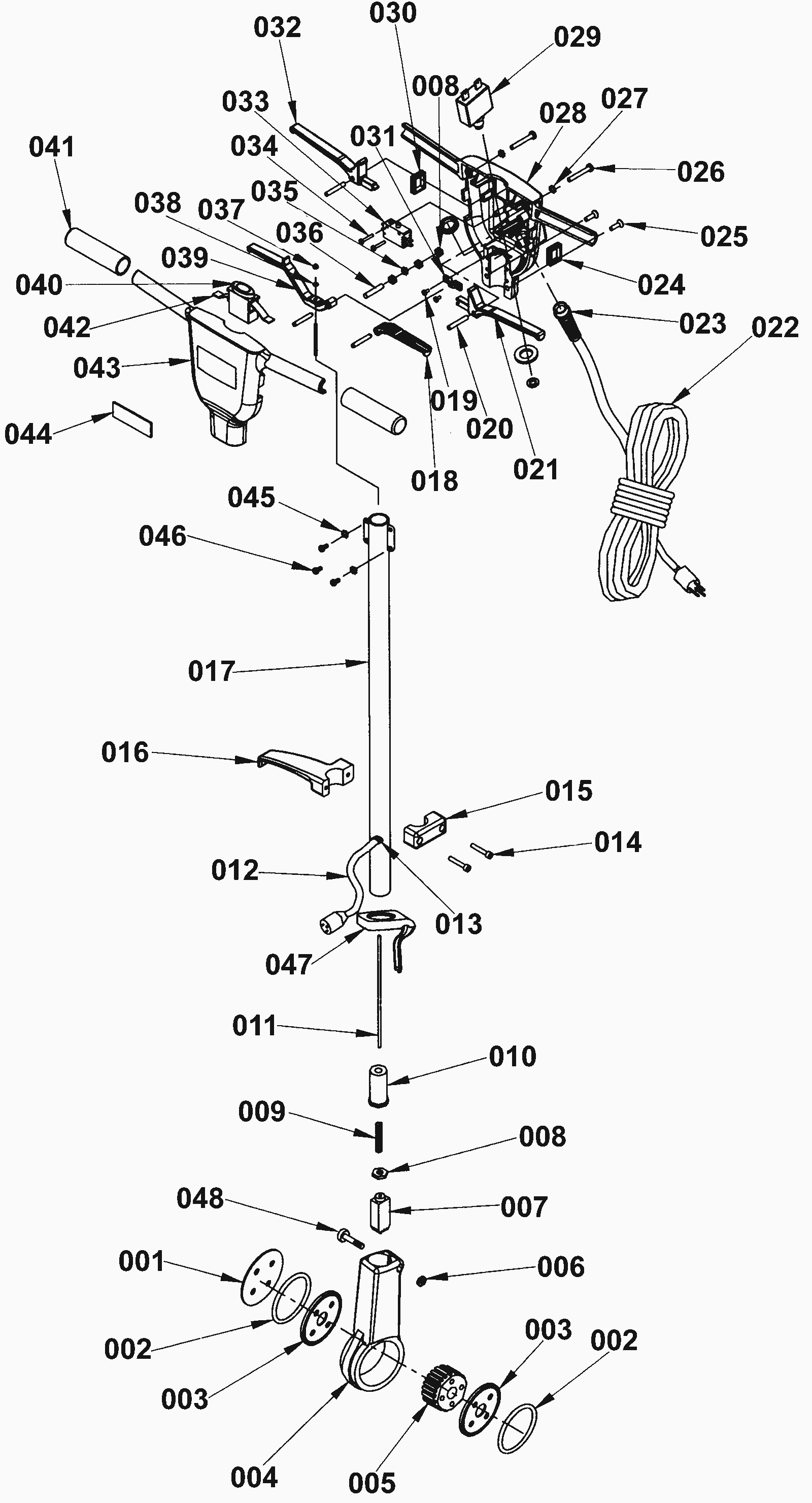

Handle Assembly 170HD and 200HD after SN1737262

#PartDescription ReqNotesAvailability
001 172-2944 Pivot handle kit (OBSOLETE) 1
002 172-2944 Pivot handle kit (OBSOLETE) 2
003 172-2944 Pivot handle kit (OBSOLETE) 2
004 172-2944 Pivot handle kit (OBSOLETE) 1
005a 172-2944 Pivot handle kit (OBSOLETE) 1
005b 172-2945 Ratchet replacement kit (OBSOLETE) 1
006a 172-2944 Pivot handle kit (OBSOLETE) 1
006b 172-2924 Hardware kit 1
007a 172-2944 Pivot handle kit (OBSOLETE) 1
007b 172-2945 Ratchet replacement kit (OBSOLETE) 1
008a 272-5286 Handle hardware 4
008b 172-2924 Hardware kit 4
009 172-2946 Leveling spring 1
010 172-2947 Retainer (OBSOLETE) 1
011 172-2948 Leveling rod (OBSOLETE) 1
012a 172-2926 Handle cord 1
012b 172-2943 Plug protector - large female (OBSOLETE) 1
013 172-2927 Grommet (OBSOLETE) 1
014a 172-2949 Cord hook kit (OBSOLETE) 2
014b 172-2924 Hardware kit 2
015 172-2949 Cord hook kit (OBSOLETE) 1
016 172-2949 Cord hook kit (OBSOLETE) 1
017 172-2950 Tube (OBSOLETE) 1
018 272-5285 Trigger Kit (OBSOLETE) 1
019a 272-5286 Handle hardware 2
019b 172-2924 Hardware kit 2
020 272-5285 Trigger Kit (OBSOLETE) 3
021 272-5285 Trigger Kit (OBSOLETE) 1
022a 172-2932 50 foot power supply cord 1
022b 991-5005 14/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
023 172-2933 Strain relief (OBSOLETE) 1
024 272-5286 Handle hardware 1
025a 272-5286 Handle hardware 2
025b 172-2924 Hardware kit 2
026a 272-5286 Handle hardware 2
026b 172-2924 Hardware kit 2
027 272-5286 Handle hardware 2
028 272-5284 Front rear cover kit (OBSOLETE) 1
029 991-1623 12amp circuit breaker 1
030 272-5286 Handle hardware 1
031 272-5286 Handle hardware 1
032 272-5285 Trigger Kit (OBSOLETE) 1
033 272-8640 Switch 1
034a 272-5286 Handle hardware 2
034b 172-2924 Hardware kit 2
035 272-5286 Handle hardware 1
036 272-5286 Handle hardware 1
037a 272-5286 Handle hardware 1
037b 172-2924 Hardware kit 1
038a 272-5286 Handle hardware 1
038b 172-2924 Hardware kit 1
039 272-5285 Trigger Kit (OBSOLETE) 1
040 272-5286 Handle hardware 1
041 272-5284 Front rear cover kit (OBSOLETE) 2
042 272-5286 Handle hardware 1
043 272-5284 Front rear cover kit (OBSOLETE) 1
044a 172-2942 Advance decal (OBSOLETE) 1
044b 272-5284 Front rear cover kit (OBSOLETE) 1
045 272-5286 Handle hardware 4
046a 272-5286 Handle hardware 4
046b 172-2924 Hardware kit 4
047 172-2944 Pivot handle kit (OBSOLETE) 1
048a 172-2944 Pivot handle kit (OBSOLETE) 1
048b 172-2924 Hardware kit 1
