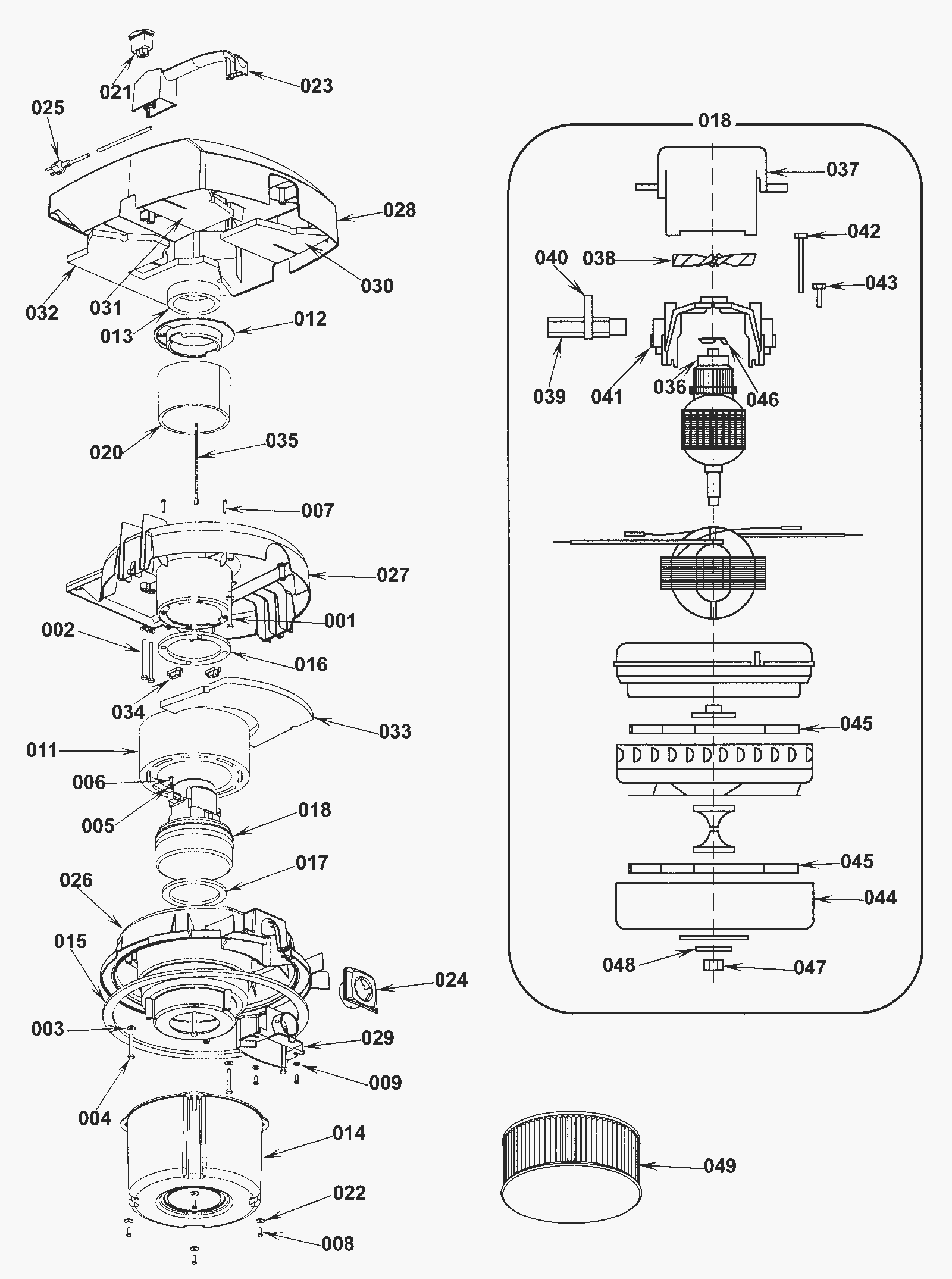

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
272-5246
|
Bolt 1/4-20 X 2 3/4 hex head |
1 |
|
|
002 |
999-0607
|
Screw 1/4-20 x 3 carriage head stainless steel |
2 |
|
|
003 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
7 |
|
|
004 |
272-5247
|
Screw 1/4-20 X 1 3/4 hex lock stainless steel |
4 |
|
|
005 |
999-0053
|
Washer #10 split lock plain finish |
1 |
|
|
006 |
999-0793
|
Screw 10-24 x 3/8 hex washer slot thread cutting zinc |
1 |
|
|
007 |
172-6243
|
Screw 10-24 x 7/8 hex thread form |
2 |
|
|
008 |
999-1369
|
Screw 10-24 x 1/2 hex head thread cutting stainless steel |
6 |
|
|
009 |
999-0998
|
Washer #10 flat stainless steel |
2 |
|
|
011 |
272-5076
|
Outlet air silencer |
1 |
|
|
012 |
272-5077
|
Inlet seal cover (OBSOLETE) |
1 |
|
|
013 |
272-5078
|
Foam seal |
1 |
|
|
015 |
272-5081
|
Cover gasket |
1 |
|
|
016 |
272-5082
|
Motor gasket (OBSOLETE) |
1 |
|
|
017 |
272-5083
|
Motor face gasket (OBSOLETE) |
1 |
|
|
018a |
N/A
|
Not available |
1 |
|
|
018b |
272-5248
|
Motor 120V Vacuum |
1 |
|
|
020 |
272-5106
|
Sound filter |
1 |
|
|
021 |
272-5087
|
Rocker DPST switch |
1 |
|
|
022 |
272-5088
|
Float Cover Retainer |
4 |
|
|
023 |
N/A
|
Not available |
1 |
|
|
024 |
272-5080
|
Hose inlet coupling |
1 |
|
|
025 |
272-5089
|
Cord set (120V) |
1 |
|
|
026 |
272-5091
|
Inner cover assembly (OBSOLETE) |
1 |
|
|
027 |
272-5092
|
Middle cover assembly |
1 |
|
|
028 |
N/A
|
Not available |
2 |
|
|
029 |
272-5086
|
Inlet deflector (OBSOLETE) |
1 |
|
|
030 |
N/A
|
Not available |
1 |
|
|
031 |
N/A
|
Not available |
1 |
Acoustical cooling air foam |
|
032 |
N/A
|
Not available |
2 |
|
|
033 |
N/A
|
Not available |
1 |
|
|
034 |
272-5073
|
Motor grommet (OBSOLETE) |
1 |
|
|
035 |
N/A
|
Not available |
1 |
(Wire assembly) |
|
036 |
272-5105
|
Ball bearing (OBSOLETE) |
1 |
|
|
037 |
272-5094
|
By-Pass cap (OBSOLETE) |
1 |
|
|
038 |
N/A
|
Not available |
1 |
|
|
039 |
N/A
|
Not available |
2 |
|
|
040 |
N/A
|
Not available |
1 |
|
|
041 |
272-5100
|
Brush end bracket (OBSOLETE) |
2 |
|
|
042 |
N/A
|
Not available |
2 |
|
|
043 |
N/A
|
Not available |
1 |
|
|
044 |
272-5248
|
Motor 120V Vacuum |
2 |
|
|
045 |
272-5103
|
Impeller (OBSOLETE) |
1 |
|
|
046 |
N/A
|
Not available |
1 |
|
|
047 |
N/A
|
Not available |
1 |
|
|
048 |
N/A
|
Not available |
1 |
|
|
049 |
272-5156
|
Dry pick up filter (OBSOLETE) |
1 |
|
|
051b |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
N/S |
272-3503
|
Handle kit (OBSOLETE) |
1 |
|
|
N/S |
272-3500
|
Vac motor replacement kit (OBSOLETE) |
1 |
|
|
N/S |
272-3502
|
Motorhead (OBSOLETE) |
1 |
|
|
N/S |
272-3507
|
Float kit (OBSOLETE) |
1 |
|
|
N/S |
272-3505
|
Deflector assembly kit (OBSOLETE) |
1 |
|
|
N/S |
272-5087
|
Rocker DPST switch |
1 |
|
|
N/S |
272-3504
|
Cover gasket kit (OBSOLETE) |
1 |
|
|
N/S |
272-3506
|
Dry filter kit (OBSOLETE) |
1 |
|
|
