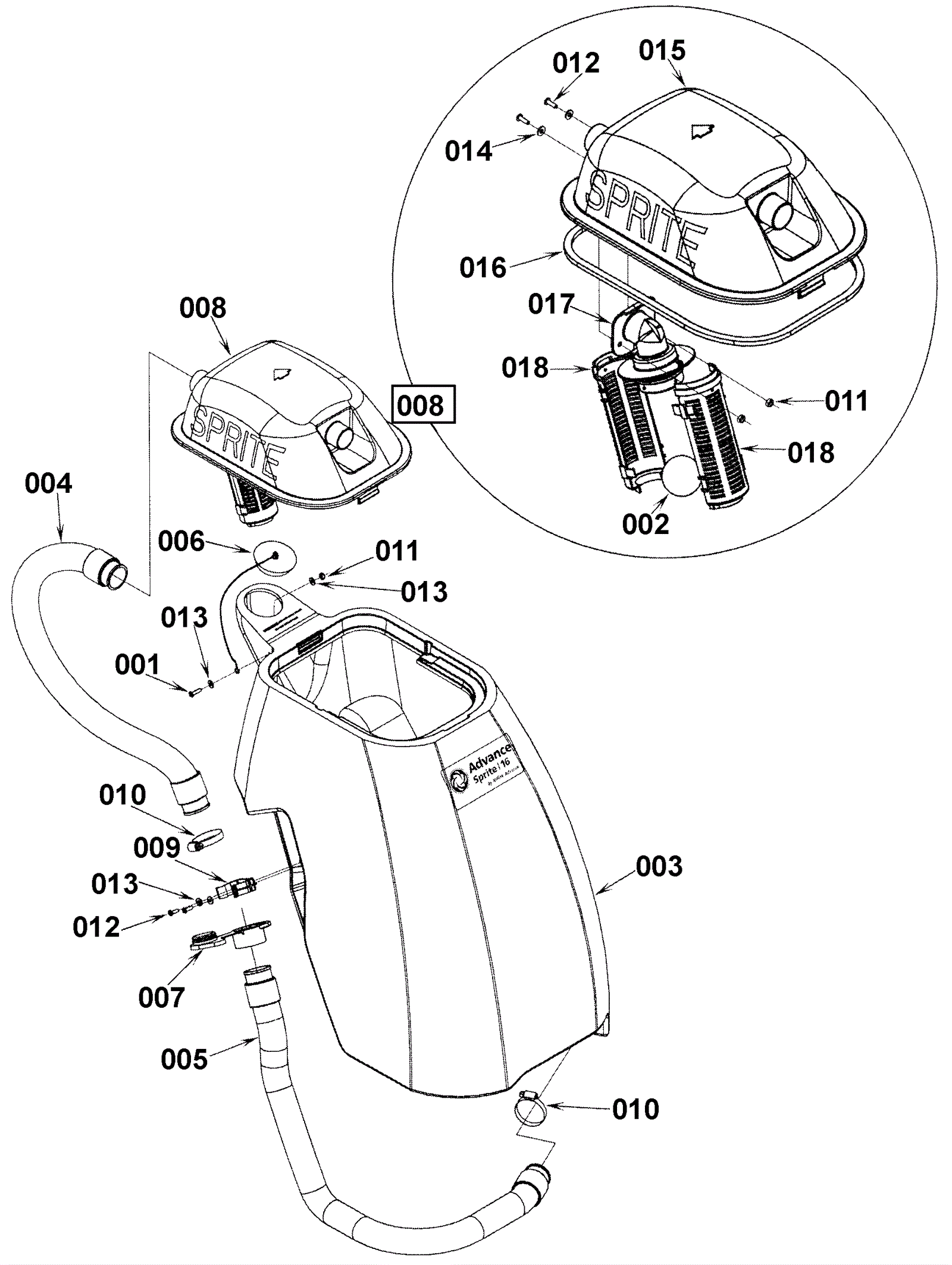

| # | Part | Description |
Req | Notes | Availability |
|---|
001 |
999-0705
|
Screw 10-24 x 3/4 pan head phillips stainless steel |
1 |
|
|
002 |
172-0192
|
Float ball |
1 |
|
|
003a |
272-2828
|
12 gallon tank assembly (OBSOLETE) |
1 |
|
|
003b |
N/A
|
Not available |
1 |
(16 gallon tank assembly) |
|
004 |
172-8386
|
30 inch hose assembly |
1 |
|
|
005 |
172-0456
|
34 inch hose assembly |
1 |
|
|
006 |
172-8387
|
Stopper |
1 |
|
|
007 |
272-1731
|
Drain hose plug 1.5 inch dark gray |
1 |
|
|
008 |
272-0375
|
Tank lid assembly (gray) (OBSOLETE) |
1 |
(includes 002, 011, 012, 014 thru 018) |
|
009 |
272-1159
|
Plastic clamp |
1 |
|
|
010 |
997-2000
|
Hose clamp |
2 |
|
|
011 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
3 |
|
|
012 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
4 |
|
|
013 |
999-0006
|
Washer 3/16 flat zinc plated |
4 |
|
|
014 |
172-2311
|
Washer 9/16 |
2 |
|
|
015 |
272-2831
|
Tank lid assembly (gray) (OBSOLETE) |
1 |
|
|
016 |
172-0455
|
Tank lid gasket |
1 |
|
|
017 |
272-2835
|
Elbow float |
1 |
|
|
018 |
172-0517
|
Float cage half (2 required for full float cage) |
2 |
|
|
