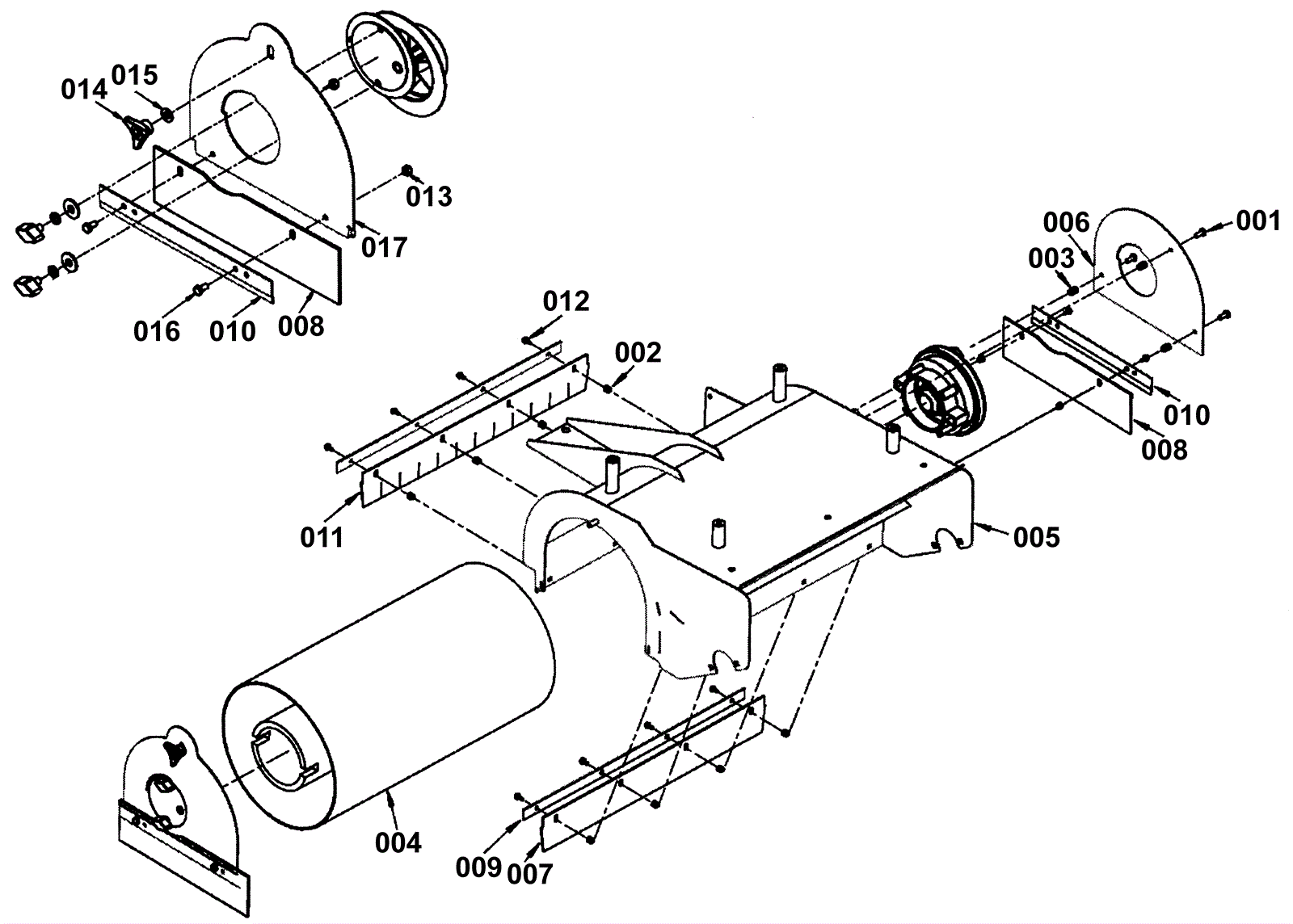

Terra 128 Main Broom Assembly

#PartDescriptionPriceReqNotesAvailability
001 999-1257 Screw M6-1 x 16mm pan head Phillips $1.47 3 ships same day
002 172-3653 Main screw (OBSOLETE) $5.94 10 usually ships 1-5 days
003 172-3654 Insert M6 $12.31 3 usually ships 1-5 days
004 172-3655 Main broom polypropylene (OBSOLETE) $150.88 1 usually ships 1-5 days
005 172-3656 Main broom support $443.28 1 usually ships 17-28 days
006 172-3657 Right hub plate $39.19 1 usually ships 1-5 days
007 172-3658 Non-marking rear skirt (OBSOLETE) $27.78 1 usually ships 17-28 days
008 172-3659 Side non-marking skirt $15.48 2 usually ships 17-28 days
009 172-3660 Skirt plate (OBSOLETE) $8.91 2 usually ships 1-5 days
010 172-3661 Side skirt plate (OBSOLETE) $22.00 2 usually ships 17-28 days
011 172-3662 Non-marking front skirt (OBSOLETE) $26.58 1 usually ships 17-28 days
012 272-8385 Screw hex head 3 9/10 X 13 $34.10 10 usually ships 1-5 days
013 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
014 172-3664 Knob M8 $13.76 1 usually ships 17-28 days
015 999-1267 Washer M8 flat zinc $0.99 1 ships same day
016 172-3665 Screw 6 x 12 hex head $11.57 2 usually ships 17-28 days
017 172-3666 Hub plate $52.47 1 usually ships 1-5 days
